Heating Element on Oven: Bake vs Broil Elements Explained

Thermal Fundamentals: Bake vs. Broil

Every electric oven relies on a circuit where electrical energy is converted into heat. However, the application of that heat defines the cooking method. The Выпекать элемент is designed for ambient heat saturation. Located at the bottom of the cavity, often hidden beneath the floor in modern “hidden bake” models, it heats the air which then circulates through natural or forced convection. This ensures the internal temperature of the food rises uniformly.

Conversely, the Элемент гриля is the powerhouse of the oven. It is engineered for short-duration, high-intensity output. Positioned at the roof of the oven, it emits infrared radiation. This energy travels in waves directly to the surface of the food, causing rapid browning and searing. Because of this high-intensity requirement, broil elements often feature a higher wattage density than their bake counterparts.

Engineering Specifications and Material Grades

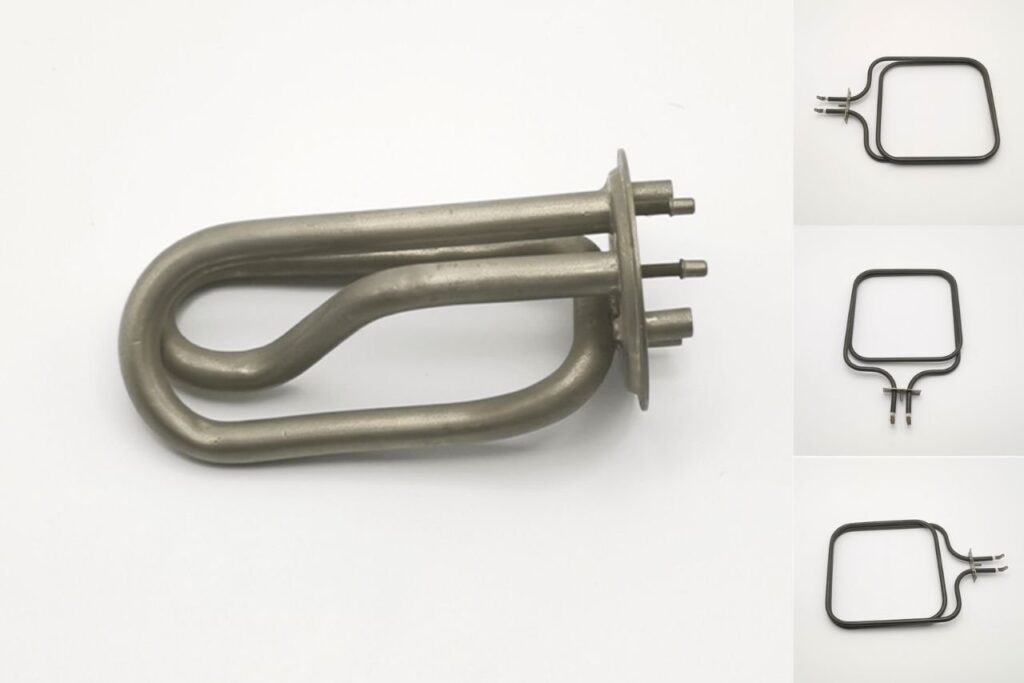

A high-quality Нагревательный элемент is a marvel of material science. At a specialized Завод по производству нагревательных элементов like Camewould, the manufacturing process begins with a precision-wound Nickel-Chromium (NiCr 80/20) coil. This coil provides the electrical resistance necessary to generate heat.

To ensure safety and longevity, the coil is centered within a metal tube often Incoloy 800 или Stainless Steel 321 and surrounded by Magnesium Oxide (MgO) powder. The MgO acts as a critical dielectric insulator, allowing heat to pass to the outer sheath while preventing the electricity from grounding out. For broil elements, which face extreme temperatures, the density of this MgO must be tightly controlled to prevent “hot spots” that can cause the element to burst or “pitting” of the sheath.

Die Casting Solutions in Modern Ovens

Traditional “exposed” heating coils are increasingly being replaced or supplemented by Решения по нагреву при литье под давлением. In this configuration, the tubular element is embedded within a cast aluminum or iron plate. This design offers several advantages:

• Thermal Inertia: The metal plate retains heat longer, leading to more stable oven temperatures and reduced cycling of the electrical relay.
• Protection: The heating element is shielded from corrosive food acids and mechanical damage during cleaning.
• Uniformity: The die-cast surface acts as a heat spreader, eliminating the uneven “ring” of heat often seen with traditional bake elements.

Diagnosis: How to Identify a Failing Element

When your oven is not heating correctly, a systematic diagnostic approach is required. For the bake element, look for cold spots where the coil does not glow red during preheating. For the broil element, common failure signs include visible blisters on the sheath or a complete lack of glow when the broil setting is engaged.

Technicians use Continuity Testing with a digital multimeter to confirm failure. A healthy bake element typically shows a resistance of 15 C30 ohms, while a broil element may range from 10 C20 ohms. If the reading is infinite (O.L.), the internal NiCr coil has snapped. Replacing these components with OEM-spec parts from a certified Производитель нагревательных элементов ensures that the appliance’s safety cut-offs and thermostats remain calibrated.
