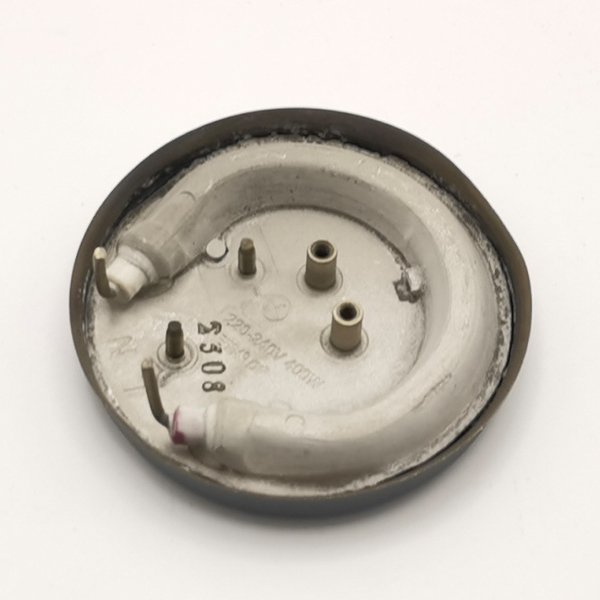

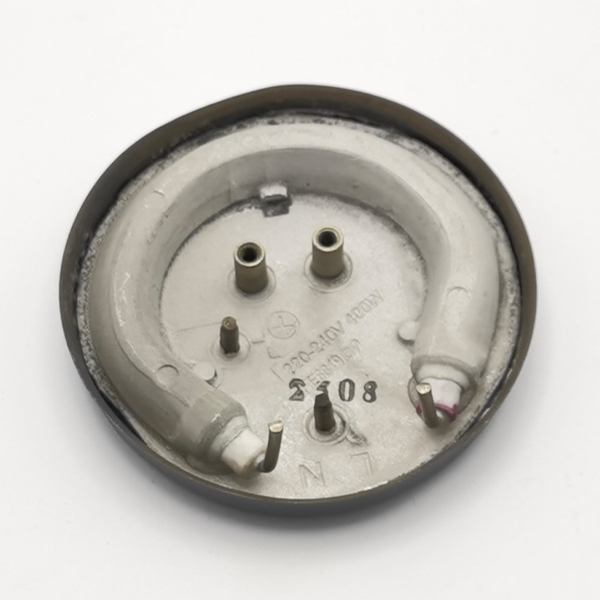

Bottle Warmer Heating Element——Intelligent Constant Temperature Baby Bottle Heating Solution
The embedded heating element designed specifically for baby bottles is made of food-grade 316L stainless steel + nano-ceramic coating, suitable for a power range of 30W-800W, with a temperature resistance of 120℃ (short time), and a heat distribution uniformity of ΔT≤2℃; it integrates a PID dynamic temperature control algorithm (±0.5℃ accuracy), supports anti-dry burning protection (automatic power off after ＞15 seconds) and pulse steam self-cleaning technology (milk scale removal rate ＞99%), and has passed CE/LFGB/RoHS certification, suitable for home, nursery and medical scenarios.
MOQ：1000PCS
Lead time：25days
Factory location: Zhongshan, Guangdong, China
Home appliances: bottle sterilizer, constant temperature milk mixer, portable milk heating cup, coffee milk foam heating pad.
Industrial equipment: laboratory constant temperature water bath device, medical equipment constant temperature disinfection system, dairy product processing pretreatment equipment.
Material and structure:
304 stainless steel substrate (optional): corrosion-resistant, rust-proof, surface polished (easy to clean), suitable for high-temperature resistant bottles.
Power range:
Conventional model: 300W–800W (suitable for 200ml–500ml bottles, fast heating without boiling).
Portable model: 200W (USB-C power supply, suitable for car/travel, 6 hours of battery life).
Temperature control:
PID algorithm: temperature control accuracy ±0.5°C, support multi-stage temperature control (such as pasteurization 40°C→60°C→85°C).
Preset mode: breast milk heating (40°C), brewing milk powder (70°C), yogurt fermentation (42°C).
Dimensions:
Shape: round/square (suitable for the bottom of a standard bottle, diameter 5–8cm).
Heating area: 6cm–8cm in diameter (covering the bottom of the bottle).
Thickness: 1.5mm–3mm (ultra-thin design, portable for desktop/car).
Safety protection: Anti-dry burning: Automatically cut off the power when the temperature is greater than the set value of 10°C (such as stopping heating after the water in the bottle is boiled dry).
Overflow prevention design: Automatically reduce the power when the liquid boils to avoid milk overflow.
Tip-off: Automatically cut off the power when the tilt angle is greater than 15° (suitable for car use).
Lifespan and reliability: Conventional models: 5,000–8,000 hours (calculated based on 3 uses per day).
Precise temperature control: Multi-stage programming: Supports pasteurization (62°C/30 minutes), breast milk storage (4°C refrigeration), and milk preparation (70°C).
Real-time display: The LED screen displays the current temperature and mode, suitable for night feeding without turning on the light.
Safety and anti-scalding:
Thermal insulation layer: surface temperature ≤ 60°C to avoid accidental scalding (especially suitable for families with children).
Double insurance: temperature fuse + automatic power off, in line with the GB 4706.1 household appliance safety standard.
Efficient heating:
300W model: heats 200ml of cold water to 40°C in 3 minutes without overheating risk.
Pasteurization mode: 60°C constant temperature for 10 minutes, kills harmful bacteria and retains nutrients.
Easy to clean and maintain:
Removable design: The heating plate is separated from the base and supports dishwasher cleaning.
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
