Kenmore electric dryers often fail to heat because the heater coil opens, a thermal safety device opens due to overheating, or airflow is restricted. A beginner can replace the heating element safely by following a strict power-off workflow, documenting wiring, removing the heater housing correctly, and validating airflow before restoring heat.
- Before you start (tools, parts, and what to write down)
- Safety steps (no shortcuts)
- Confirm the heating element is actually the problem
- Where the heating element is located (common Kenmore layouts)
- Step-by-step replacement walkthrough
- Airflow cleaning (the step that prevents repeat failure)
- Post-repair test checklist
- Buying the right element (avoid wrong-part returns)
- FAQ (8)
- 参考文献 & 外部リンク
- Nut driver/socket set (for sheet-metal screws)
- Phillips and flat screwdrivers
- ラジオペンチ（スプーン端子用）
- Vacuum + brush (lint removal)
- マルチメーター（導通/抵抗測定）
- Phone camera (wiring photos)
- Correct replacement heater / 加熱エレメント アセンブリ（機種固有）
- サーモヒューズ（断線時）
- 高限界サーモスタット / 作動サーモスタット（故障時）
- New high-temp spade terminals or pigtail harness (if connectors are burnt)
A heating element is an assembly (conductive alloy + insulation/support + terminals), not wire alone. TUTCO explains this component-level view and why integration affects heat transfer and reliability. 参考.
- Model number from the dryer label (door frame area is common).
- Whether the dryer is electric or gas (heating element replacement usually applies to electric).
- Symptoms: no heat, heats then stops, long dry times, etc.
Unplug the dryer or switch off the breaker before removing any panels. Verify power is off before touching terminals. Heating circuits draw high current and can cause severe shock or fire.
- Disconnect power (unplug or breaker off).
- Confirm the dryer is not energized (meter check if available).
- Allow the unit to cool if recently used.
- Work with gloves dryer panels have sharp edges.
Whirlpool s heating element replacement steps (water heater context) emphasize verifying the replacement element against the data plate and not restoring power until safe conditions exist (they warn that applying power prematurely can burn out the element). While a dryer is a different appliance, the discipline verify ratings, tight connections, そして do not energize under unsafe conditions is the right mindset for dryer heater repairs. ソース.
Beginners often replace the element first because it is the most visible heat part, but Kenmore no-heat failures are frequently caused by airflow restriction or an open thermal fuse. The fastest correct approach is a short set of checks.
This is a practical troubleshooting priority to reduce wrong-part purchases and repeat failures.
| 症状 | 最も一般的な原因 | 簡易チェック | Beginner-safe next step |
|---|---|---|---|
| Tumbles, absolutely no heat | Open thermal fuse or open element | Continuity checks | Replace failed part; correct airflow |
| 短時間発熱後に停止する | Overheating from restricted airflow | Outdoor vent airflow check | Clean venting before replacing more parts |
| 乾燥時間が長い | Vent restriction | Vent inspection | Vent cleaning / shorten duct run |
| 背面付近で焦げ臭い | 端子の緩み／焼損 | 目視検査 | Replace terminals/pigtail and tighten |
Table 1 Symptom-to-cause map for beginner triage.
Kenmore dryers were produced across different platforms, so access can differ. In many electric models, the element sits inside a metal heater housing in the airflow path, commonly accessible from the rear panel. Some designs require front/lower access.
- Metal box/canister with heavy-gauge heater wires on spade terminals
- Thermostat(s) and/or thermal fuse mounted on or near the housing
- Located near the blower and exhaust ducting path
- Remove the rear panel screws (common) or the front lower access panel (model dependent).
- Set screws aside in a cup so none are lost.
Take clear photos of every connector on the heater housing, thermal fuse, and thermostats. Beginners should not rely on memory.
- Pull on the connector, not the wire insulation.
- If a spade is stubborn, wiggle gently rather than yanking.
- Remove mounting screws holding the heater housing or retainer cover.
- Slide out the element assembly (some designs) or remove the housing as a unit.
Use a multimeter: an open reading suggests the coil is broken. If the element tests good, the no-heat problem is likely elsewhere (thermal fuse, thermostat, wiring, or power supply).
- Ensure the element sits correctly and does not touch the housing where it should not.
- Reinstall screws; avoid bending thin housings.
- Reconnect wires exactly as documented; ensure connectors are tight.
Dryer heaters are cooled by moving air. When venting is restricted, heater temperature rises and safety devices open more often, and the element can fail early. Heater engineering sources emphasize that operating conditions and environment strongly influence heater life. 参考.
- Clean the lint screen and the lint screen housing.
- Vacuum lint around the blower and base.
- Inspect and clean the vent duct to the exterior termination.
- Replace crushed or excessively long flexible ducting.
- Confirm all covers/panels are reinstalled.
- Reconnect power.
- 10～15分の時間指定加熱サイクルを実行する。.
- 屋外排気口で強い気流を確認する。.
- Stop the cycle and check for abnormal hot/burning smell near terminals.
- Match by exact model number.
- Confirm correct rating/fit; Whirlpool s guidance in other contexts explicitly says to verify voltage/wattage before installing a new element. 参考.
- Do not substitute unrelated heaters. For example, Hudson Reed s 1000W plug-in heating element is designed for radiators/towel warmers and lists IP67 and UL approval useful specs, but not a dryer heater replacement. 参考.

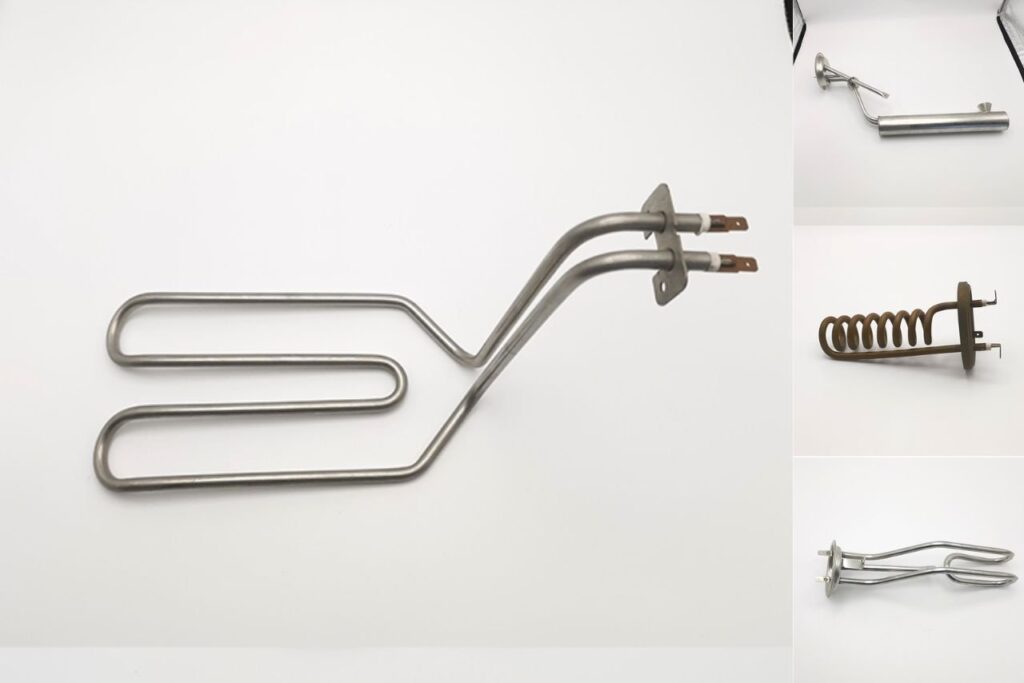

For broader heater families used in appliances and industrial products, Jinzhong lists categories such as 加熱管, ヒーティングプレート, and integrated ダイカスト加熱ソリューション. Jinzhong also positions itself as a 発熱体メーカー with 30+ years experience and scaled capacity.
Heating element replacement applies to 電気 dryers. Gas dryers use an igniter and gas burner system instead of an electric heater element.
Yes. The motor circuit can run while the heater circuit is open due to a blown thermal fuse, failed thermostat, open element, or power supply issue.
Use the exact model number from the label and match the heater assembly by verified compatibility, not appearance.
No. Test it. If it is open, replace it and correct airflow restrictions that likely caused overheating.
The most common causes are restricted airflow, loose/burnt terminals, or incorrect element fit/rating.
It means confirming the replacement part matches the appliance s electrical requirements. Whirlpool s element replacement guidance explicitly instructs verifying new elements against the data plate voltage and wattage. 参考.
It can happen after years of heat cycling or if a connector loosens. Burnt connectors should be replaced to prevent repeat failures.
If wiring is melted/charred, if electrical testing is unfamiliar, or if the dryer shows repeated overheating after vent cleaning, a qualified technician is recommended.
- TUTCO-Farnam heating element definition (conductive + insulating assembly), materials and life factors: https://tutco.com/conductive/heating-elements
- Whirlpool support element replacement principles (verify voltage/wattage; tight connections; do not energize under unsafe conditions): https://www.whirlpoolwaterheaters.com/support/help/element-was-out-of-range/24
- Hudson Reed example of application-specific heating element specs (1000W, IP67, UL): https://usa.hudsonreed.com/1000-plug-in-watt-electric-heating-element-76309
- Jinzhong (JINZHO) manufacturer and product categories for internal anchors: https://jinzho.com/, 加熱エレメント, ダイカスト加熱ソリューション
This guide is original and uses sources for definitions, safety principles, and published specifications.
Disclaimer: This is educational content. Kenmore dryer platforms vary by model. Always follow model-specific service instructions and local electrical safety rules.
