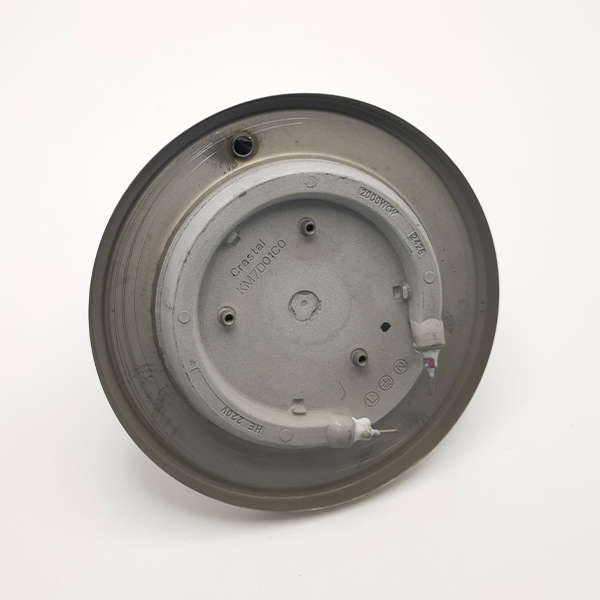

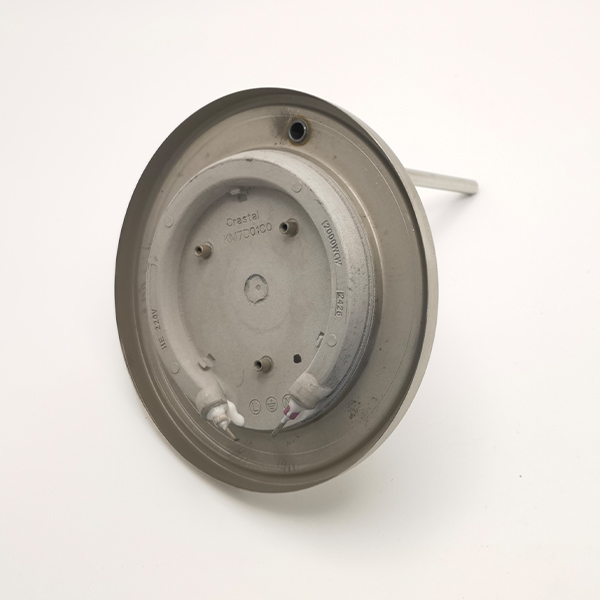

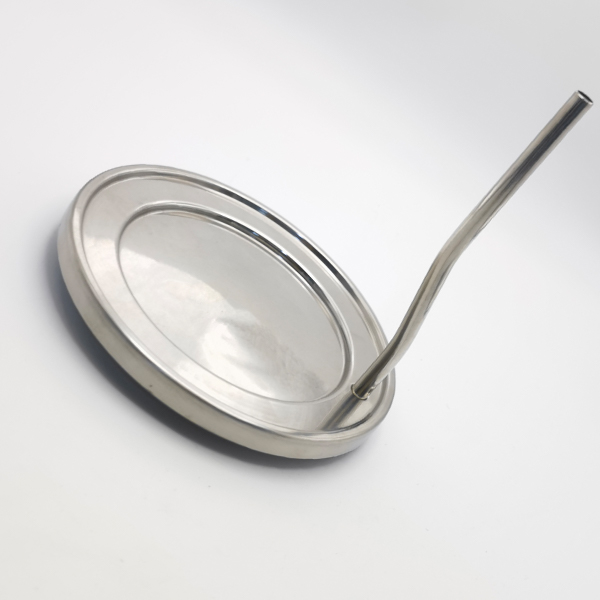

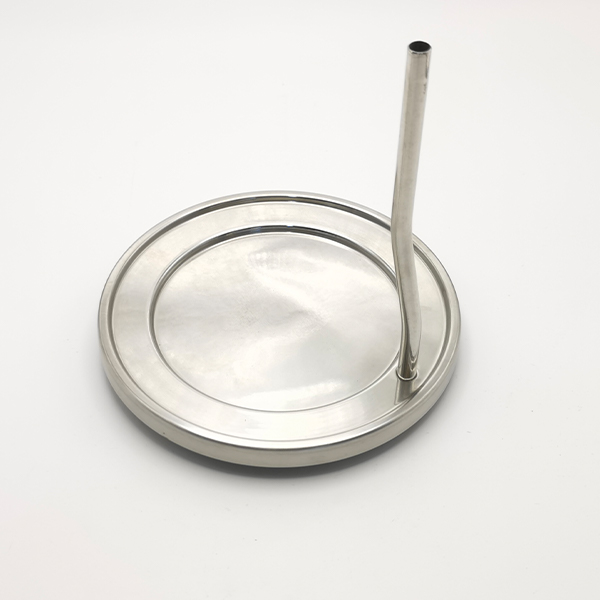

The coffee pot heating plate adopts a composite process of stainless steel substrate and nickel-chromium alloy heating tube, integrated with PID temperature control module, supports 3 seconds of fast heating, energy efficiency ≥96%, working temperature range 50℃-250℃, with IPX5 waterproof and steam corrosion resistance, adapted to 500W-1500W power requirements, dry burning design life of more than 30,000 hours, to meet the high-frequency continuous operation requirements of coffee machines.
Minimum order quantity: 1000
Delivery time: 15-25 days
Factory location: Zhongshan, Guangdong, China
Italian coffee machine, moka pot, hand-brewed coffee equipment, capsule coffee machine, commercial fully automatic coffee machine, hotel commercial electric coffee utensils.
Power range: 500W~1500W (customizable, suitable for high-frequency requirements of espresso machines/capsule coffee machines)
Working voltage: 12V~240V AC/DC (wide voltage design, compatible with home and commercial coffee equipment)
Resistance value: 5Ω~50Ω (matched by voltage and power, supports customized production of electric heating coils)
Working temperature: 50°C~250°C (stainless steel substrate is resistant to high temperature oxidation, suitable for steam environment)
Material: stainless steel substrate, nickel-chromium alloy heating tube, PID temperature control module (customizable composite structure)
Dimensions: length 10cm~30cm, width 5cm~15cm, thickness 1mm~3mm (supports special-shaped cutting, suitable for customized heating cup elements)
Service life: 30,000~50,000 hours (anti-oxidation coating + dry burning enhancement process, suitable for high-frequency continuous operation)
Extremely fast heat conduction: stainless steel substrate + nickel-chromium alloy tube, 3 seconds fast heating, suitable for high-frequency heating requirements of coffee machines.
Precise temperature control: integrated PID algorithm, ±1°C error, meets the constant temperature control requirements of capsule coffee machines.
Waterproof and anti-corrosion: IPX5 waterproof grade + steam anti-corrosion coating, suitable for the humid and high-pressure environment of espresso machines.
Energy-saving and efficient: Energy efficiency ≥ 96%, the thermal conductivity of the electric heating unit is increased by 30%, and the energy consumption of commercial equipment is reduced.
Industrial-grade durability: 30,000 hours of life, and the anti-oxidation coating extends the working stability of the heating cup components.
Flexible adaptation: Supports special-shaped size and temperature curve adjustment to meet the non-standard customization needs of coffee machines/tea sets.
Safe and reliable: Isolated circuit design, CE certified, and adapted to household appliances leakage prevention standards.
Fast delivery: Standardized production line mass production, 15 days to complete orders, adapted to the bulk purchase needs of coffee equipment.
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
