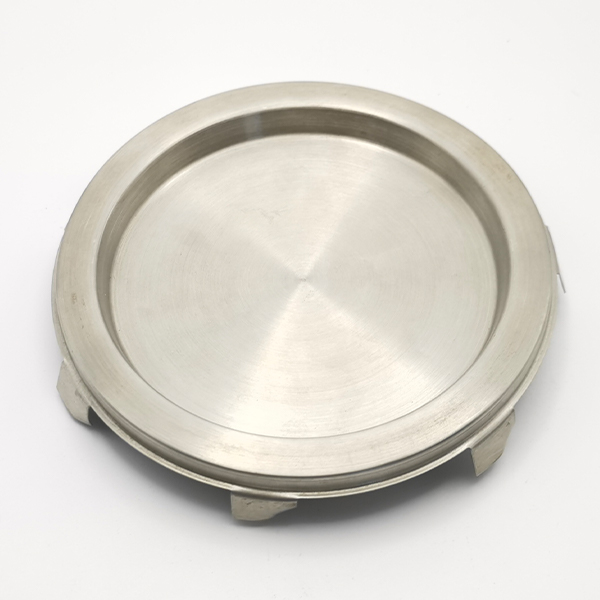

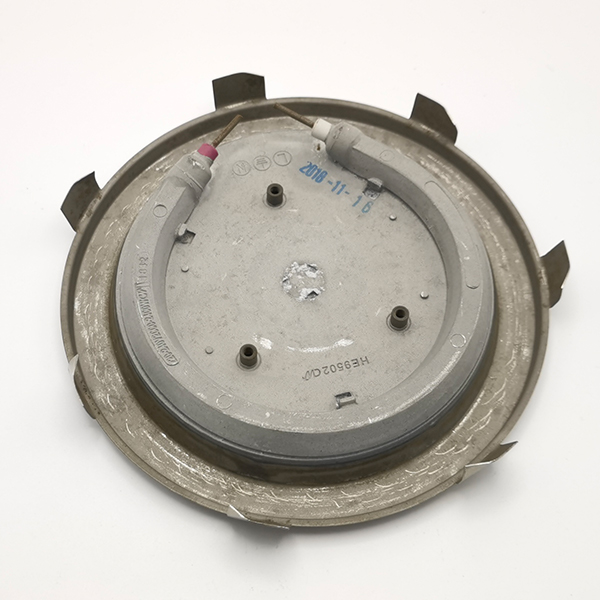

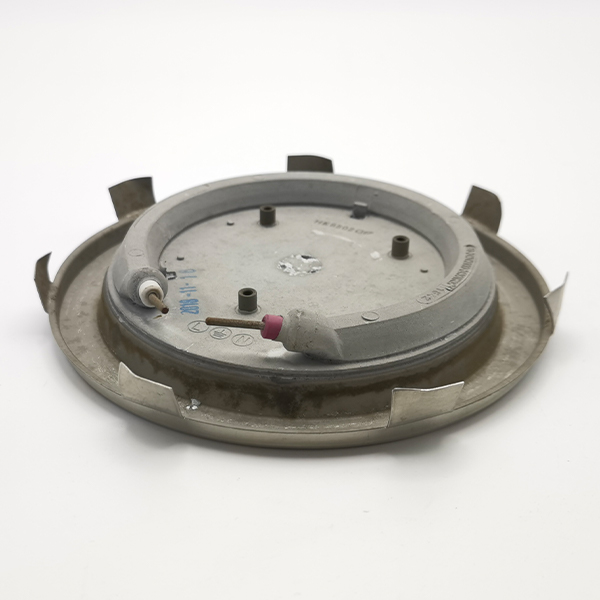

Milk Frother Heating Element——Professional-grade milk frothing heating solution
The embedded heating element is designed for espresso machines, milk frothers and high-end hand-pour equipment. It adopts food-grade 316L stainless steel + nano-ceramic coating, is suitable for 50W-2000W power range, has a temperature resistance of 150℃ (short time), and a thermal response time of ≤5 seconds; it integrates PID dynamic temperature control algorithm (±0.5℃ accuracy), supports steam pressure adaptive adjustment (0.5-1.5bar) and pulse steam self-cleaning technology (milk scale removal rate>99%), and has passed CE/LFGB/RoHS certification, which is suitable for home, coffee shop and commercial beverage store scenes.
MOQ：1000PCS
Lead time：25days
Factory location: Zhongshan, Guangdong, China
Home appliances: bottle sterilizer, constant temperature milk mixer, portable milk heating cup, coffee milk foam heating pad.
Industrial equipment: laboratory constant temperature water bath device, medical equipment constant temperature disinfection system, dairy product processing pretreatment equipment.
Material and structure:
304 stainless steel substrate (optional): corrosion-resistant, easy to clean, surface polished (suitable for glass milk jugs).
Insulation design: ceramic fiber insulation layer (surface temperature ≤ 60°C, anti-scalding).
Power range:
Conventional model: 300W–800W (suitable for 200ml–500ml milk jugs, producing dense milk foam within 30 seconds).
Commercial model: 1000W–1500W (suitable for high-frequency use in coffee shops, continuous work for 8 hours).
Temperature control:
PID algorithm: temperature control accuracy ±0.5°C, supports multi-stage temperature control (such as 35°C preheating → 60°C frothing → 40°C insulation).
Preset mode: Italian milk foam (60°C), cappuccino foam (55°C), hot chocolate (65°C).
Dimensions and specifications:
Shape: Ring/spiral (suitable for cylindrical milk jugs, diameter 5–8cm).
Heating area: 8cm–15cm in length (covering the bottom to the middle of the milk jug).
Thickness: 1mm–2mm (ultra-thin design, suitable for embedded coffee machines).
Safety protection:
Anti-dry burning: automatic power off when the temperature is greater than the set value of 10°C (such as stopping heating when the milk jug is out of water).
Anti-overflow design: automatic power reduction when detecting boiling liquid to avoid milk splashing.
Tip power off: automatic power off when the tilt angle is greater than 15° (suitable for car/travel scenarios).
Life and reliability:
Regular models: 5,000–8,000 hours (calculated based on 3 uses per day).
Quickly generate dense milk foam:
300W model: Heat 200ml of milk to 60°C and produce fine milk foam (foam density ≥ 90%) within 30 seconds.
1000W commercial model: Complete heating and frothing in 15 seconds, suitable for the peak demand of coffee shops.
Precise temperature control and milk foam texture:
PID dynamic adjustment: Adapt to different milk types (whole fat/skim/soy milk), and stably output 60°C±1°C milk foam.
Stepless speed regulation: Supports milk foam thickness adjustment (such as light milk foam or dense milk cap).
Safety and anti-scalding design:
Insulation layer: Surface temperature ≤60°C to avoid scalding during operation (especially suitable for families with children).
Double insurance: Temperature fuse + automatic power off, compliant with CE and FDA certification.
Easy to clean and maintain:
Removable design: The heating element is separated from the milk tank and supports dishwasher cleaning.
Quiet operation:
No mechanical vibration, suitable for open kitchens or night use.
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
