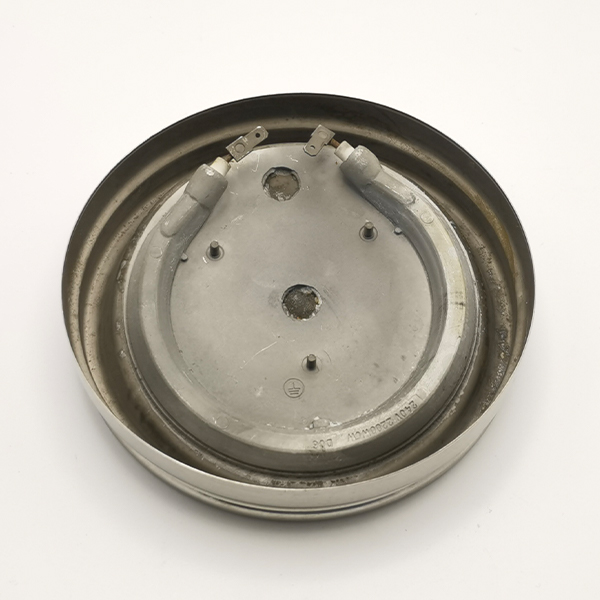

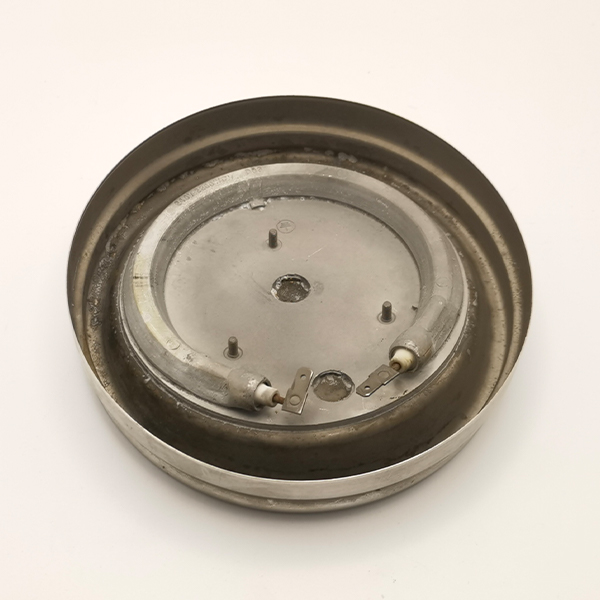

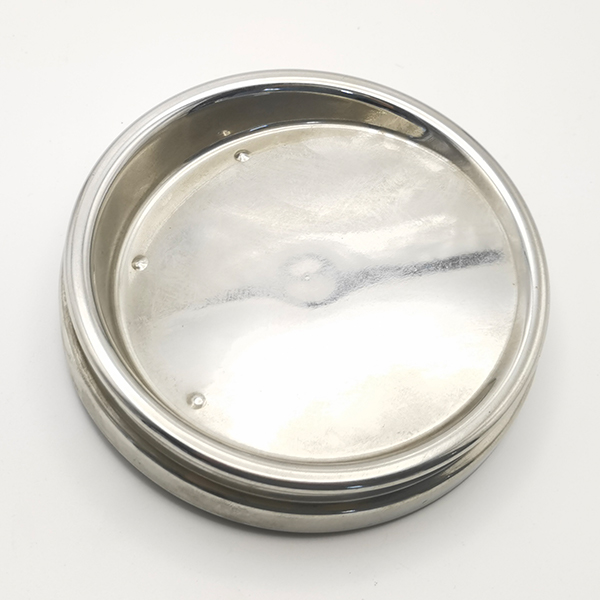

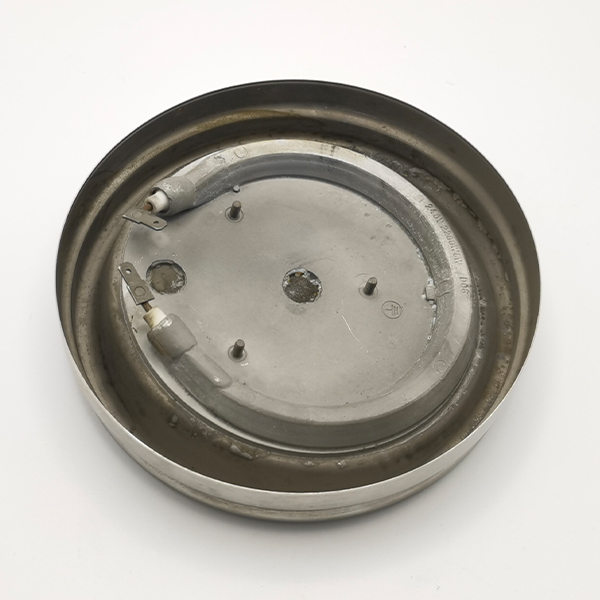

Electric Rice Cooker Heating Plate——Intelligent temperature control and uniform heating solution
Embedded heating element designed for high-end rice cookers, suitable for 800W-2000W power range, temperature resistance up to 350℃ (short time), heat distribution uniformity ΔT≤3℃; integrated PID dynamic temperature control algorithm (±0.5℃ accuracy), supports rice cooking/soup cooking/keeping warm multi-mode (temperature difference ≤±1℃), anti-dry burning protection (>15 seconds automatic power off), passed CE/LFGB/RoHS certification, life>150,000 cycles, suitable for home, commercial and industrial continuous cooking scenarios.
MOQ：1000PCS
Lead time：25days
Factory location: Zhongshan, Guangdong, China
Home appliances: rice cookers, electric pressure cookers, slow cookers, health pots, electric ceramic stove heating plates.
Industrial equipment: commercial rice steaming equipment, hotel/hospital constant pressure soup system
Power range:
Conventional models: 500W–1500W (suitable for household rice cookers for 2–4 people).
Commercial models: 1500W–3000W (commercial large-capacity rice cookers/cooking equipment).
Customizable: Supports power adjustment on demand (voltage and capacity requirements must be provided).
Working voltage:
Standard voltage: 220V single-phase AC (global power grid compatible, error ≤±5%).
Commercial adaptation: 380V three-phase AC (overload protection module needs to be customized).
Resistance value:
Conventional models: 8Ω–25Ω (matched by power and voltage, error ≤±3%).
Working temperature:
Continuous stability: 200°C–300°C (surface temperature, high temperature resistant coating protection).
Short-term peak: 350°C (ceramic fiber insulation layer needs to be customized).
Material:
Base material: Food-grade stainless steel 304 (corrosion-resistant, easy to clean) or aluminum alloy (lightweight, thermal conductivity ≥ 200W/m·K).
Surface treatment: Teflon (PTFE, anti-adhesion) or ceramic coating (high temperature resistant to 500°C).
Dimensions:
Diameter/side length: Φ100mm–Φ300mm (round/square design, suitable for different capacity tanks).
Thickness: 3mm–8mm (supports embedded or detachable design).
Service life:
Conventional models: 10,000–15,000 hours (based on daily usage frequency).
Commercial models: 20,000–30,000 hours (enhanced heat dissipation and coating protection).
Efficient heating:
The thermal conductivity of the aluminum alloy substrate is as high as 200W/m·K, and the temperature rises to 100°C within 3 minutes, and the energy consumption is reduced by 15% compared with the traditional iron-chromium-aluminum heater.
Precise temperature control:
Supports PID algorithm temperature control (±1°C accuracy), and is suitable for the insulation/cooking mode of smart rice cookers (such as firewood rice, porridge/soup stewing).
Safe and durable:
Teflon coating is resistant to high temperatures (260°C) and anti-adhesion, and the cleaning frequency is reduced by 60%, which complies with FDA food contact certification.
Anti-dry burning protection:
Dual temperature control sensors (bottom of the pot + inside), automatic power-off temperature ≥120°C, to prevent damage caused by empty burning.
Quick response:
No thermal inertia design, cooling to a safe temperature within 30 seconds after power failure, suitable for high-frequency start-stop scenarios (such as continuous steaming). Easy-to-clean design:
The ceramic coating resists the adhesion of rice grains/grease, supports dishwasher cleaning, and reduces maintenance costs by 50%.
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
