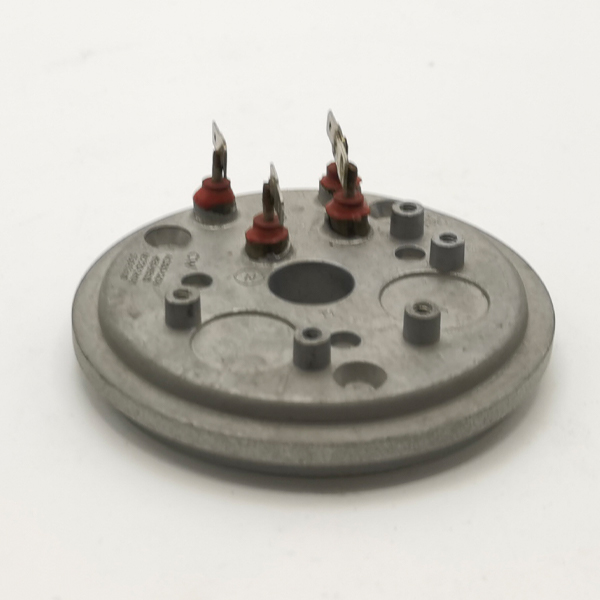

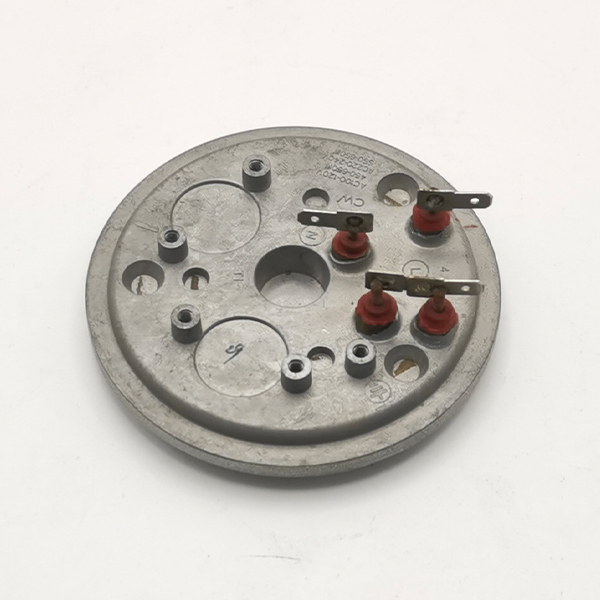

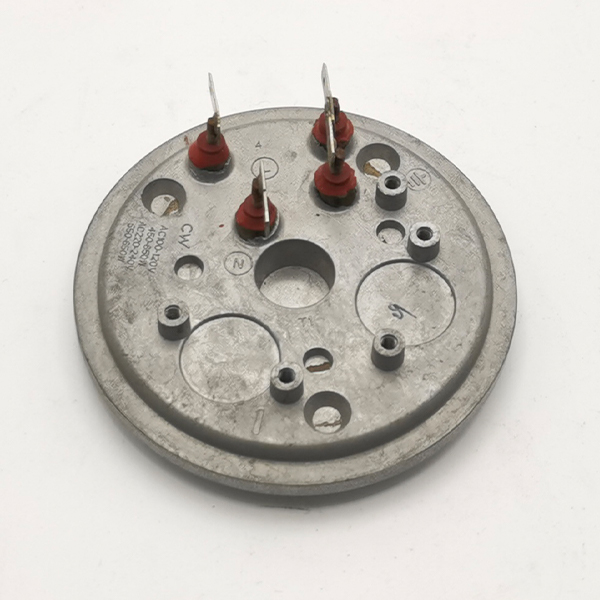

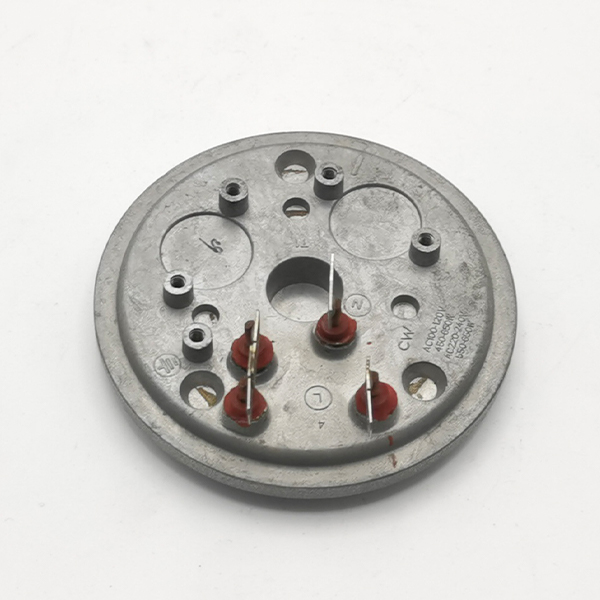

The Die-Cast Heating Element adopts die-cast aluminum alloy substrate and thick film resistor technology, integrates PID temperature control module and NTC temperature sensor, achieves 3 seconds fast heating, energy efficiency ≥96%, working temperature range 50℃-500℃, and supports power (500W-8000W) customization. The surface anodizing treatment improves corrosion resistance, has IPX7 waterproof, anti-dry burning and anti-scaling performance, and has a lifespan of more than 30,000 hours, meeting the stable heating needs of high-frequency industrial and civilian scenarios.
Minimum order quantity: 1000
Delivery time: 15-25 days
Factory location: Zhongshan, Guangdong, China
Capsule coffee machine steam module, fully automatic coffee machine boiler, electric iron soleplate, instant electric water heater, industrial heat exchanger, new energy battery module constant temperature system, medical sterilization steam generator, laboratory constant temperature water bath device, hotel commercial electric tea stove, mold constant temperature heating component, smart wearable device temperature control unit.
| Parameter | Specification Range |
|---|---|
| Power Range | 800W-5000W (covers household to commercial small appliances: electric kettles, coffee machines, electric pots, bottle warmers, soy milk makers, blenders) |
| Operating Voltage | 220V (single-phase, household standard); 380V (three-phase, commercial optional) |
| Resistance Value | 3Ω-30Ω (single-unit or multi-unit combination, matched to power and voltage requirements) |
| Operating Temperature | Surface: 120℃-300℃ (normal operation); Maximum withstand: 350℃ (short-term overload protection) |
| Material | Heating element: Nickel-chromium alloy (Cr20Ni80, Φ0.6mm-Φ2.5mm, high resistivity + high thermal conductivity); Housing: Die-cast aluminum alloy (A356/6061, corrosion-resistant, thickness 1.2mm-3.0mm) |
| Dimensions | Length: 150mm-600mm; Width: 50mm-150mm; Thickness: 20mm-50mm (customizable to fit circular/square heating slots in target appliances) |
| Service Life | 8000h-15000h (normal use, no dry burning, limescale buildup, or corrosion under typical conditions) |
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
