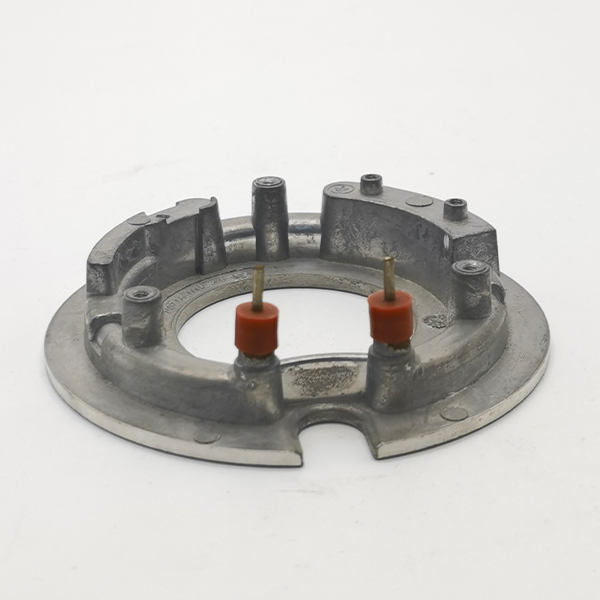

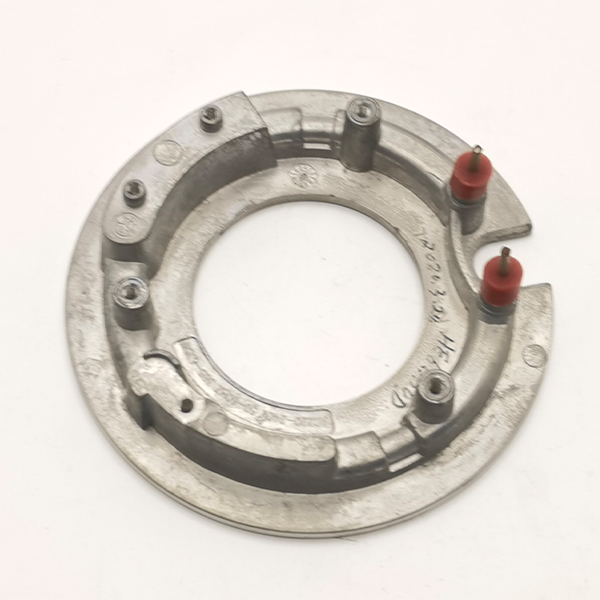

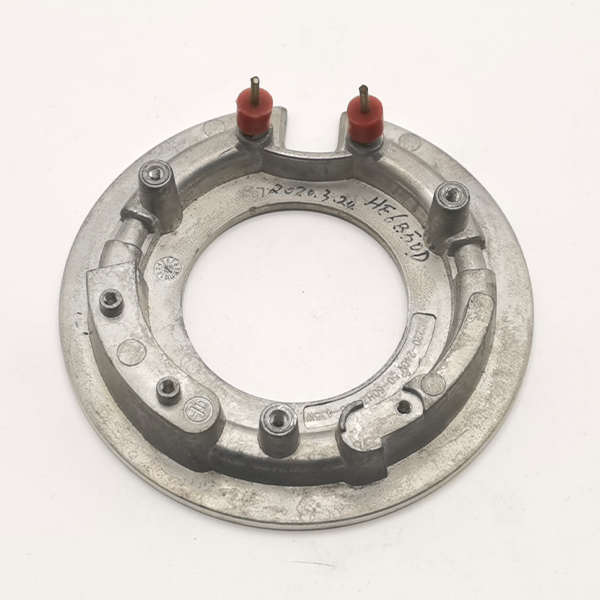

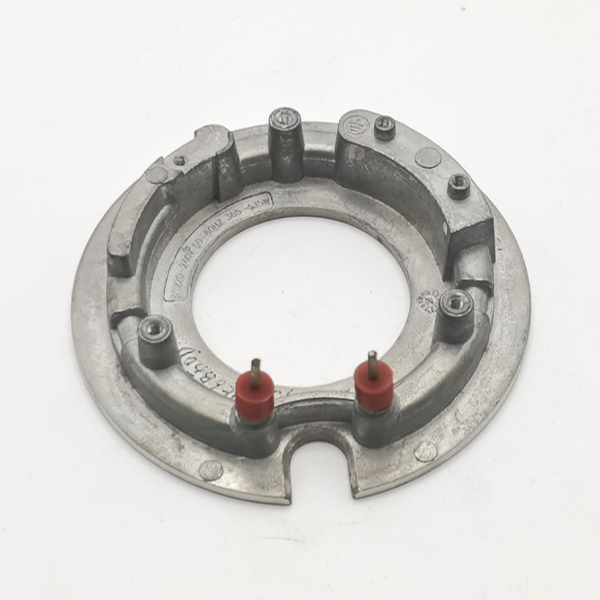

The aluminum heating plate element adopts die-cast aluminum alloy substrate and thick film resistor technology, integrated PID temperature control module and NTC temperature sensor, achieving 3 seconds fast heating, energy efficiency ≥ 96%, working temperature range 50℃-300℃, and supports power (300W-2000W) customization. The surface anodizing treatment enhances corrosion resistance, has IPX7 waterproof, anti-dry burning and anti-scaling performance, life span exceeds 30,000 hours, adapts to high-frequency continuous heating scenarios, and meets the high efficiency and stability requirements of industry and civil use.
Minimum order quantity: 1000
Delivery time: 15-25 days
Factory location: Zhongshan, Guangdong, China
Capsule coffee machine steam module, electric iron soleplate, instant electric water heater, electric pressure cooker, hanging iron heating core.
| Parameter | Specification Range |
|---|---|
| Power Range | 500W-5000W (covers household to commercial small appliances: electric kettles, coffee machines, electric pots, bottle warmers, soy milk makers, blenders) |
| Operating Voltage | 220V (single-phase, household standard); 380V (three-phase, commercial optional) |
| Resistance Value | 2Ω-30Ω (single-unit or multi-unit combination, matched to power and voltage requirements) |
| Operating Temperature | Surface: 120℃-300℃ (normal operation); Maximum withstand: 350℃ (short-term overload protection) |
| Material | Heating element: Nickel-chromium alloy (Cr20Ni80, Φ0.5mm-Φ2.0mm, high resistivity + high thermal conductivity); Base: Die-cast aluminum alloy (A356/6061, corrosion-resistant, thickness 1.2mm-3.0mm) |
| Dimensions | Length: 150mm-600mm; Width: 50mm-150mm; Thickness: 15mm-50mm (customizable to fit circular/square heating slots in target appliances) |
| Service Life | 8000h-15000h (normal use, no dry burning, limescale buildup, or corrosion under typical conditions) |
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
These are lists of frequently asked questions by our customers. We correspond each question to a brief answer, covering aspects such as products, quality, and services. If you have other inquiries, please leave a message for consultation. Thank you.
Get a custom quote in less than two days.
