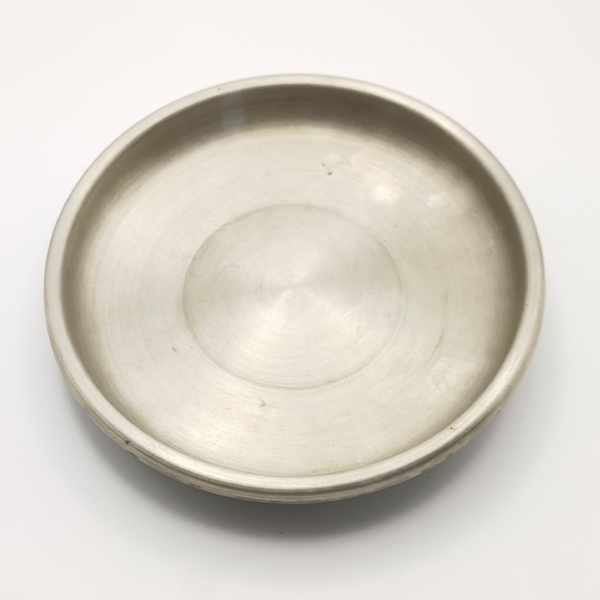

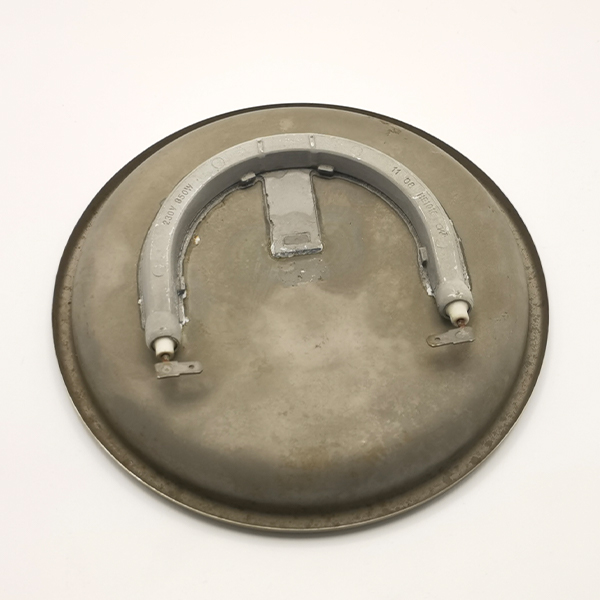

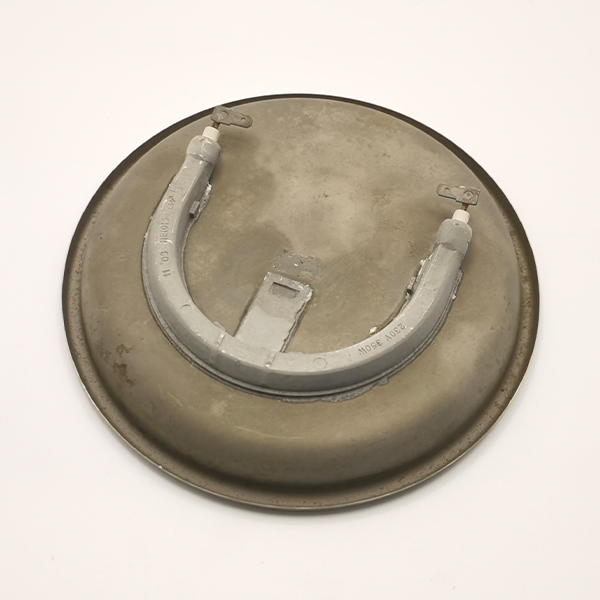

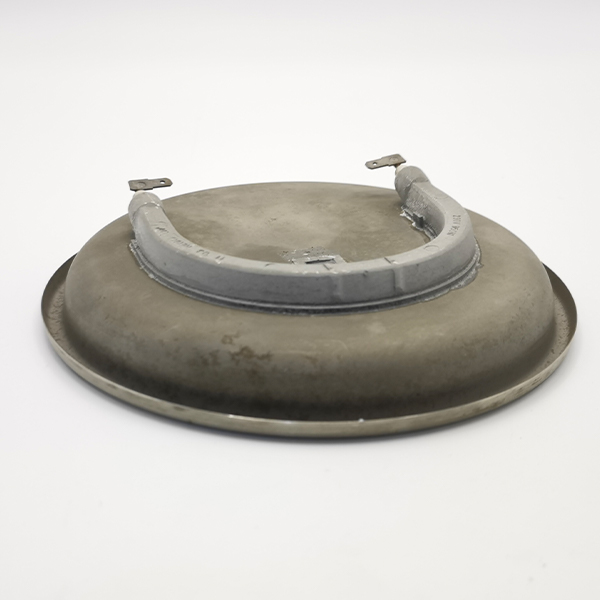

Aluminum Heater Plate——Lightweight and efficient heat conduction solution
Aluminum heating plates are widely used in kitchen appliances, industrial equipment and medical fields due to their light weight, high thermal conductivity and corrosion resistance.
MOQ：1000PCS
Lead time：25days
Factory location: Zhongshan, Guangdong, China
Power range:
Home use: 300W–1500W (electric kettle, air fryer).
Commercial use: 1500W–5000W (industrial oven, baking equipment).
Working voltage: 110V/220V AC (globally compatible, ±5% error) or customized DC (12V–48V).
Working temperature:
Continuous stability: 200°C–400°C (surface temperature, coating protection required).
Short-term peak: 500°C (ceramic fiber insulation required).
Dimensions:
Thickness: 1mm–6mm (ultra-thin design suitable for compact equipment).
Shape: flat, curved, special-shaped customization (suitable for kettle bottom, oven cavity, etc.).
Performance parameters
Heating speed: Aluminum alloy substrate with no thermal inertia, heating to 200°C within 3 minutes.
Temperature uniformity: ±5°C (better than ±10°C for stainless steel).
Thermal efficiency: More than 90% (direct contact heating, no loss of heat storage medium).
Lifespan: 10,000–30,000 hours (depending on operating temperature and coating protection).
Lightweight and cost-effectiveness
Low material cost, suitable for large-scale mass production
Fast thermal conductivity and temperature uniformity
Support PID algorithm temperature control (±1°C accuracy), suitable for precision heating scenarios (such as laboratory thermostats).
Diverse surface treatments
Anodized layer: Salt spray resistance test ≥500 hours, suitable for humid environments (such as kitchens, outdoor equipment).
Safety and reliability
Anti-dry burning protection: Integrated NTC temperature sensor, automatic power off when overtemperature (such as >300°C trigger protection).
Environmental protection and energy saving
Direct contact heating, energy consumption is 40% lower than that of traditional boilers
Zero emissions, no vibration and noise, suitable for medical and food processing scenarios.
Household appliances:
Electric kettle, air fryer, coffee machine (fast heating and equalization).
Commercial equipment:
Baking oven, waffle maker, breakfast machine (high-frequency stable heating).
Industrial equipment:
Mold heating plate, constant temperature reactor, pipe insulation (corrosion resistance and high temperature resistance).
Medical and laboratory:
Constant temperature incubator, reagent heating table (PID temperature control + explosion-proof design).
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
