Testing Samsung heating element replacement parts is a controlled verification of three things: (1) the element s electrical continuity and resistance, (2) the element s insulation integrity, and (3) the element s in?system heating behavior after installation. A test process that ignores safe commissioning can still fail a good part Whirlpool s service steps warn that energizing a water-heater element before the tank is completely full can burn out the upper element via ドライファイア.
Air purge time (procedure)
3分間
Whirlpool: full-stream purge
Dry-fire outcome
上部エレメントの焼損
Whirlpoolの警告
Example component spec
IP67 + UL
Hudson Reed listing
Example component price
$209.95
Hudson Reed 1000W プラグイン式エレメント
- What counts as a heating element (and why tests must match the design)
- Safety and setup: the non-negotiable pre-test steps
- Bench tests: continuity and resistance (multimeter)
- Installation verification: leak, wiring, and safe commissioning
- Interpreting failures: when the part is fine but the system is not
- Supplier/spec transparency and quality context
- よくある質問（5）
- 引用文献および外部リンク
Samsung heating element replacement parts can refer to several appliance categories (water heater elements, oven bake elements, dryer heater assemblies, dishwasher heaters, coffee-machine boilers, etc.). Test procedures differ by heater construction, but the underlying definition is consistent: TUTCO describes a heating element as a component composed of electrically conductive and insulating materials designed to serve a heating purpose an assemblage that includes insulating framework and lead connectors, not merely a piece of alloy.
出典: https://tutco.com/conductive/heating-elements
- De-energize the appliance at the breaker or plug and verify it is off.
- Do not test resistance with power applied (multimeter damage and shock risk).
- Whirlpool requires running hot water until cool before draining to reduce scald risk.
- Do not restore power until the tank is completely full and air is purged (prevents ドライファイア).
- Model and part number printed on the replacement part packaging.
- Appliance voltage and wattage requirements (e.g., water heater data plate; Whirlpool requires this verification for elements).
- Photos of wiring layout and terminal orientation before disconnecting.
Set the multimeter to continuity (or low ohms). Touch probes to the two element terminals.
- Pass (typical): continuity/low resistance indicates the heating path is not open.
- 失敗だ： infinite resistance (open circuit) indicates a broken heating path.
Note: This identifies an open element but does not prove it is safe under load or properly insulated.
Measure resistance across the element terminals and record it. Expected resistance depends on the part s rated wattage and voltage. This guide does not publish a single correct value because Samsung replacement parts span different appliances and ratings; instead, the correct expected range should be derived from the part s rating.
A practical approach: resistance that is extremely low or extremely high compared to a similar-rated element is a red flag for a wrong part or internal defect.
- Clean tank threads with a rag (Whirlpool step).
- Install the gasket and lubricate with a 一滴 of dishwashing liquid to avoid gasket damage during tightening.
- Hand-tighten, then tighten with an element wrench or 1 1/2" socket.
- Reconnect wires and ensure connections are tight.
- Refill tank fully; remove aerator; run full stream for 3分間 to purge air.
- Check for leaks; if leaking persists, drain and inspect gasket, replace if damaged.
出典: https://www.whirlpoolwaterheaters.com/support/help/element-was-out-of-range/24
A bench test can pass, and the part can still fail in the field if the installation environment is wrong. Whirlpool s warning illustrates this clearly: applying power before the tank is full can destroy the element. That is not a component defect it is an avoidable commissioning failure.
When the multimeter shows continuity and a stable resistance reading, but the heater fails to heat in the appliance, the fault may sit upstream (controls) or downstream (heat transfer conditions). TUTCO s discussion is relevant here: heater performance depends on materials, integration, and environment; it also notes that supplier-to-supplier differences in alloy composition and （不純物または添加元素）の違いにより挙動が異なる可能性があると指摘しています。 can change properties.
- 端子の緩み or damaged connectors
- Ground fault or leakage paths (insulation breakdown)
- スケール堆積 / poor heat transfer (water heaters)
- Control issues (thermostat/sensor/relay), depending on appliance type
- Incorrect rating (wrong voltage/wattage for the unit)
- Damaged sheath or compromised insulation
- Manufacturing variability (TUTCO: （不純物または添加元素）の違いにより挙動が異なる可能性があると指摘しています。 can affect properties)
Hudson Reed s 1000W plug-in element listing provides a clear, auditable set of specs: price ($209.95), power (1000W), materials (ABS + stainless steel), ingress protection (侵入保護等級が、高価格の加熱器部品の価値提案の一部となり得ることを示しています。), and UL認証取得 status. This is not a Samsung part, but it is a strong model for how replacement-part testing begins with documented specs.
出典: https://usa.hudsonreed.com/1000-plug-in-watt-electric-heating-element-76309

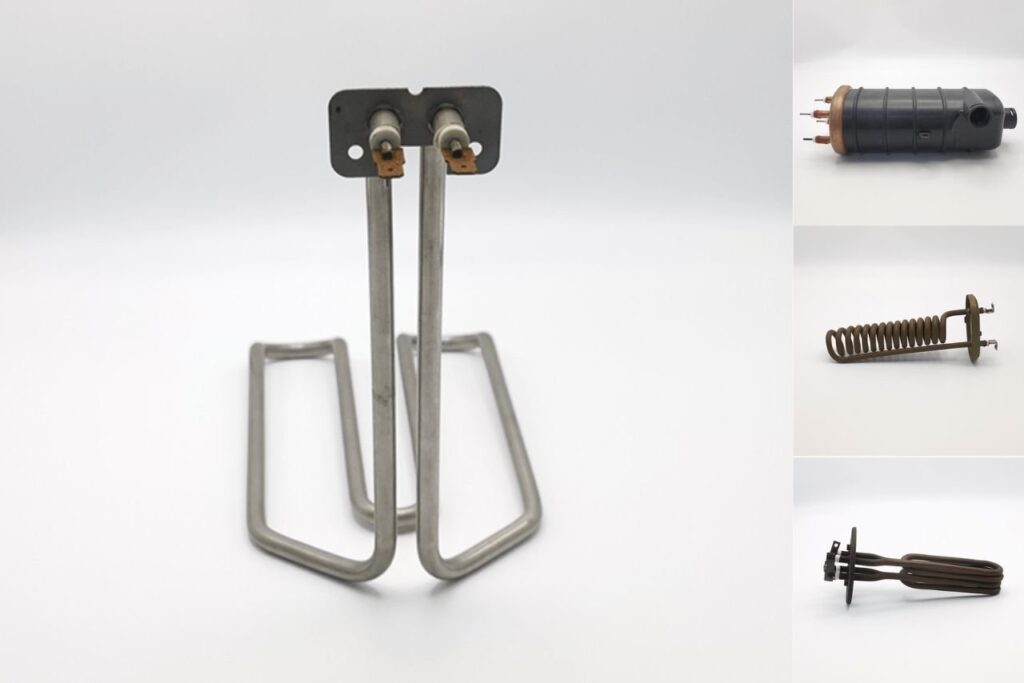

Replacement heating elements in appliances can be tubular, plate-based, film-based, or integrated die-cast heater bodies. Jinzhong s category pages illustrate these families, which helps set expectations for what and how to test.
What is the quickest test to confirm a Samsung replacement heating element is not open?
A continuity test (or low-ohms measurement) across the element terminals is the fastest screen. No continuity typically indicates an open element.
Why can a good element fail right after installation?
Commissioning errors can destroy a good part. Whirlpool warns that powering a water-heater element before the tank is completely full and purged can burn out the upper element via ドライファイア.
How long should air purging take after refilling a water heater?
Whirlpool specifies running hot water full stream for 3分間 to remove air before restoring electrical power.
Why does the same nichrome element behave differently across suppliers?
TUTCO notes that alloys may include different （不純物または添加元素）の違いにより挙動が異なる可能性があると指摘しています。 depending on supplier, which can materially affect properties, oxidation behavior, and lifespan.
What should be documented for a repeatable test process in a repair shop?
At minimum: the part number, rated voltage/wattage, continuity result, resistance reading, installation photos, and commissioning checklist completion (e.g., air purge confirmation for water heaters).
