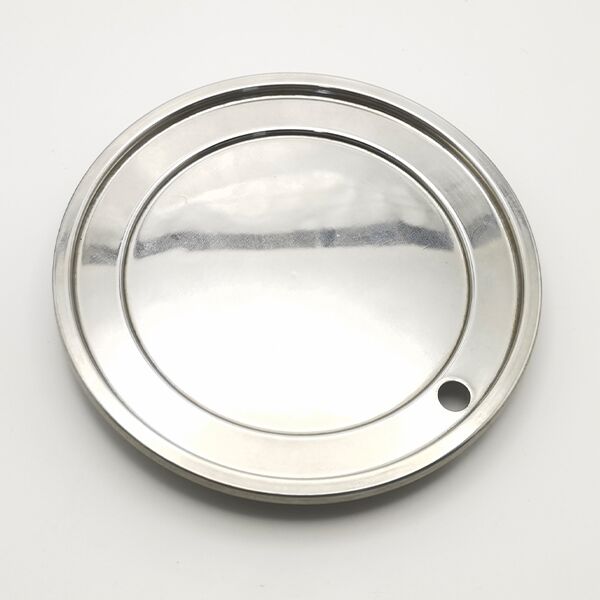

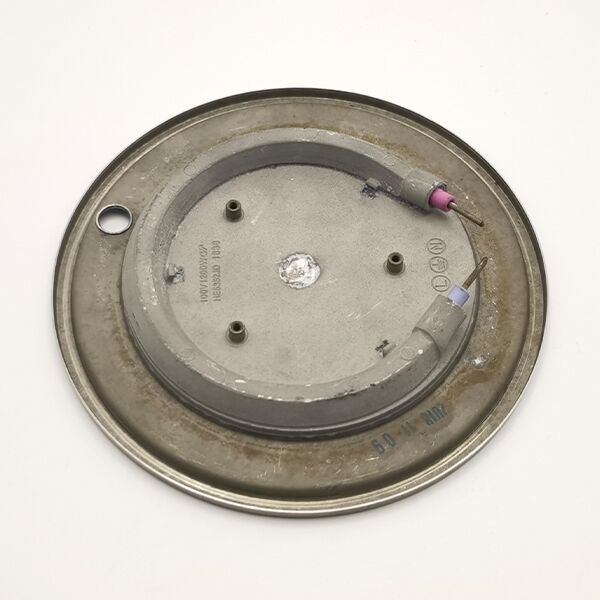

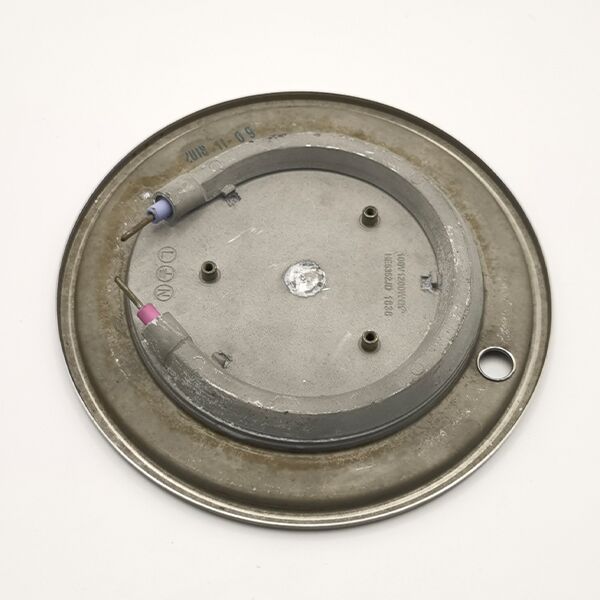

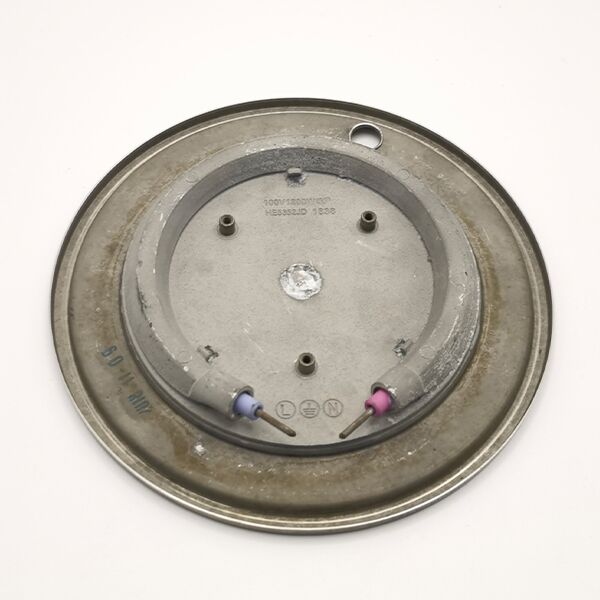

Becherheizplatte

Product Application

Home appliances: electric kettle, coffee machine, health pot, electric pressure cooker, air fryer.
Industrial equipment: commercial oven hot air module, laboratory constant temperature reactor, food processing drying equipment, heater heating module.

Produktparameter

Material und Struktur:

Ceramic coated aluminum substrate: surface ceramic coating (acid and alkali resistant, high temperature resistant), thermal conductivity ≥15 W/(m·K), suitable for glass/ceramic beakers.

Stainless steel frame: 304 stainless steel shell, explosion-proof and corrosion-resistant, in line with laboratory safety standards.

Thermal insulation design: ceramic fiber insulation layer (reduces heat loss, surface temperature ≤60°C).

Leistungsbereich:

Conventional model: 500W–2000W (suitable for 50ml–1000ml beakers).

High power model: 2000W–5000W (suitable for large-capacity beakers above 5000ml or fast heating).

Working voltage:

Standard voltage: 110V/220V AC (error ±5%), suitable for global universal power supply.

Optional DC: 24V DC (customized portable devices).

Temperature control:

PID algorithm: Temperature control accuracy ±1°C, supports program heating (such as gradient heating).

Sensor type: PT100 platinum resistance (high precision) or K-type thermocouple (wide temperature range).

Temperature range: Room temperature +10°C to 450°C (short-term peak value can reach 500°C).

Abmessungen:

Heating area: Diameter 10cm–30cm (adaptable to different beaker sizes).

Thickness: 2cm–5cm (lightweight design, with non-slip silicone pad on the bottom).

Safety protection:

Anti-dry burning: Automatic power off when temperature > set value 10°C (such as setting 200°C, actual 210°C triggers protection).

Overload protection: Automatic power reduction when current exceeds limit, adapt to short circuit or external device abnormality.

Explosion-proof design: Surface temperature uniformity ≤±5°C to avoid local overheating and beaker rupture.

Lifespan and reliability:
Conventional models: 10,000–15,000 hours (calculated based on 8 hours of continuous use per day).
High-load models: 5,000–8,000 hours (coating needs to be maintained regularly).

Wesentliche Vorteile

Precise temperature control:
SupportsPID dynamic adjustment, suitable for constant temperature reactions (such as PCR amplification) and gradient heating (such as solvent extraction).
Multi-segment programming: The temperature curve can be preset (such as heating → constant temperature → cooling), and USB data export is supported.
Corrosion resistance:
Ceramic coatingisresistanttostrongacids(concentratedsulphuricacid,hydrochloricacid),strongalkalisandorganicsolvents(ethanol,acetone),andsuitableforchemicalsynthesisexperiments.
Stainlesssteelframeisrust-proofandsuitableforhumidenvironments(suchaswaterbathheating).
Safetyanddurability:
Anti-dumpingpoweroff:Automaticallypowersoffwhenthetiltangleis>15°,incompliancewithlaboratorysafetyregulations. Explosion-proof certification: CE and ISO 13485 certified, suitable for flammable and explosive reagents (such as ether and methanol).
Efficient heating: The thermal conductivity of the ceramic coating is 40% higher than that of traditional aluminum plates, shortening the heating time (such as boiling 1L of water from 15 minutes to 8 minutes).
Easy to clean and maintain: The surface ceramic coating is scratch-resistant and residue-free, and supports alcohol wiping or high-temperature sterilization (121°C high-pressure sterilization).
Multi-functional adaptation: Supports beakers, conical flasks, culture dishes, etc., and is compatible with magnetic stirrers (optional rotating bracket).
