To test a water heater element with a multimeter, turn off the power, access the terminals, and measure resistance across the element. You will quickly see if your water heater works as expected or if you need a replacement. By following the correct steps, you protect yourself and ensure your heating element water heater stays reliable. If you want to know how to test water heater element safely, this process gives you the answers you need.
Tools and Safety for Testing a Heating Element Water Heater
Essential Tools for Test Water Heater Element

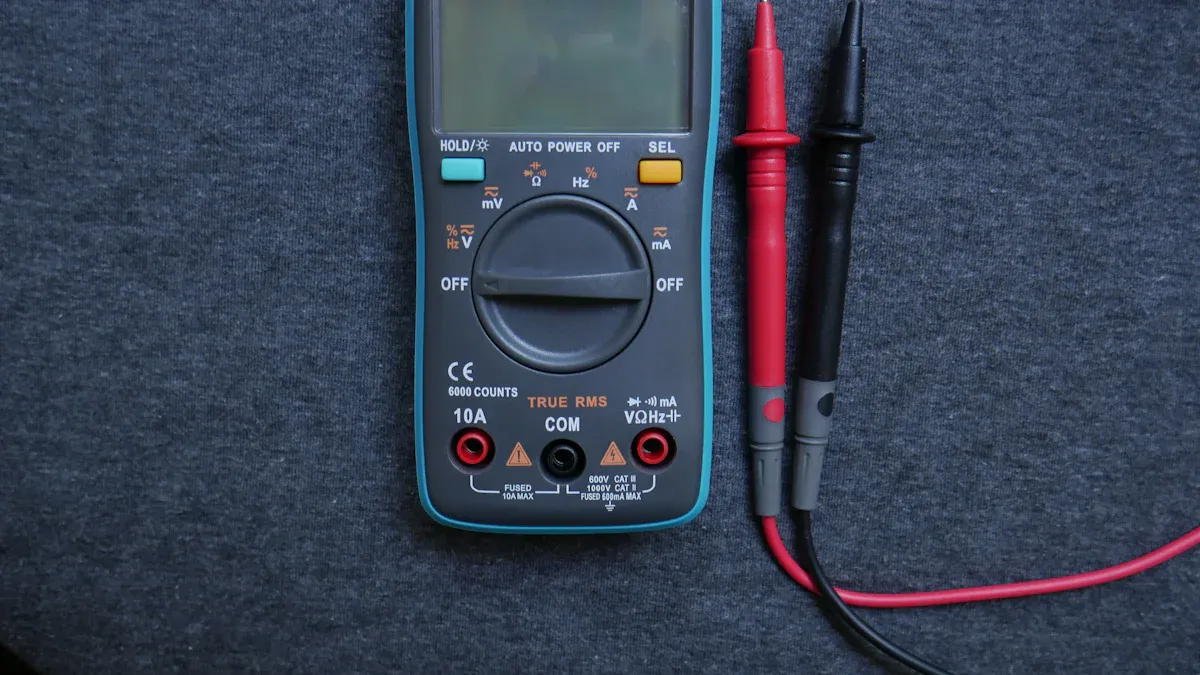

Multimeter for Water Heater Testing
A multimeter stands as your primary tool for diagnosing issues in a water heater. You use it to measure resistance and continuity in the heating element. Multimeters and volt-ohm meters are designed for electrical testing, making them reliable for this task. These devices appear in almost every step-by-step guide for water heater repair, showing their importance and dependability.
Screwdriver for Accessing Water Heater
You need a screwdriver to remove the access panel on your water heater. Choose a screwdriver that matches the screws on your unit. This tool allows you to reach the heating element safely and efficiently.
Safety Gloves and Goggles
Always wear safety gloves and goggles before you begin. These items protect your hands from sharp edges and your eyes from dust or debris. Many safety records recommend gloves and eye protection for any maintenance on an electric water heater.
Voltage Tester for Water Heater
A voltage tester helps you confirm that no electricity flows to the water heater before you start. This step prevents electrical accidents and ensures a safe environment for testing.
Tip:
Keep all your tools within reach before you start. This organization helps you work efficiently and reduces the risk of accidents.
Safety Precautions Before You Test a Water Heater Element
Turning Off Power to Water Heater
You must turn off the power at the circuit breaker before you touch any part of the water heater. This action protects you from electric shock and follows trusted safety protocols.
Double-Checking for Live Wires
After you turn off the power, use your voltage tester to check for any live wires. Even if you feel confident, always double-check. This habit aligns with standard safety procedures and reduces the risk of electrical accidents.
Working in a Dry Area
Make sure your workspace stays dry. Water and electricity create a dangerous combination. Dry floors and hands help prevent slips and electrical hazards.
- Wear gloves and goggles for personal protection.
- Turn off power and gas supplies before any testing or repairs.
- Ensure proper ventilation if you work with a gas water heater.
- Regularly inspect safety features like pressure relief valves.
- In emergencies, shut off all supplies and evacuate if needed.
Preparing Your Workspace for Water Heater Testing
Clearing the Area Around the Water Heater
Remove any clutter or obstacles near your water heater. A clear area gives you space to move and reduces the chance of accidents.
Organizing Tools for Testing
Lay out your tools in an orderly fashion. Place your multimeter, screwdriver, voltage tester, and safety gear where you can reach them easily. This preparation streamlines the testing process and helps you focus on the task.
Note:
Reliable tools and careful preparation form the foundation for safe and effective water heater maintenance.
Accessing the Water Heater Element for Testing
Locating the Heating Element Water Heater
Identifying the Access Panel on Water Heater
You start by finding the access panel on your water heater. Most residential units feature one or two panels on the side of the tank. These panels cover the internal components, including the water heater element. Look for a rectangular or square metal cover, usually secured with screws. Manufacturers often place a label or diagram near the panel to help you identify it quickly.
Tip:
Always check your owner’s manual for the exact location of the access panel. This step saves time and prevents unnecessary disassembly.
Recognizing Upper and Lower Water Heater Elements
Many electric water heaters contain two elements: one at the top and one at the bottom. The upper element typically controls the initial heating, while the lower element maintains the water temperature. You need to determine which heating element water heater component you plan to test. If you notice inconsistent hot water or rapid temperature drops, the lower element may require attention. For complete diagnosis, consider testing both elements.
Removing the Access Panel to Test Water Heater Element
Unscrewing the Water Heater Cover
Once you locate the access panel, use a screwdriver to remove the screws. Place the screws in a safe spot to avoid losing them. Gently lift off the cover to expose the insulation and wiring inside the water heater. Research shows that turning off the power and water supply before this step prevents electrical hazards and water exposure. Always confirm the power is off with a non-contact voltage tester before proceeding.
Removing Insulation from Water Heater
After removing the cover, you will see a layer of insulation. Carefully fold back or remove this insulation to reveal the water heater element and its terminals. Avoid tearing the insulation, as you will need to replace it during reassembly. Studies recommend wearing gloves to protect your hands from sharp edges and hot surfaces. This practice also reduces the risk of accidental contact with electrical components.
Disconnecting Wires from Water Heater Element
Labeling Wires for Reassembly
Before disconnecting any wires, take a moment to label them or snap a quick photo with your phone. Proper labeling ensures you reconnect each wire to the correct terminal later. Experts advise this step to prevent wiring mistakes, which can cause electrical faults or damage the heating element water heater system.
Loosening Terminal Screws on Water Heater
Use your screwdriver to loosen the terminal screws holding the wires in place. Gently pull the wires away from the water heater element. Handle each wire with care to avoid bending or damaging the connectors. Always double-check that the power remains off before touching any wires. This approach aligns with best practices for safe water heater maintenance and accurate testing.
Note:
Following these steps helps you access the water heater element safely and prepares you for effective testing.
Setting Up the Multimeter to Test a Water Heater Element
Choosing the Right Multimeter Setting for Water Heater
Selecting Resistance (Ohms) Mode
You need to set your multimeter to the resistance, or ohms (Ω), mode before you begin testing. This setting allows you to measure resistance in the water heater element. Most digital multimeters have a dial or button for this purpose. Select the lowest ohms range available. This step ensures you get an accurate reading when you measure resistance across the element terminals.
A properly functioning water heater element should show a resistance between 10 and 30 ohms. If you see a reading outside this range, or if the display shows infinite resistance, the element may be faulty. Always disconnect the wires from the element before using the multimeter. This practice prevents interference from other electrical paths and gives you a true measurement.
Tip:
Double-check that you have selected the correct multimeter settings. Using the wrong mode can lead to inaccurate results or even damage the meter.
Setting the Correct Range for Water Heater Element
Set your multimeter to the lowest resistance range before you start. This adjustment helps you detect even small changes in resistance. If your meter is auto-ranging, it will select the best range automatically. For manual meters, turn the dial to the lowest ohms setting. This approach aligns with standard testing protocols and ensures you capture the correct resistance value for your water heater element.
Testing and Calibrating the Multimeter for Water Heater
Checking Multimeter Functionality
Before you test the water heater element, check that your multimeter works properly. Touch the two probes together while in ohms mode. The display should read zero or close to zero. If you see a different value, your meter may need calibration or a new battery. Reliable readings depend on a properly functioning device.
- Make sure the multimeter battery is fresh.
- Inspect the probes for damage or corrosion.
- Confirm the display responds quickly when you touch the probes together.
Calibrating Multimeter if Needed
Calibration ensures your multimeter provides accurate measurements during testing. Calibration statistics such as sensitivity, offset, and the coefficient of determination (R²) help validate the quality of your device. These metrics confirm that your instrument’s output matches the measured input. You should calibrate your multimeter under the same conditions as your water heater test. This step reduces errors and increases confidence in your results.
Note:
Accurate calibration and correct multimeter settings are essential for reliable water heater diagnostics. Establishing data-driven pass/fail criteria based on calibration statistics helps you avoid faulty measurements.
Using the multimeter correctly and calibrating it before each test session ensures you get dependable results. This process protects your water heater and supports safe, effective maintenance.
How to Test Water Heater Element with a Multimeter
Testing for Continuity in Heating Element Water Heater
Placing Probes on Water Heater Element Terminals
To begin, ensure you have already disconnected the wires from the water heater element. Set your multimeter to the resistance (ohms) setting. Take one probe and touch it to one screw terminal of the element. Place the other probe on the opposite terminal. This step allows you to test the heating element for continuity, which shows whether electricity can flow through the element.
Tip:
Always use one hand when placing probes to reduce the risk of electric shock. Keep your other hand away from the tank and any metal surfaces.
Reading the Multimeter Display
Once you have the probes in place, look at the multimeter display. A properly functioning water heater element will show a resistance value. If the display reads “OL” (open loop) or infinite resistance, the circuit is open and the element is likely burned out. If you see a reading close to zero, the element may have a short circuit. A normal reading falls within a specific range, which you will interpret in the next step.
Interpreting Resistance Readings for Water Heater Element
Normal Resistance Values for Water Heater
When you measure resistance, a healthy water heater element typically shows a value between 10 and 30 ohms. Research and practical guides confirm this range as the standard for most residential units. You can also calculate the expected resistance using the formula R = V² / P, where V is the voltage and P is the power rating of the element. If your reading matches the calculated value or falls within the 10–30 ohm range, your heating element water heater is likely in good condition.
Signs of a Faulty Water Heater Element
If your multimeter displays a value outside the normal range, you may have a problem. A reading of zero or near zero suggests a short circuit inside the element. An infinite or very high reading means the element has an open circuit and cannot heat water. In either case, you should replace the water heater element to restore proper function. Testing both upper and lower elements helps you identify partial failures that can cause inconsistent water temperature.
Checking for Short Circuits in Water Heater Element
Testing Between Terminals and Ground
To check for short circuits, keep your multimeter in the resistance setting. Place one probe on a terminal screw of the water heater element. Touch the other probe to a bare metal part of the tank (ground). Repeat this process for the other terminal. If the multimeter shows any reading other than “OL” or infinite resistance, the element has a short to ground.
Identifying Shorts in Water Heater Element
A short circuit in the heating element water heater can cause the circuit breaker to trip or prevent the heater from working. If you detect continuity between either terminal and ground, you must replace the element. Shorts often result from internal damage or corrosion. Always test both terminals to ensure the element is fully isolated from the tank.
Callout:
Follow a comprehensive method for testing to ensure safety and accuracy:
- Turn off the power at the circuit breaker.
- Remove the access panel and insulation.
- Disconnect wires from the element.
- Set the multimeter to ohms.
- Place probes on the element terminals and check resistance.
- Test between terminals and ground for shorts.
- Replace faulty elements promptly.
- Reassemble and restore power only after confirming all tests.
By following these steps, you can confidently test a water heater element and diagnose common issues. Regular testing and maintenance help extend the life of your water heater and ensure reliable hot water for your home.
Understanding Test Results for Water Heater Element
What a Good Heating Element Water Heater Looks Like
Expected Resistance Range for Water Heater
When you test a water heater element, you want to see resistance values that match manufacturer specifications. For most residential models, the expected resistance values fall between 10 and 30 ohms. If you wonder how many ohms should a water heater element read, check your unit’s label or manual. For example, if you ask how many ohms should a 4500-watt water heater element have, the answer is usually around 12 to 13 ohms. These numbers confirm that the element can heat water efficiently and safely.
A well-functioning water heater element does more than just pass the resistance test. Research shows that a good element maintains stable temperature set points, often around 66 °C, for both the top and bottom elements. This stability ensures consistent hot water throughout the tank. Proper insulation, such as an R-10 blanket and R-20 padding, helps the element keep temperatures above critical thresholds. This approach prevents microbial risks and improves energy efficiency.
- You should expect:
- Resistance readings within the manufacturer’s range.
- Stable hot water temperatures across the tank.
- No signs of overheating or rapid temperature drops.
No Continuity to Ground in Water Heater Element
A healthy water heater element will not show continuity between either terminal and the tank’s metal body (ground). When you place one probe on a terminal and the other on the tank, the multimeter should display “OL” or infinite resistance. This result means the element is electrically isolated and safe to use. If you see any other reading, you need to check for abnormal readings and consider replacing the element.
Tip:
Consistent resistance and no continuity to ground indicate a reliable heating element water heater system.
Signs of a Bad Water Heater Element
No Continuity in Water Heater Element
If you want to know how to check if a water heater element is bad, start by measuring continuity. Place the probes on both terminals. If the multimeter reads “OL” or infinite resistance, the circuit is open. This result means the element cannot heat water and needs replacement.
Continuity to Ground Detected
When you test between a terminal and the tank and see any resistance, the element has a short to ground. This condition poses a safety risk and can trip your circuit breaker. You should replace the element immediately.
Unusual Resistance Values in Water Heater
You may also find resistance values that do not match the expected range. If the reading is near zero, the element has a short circuit. If the value is much higher than specified, the element is failing internally. Both cases require you to replace the water heater element.
- Warning signs include:
- Excessively hot or inconsistent water temperatures.
- Unusual noises or visible corrosion on the element.
- Rising energy costs due to reduced efficiency.
Professional inspections often reveal sediment buildup or corrosion that impairs function. Testing with a digital multimeter remains the most reliable way to confirm faults.
Note:
Always check for abnormal readings and compare your results to the expected resistance values. Prompt action keeps your water heater safe and efficient.
Troubleshooting When You Test a Water Heater Element
Multimeter Not Reading During Water Heater Test
Dead Batteries in Multimeter
You may notice your multimeter gives inconsistent or no readings during a water heater element test. This issue often points to a low or dead battery. When the battery runs low, the device cannot provide accurate or reliable measurements. You should check the battery regularly and replace it when needed. Many technicians find that battery issues cause most multimeter malfunctions, especially when testing a water heater.
- Inconsistent readings
- No display or fluctuating numbers
- Unresponsive device
Tip:
Always keep spare batteries on hand. Replace the battery at the first sign of trouble to avoid errors during water heater diagnostics.
Incorrect Multimeter Settings
If your multimeter still does not read correctly, review your settings. Make sure you have selected the resistance (ohms) mode. Using the wrong setting can prevent the device from detecting the water heater element’s resistance. Double-check the range if your meter is not auto-ranging. Incorrect settings can lead to confusion and wasted time during water heater repair.
Unclear Results When You Test Water Heater Element
Dirty or Corroded Terminals on Water Heater
Dirty or corroded terminals can interfere with your test results. Corrosion blocks the probes from making good contact, which leads to unclear or fluctuating readings. You should clean the terminals with a wire brush or sandpaper before testing. This step ensures you get an accurate measurement of your water heater element.
Loose Connections on Water Heater Element
Loose connections also cause unreliable readings. If the wires or screws are not tight, the multimeter may not detect the full resistance of the water heater element. Tighten all connections before you test. Secure connections help you avoid misdiagnosis and unnecessary water heater repair.
What to Do If the Water Heater Element Is Faulty
Replacing the Heating Element Water Heater
If your test confirms a faulty water heater element, replacement is often the best solution. You should consider the age and condition of your water heater. Units over ten years old may benefit more from replacement than repeated repairs. Signs such as rusty water, frequent repairs, or inconsistent hot water suggest it is time for a new element or even a new water heater. Regular maintenance, like flushing the tank and checking the anode rod, can extend the life of your system.
When to Call a Professional for Water Heater Repair
Some situations require professional help. Major leaks, no hot water, or suspected gas leaks signal the need for expert intervention. If you do not feel confident or lack the right tools, call a licensed technician. Emergency repair services cost more but prevent bigger problems and higher expenses later.
Note:
Shut off the power and water supply immediately if you notice leaks or other emergencies. Temporary fixes can minimize damage until a professional arrives.
A professional can assess whether you need a simple water heater repair or a full replacement. Regular inspections and early action help you avoid costly breakdowns and keep your water heater running efficiently.
After You Test Water Heater Element: Reassembly and Power
Reassembling the Water Heater After Testing
Reconnecting Wires to Water Heater Element
You should begin reassembly by reconnecting the wires to the water heater element. Make sure each wire matches its original terminal. Tighten the terminal screws securely to prevent loose connections. Experts recommend checking each wire for signs of wear or damage before you finish. If you notice any frayed or corroded wires, replace them immediately. Tight connections help your water heater operate safely and efficiently.
Replacing Insulation and Cover on Water Heater
Once you reconnect the wires, replace the insulation you removed earlier. Position the insulation so it covers the element and wiring, but does not block access to controls or the burner panel. Place the access panel back over the opening and secure it with screws. You should always check that the cover sits flush against the tank. Proper insulation helps your water heater maintain temperature and improves energy efficiency.
Tip:
Before you move on, inspect the area for any leftover debris or tools. A clean workspace reduces the risk of future problems.
Experts suggest several steps for effective reassembly:
- Clean the burner assembly and remove any debris.
- Inspect the flue pipe, air intake, and vents for blockages.
- Tighten all electrical connections and check for wear.
- Verify that the tank is properly insulated.
- Run a short test cycle to confirm correct operation.
Restoring Power to Water Heater Safely
Double-Checking All Connections on Water Heater
Before you restore power, double-check every connection. Confirm that all wires are tight and the access panel is secure. Use a multimeter to verify there is no electrical continuity between the heating element and the metal cabinet. This step prevents shock hazards. If you find any damaged wiring or broken parts, repair them before proceeding. Never rush this inspection, as safety depends on your attention to detail.
Turning Power Back On to Water Heater
After you confirm everything is in place, you can restore power to the water heater. Turn on the circuit breaker at the main panel. If you drained the tank during maintenance, make sure the tank is full before you restore power. Test the safety valves to ensure they work properly. For complex repairs or if you feel unsure, contact a professional to protect your safety and warranty.
Note:
Always follow manufacturer guidelines and safety protocols when working with electrical appliances.
By following these steps, you ensure your water heater returns to service safely and efficiently.
Preventive Maintenance for Heating Element Water Heater
Regular Inspection of Water Heater Element
Checking Water Heater Elements Annually
You should inspect your water heater elements every year to maintain performance and prevent unexpected failures. Annual checks help you spot early signs of corrosion or overheating. During your inspection, look for green or white crusting on the terminals, which signals corrosion. Burnt terminals often indicate overheating or loose connections. Use a multimeter to test resistance; healthy elements usually show readings between 10 and 30 ohms. If you see 0 or 1 ohm, the element has failed and needs replacement.
- Listen for unusual sounds during heating cycles, such as pops, crackles, or hissing. These noises often point to scale buildup or element issues.
- Monitor heating times and water temperature. If you notice longer heating cycles or dips in temperature, the element may be degrading.
- Watch for higher energy bills, which can result from failing elements that draw more electricity.
Tip:
Schedule annual inspections for residential units. If you have an older system or live in a hard water area, consider semi-annual checks. For commercial properties or high-demand households, quarterly inspections help maintain consistent performance.
Monitoring for Signs of Wear in Water Heater
You need to stay alert for visible and operational signs of wear. Corrosion, scale buildup, and leaks can shorten the lifespan of your water heater element. Regularly check for water pooling around the base, rust on the tank, or mineral deposits on the element. These issues often signal the need for maintenance or replacement. After extreme weather events, inspect your system for damage to ensure continued safety and efficiency.
Extending the Life of Your Water Heater Element
Flushing the Water Heater Tank
Flushing your water heater tank removes sediment that accumulates from minerals in the water. Sediment buildup reduces heating efficiency and creates hotspots that can damage both the element and the tank. You should flush the tank at least once a year. In areas with hard water, increase the frequency to every six months. This simple step helps prevent scale buildup and extends the life of your heating element.
Regular flushing, combined with anode rod inspection and replacement, protects the steel tank from corrosion. Professional inspections ensure that heating elements and burners remain clean and function properly.
Using a Surge Protector for Water Heater
Power surges can damage sensitive components in your water heater, including the heating element. Installing a surge protector shields your system from voltage spikes caused by lightning or electrical faults. This small investment helps you avoid costly repairs and extends the lifespan of your water heater. Always choose a surge protector rated for your specific model and follow manufacturer guidelines for installation.
Maintenance studies recommend a structured schedule for preventive care:
- Perform monthly visual checks for corrosion, leaks, and scale buildup.
- Flush the tank and inspect the anode rod every three months.
- Test heating elements and pressure relief valves twice a year.
- Schedule a comprehensive professional inspection annually.
Consistent preventive maintenance keeps your water heater running efficiently and reduces the risk of unexpected breakdowns.
Testing your water heater element requires careful preparation, accurate measurements, and strict attention to safety. You protect your home and extend your system’s lifespan by following each step. If you feel uncertain at any point, contact a licensed technician. Regular maintenance delivers lasting benefits:
- Flushing the tank removes sediment and improves heating efficiency.
- Inspecting and replacing anode rods prevents corrosion.
- Checking for leaks and cleaning venting systems ensures safe operation.
- Annual professional inspections help detect issues early and maintain efficiency.
Stay proactive to enjoy reliable hot water and peace of mind.
FAQ
How often should you test your water heater element?
You should test your water heater element at least once a year. Regular testing helps you catch problems early and maintain efficient performance.
Can you test a water heater element without removing it?
Yes, you can test the element without removing it. Disconnect the wires, then use a multimeter to check resistance and continuity directly at the terminals.
What resistance reading means your water heater element is good?
A good element usually shows a resistance between 10 and 30 ohms. Always check your water heater’s manual for the exact value.
Why does your water heater keep tripping the breaker?
A faulty heating element or a short to ground often causes the breaker to trip. You should test the element for shorts and replace it if needed.
Is it safe to test a water heater element yourself?
Yes, you can test it safely if you turn off the power and follow all safety steps. Wear gloves and goggles for extra protection.
What tools do you need to test a water heater element?
You need a digital multimeter, a screwdriver, safety gloves, goggles, and a voltage tester. Keep all tools organized before you start.
Can a water heater element fail without visible damage?
Yes, elements can fail internally without showing signs outside. Always use a multimeter to confirm the element’s condition.
Tip:
If you feel unsure at any step, call a licensed professional for help.
