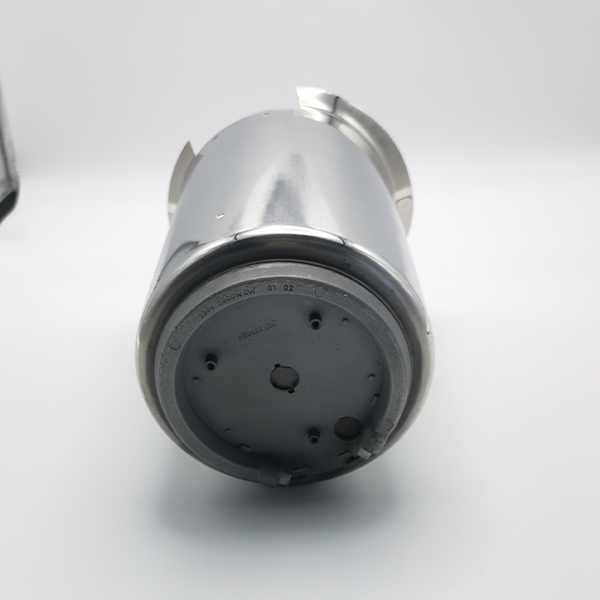

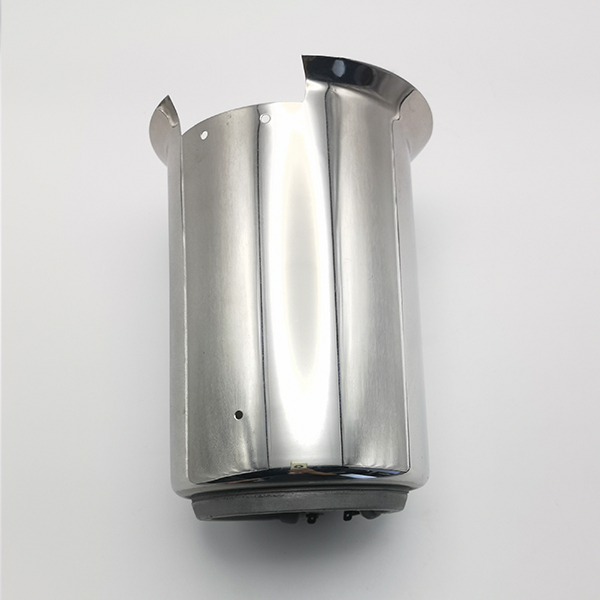

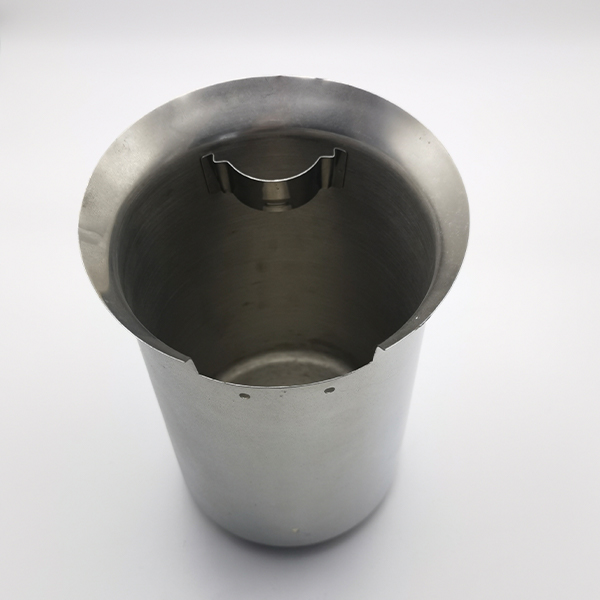

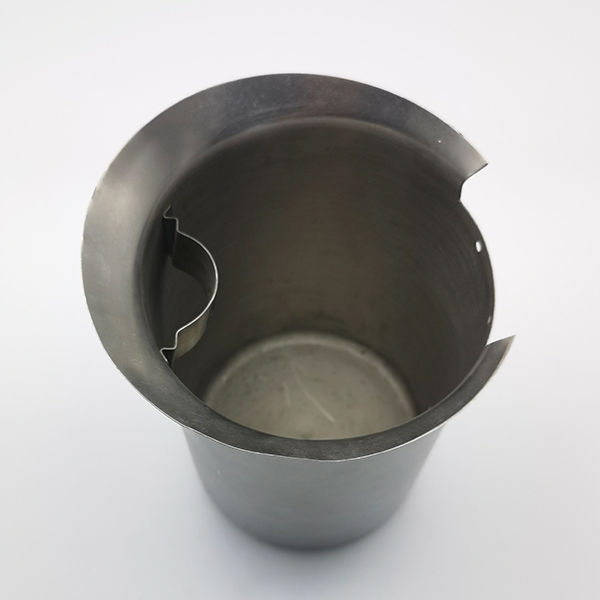

stainless steel kettle parts

Product Parameters (Stainless Steel Kettle Heating Parts for Electric Kettles, Coffee Machines, Electric Pots, etc.)

​​1. Power Rating​​: 500-3500W (customizable: 500-1500W for coffee machines/milk warmers; 1500-3500W for electric kettles/pots).
​​2. Operating Voltage​​: 110V/220-240V AC (dual-voltage compatible for global appliance integration).
​​3. Dimensions​​: Length: 80-400mm; Width: 50-200mm; Thickness: 0.5-1.5mm (304/316 stainless steel, food-grade compliant for direct liquid contact).
​​4. Surface Load​​: 3-12W/cm² (adjusted by application: 3-8W/cm² for gentle heating in coffee machines; 6-12W/cm² for rapid boiling in kettles/pots).
​​5. Max. Surface Temp.​​: ≤300°C (normal operation ≤250°C; dry-burn cutoff activated at >280°C to prevent overheating).
​​6. Dimensional Tolerance​​: ±0.15-0.25mm (precision machining for secure fit with kettle bases, coffee machine boiling chambers, or pot bottoms).

Customization: Shape (spiral/coiled/flat plate), lead wire (silicone/PTFE/tinned terminals), or anti-corrosion coatings (e.g., PTFE layer for acidic beverages).

Key Advantages

1. ​​Kettle-Specific Expertise​​: 30+ years designing heating parts for 80+ electric kettles, coffee machines, and multi-use pots, optimized for efficient and uniform boiling.
2. ​​Pre-Made Molds​​: 20+ standard molds for common kettle/pot component sizes (e.g., 200mm×120mm kettle bases, 150mm×80mm coffee machine heating plates) reduce prototyping time by 40%.
3. ​​Food-Safe Materials​​: 304/316 stainless steel certified to FDA (USA) and GB 4806.9 (China) for direct contact with water, coffee, milk, and acidic liquids.
4. ​​Rigorous Testing​​: Each unit validated for dry-burn (300°C/30min), insulation resistance (>2MΩ), and thermal cycling (-40°C to 300°C) to ensure long-term reliability.
5. ​Гибкое производство​: Supports small batches (100 units) to bulk orders (10k+ units) with 12-25 days lead time, accommodating both standard and custom designs.
