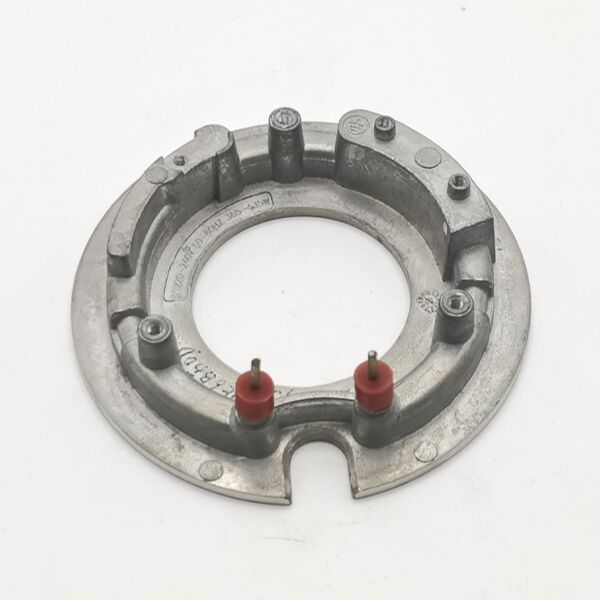

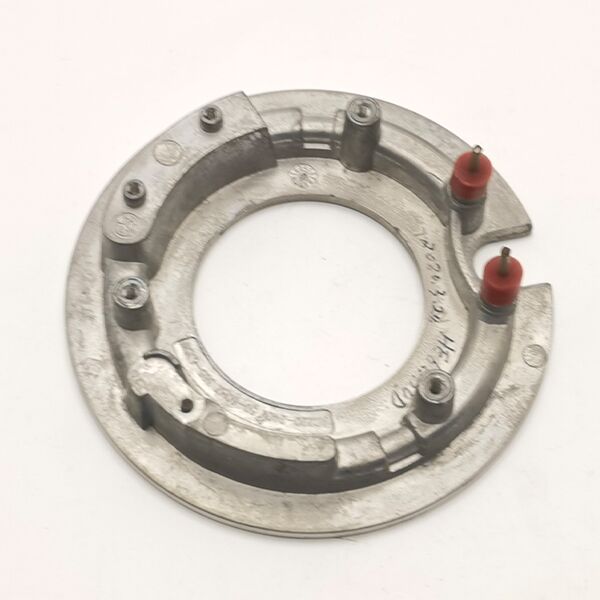

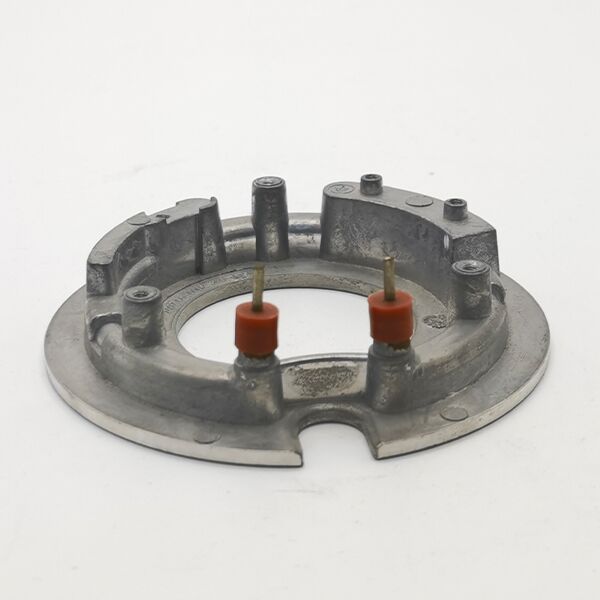

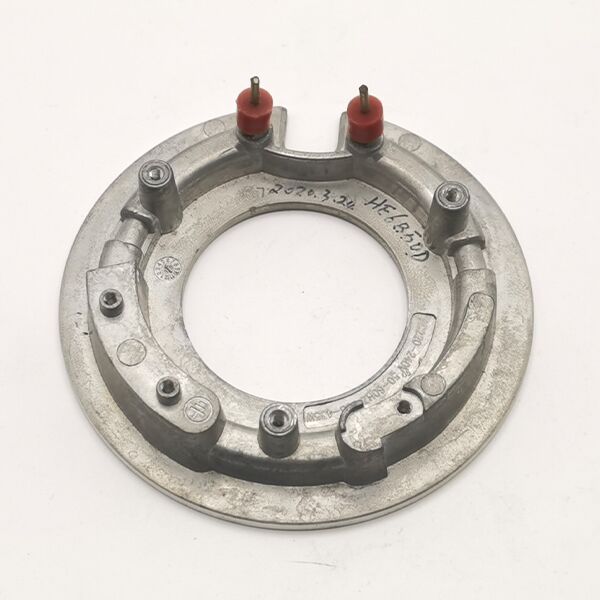

Aluminum heating plate elements

Применение продуктов

Capsule coffee machine steam module, electric iron soleplate, instant electric water heater, electric pressure cooker, hanging iron heating core.

Aluminum Heating Plate Elements Specifications (Core Parameters)

Product Characteristics (Core Features)

• ​​Rapid & Uniform Heating​​: High-conductivity nickel-chromium alloy core enables fast heat transfer, reducing preheating time to 2-4 minutes for 1.5L water boiling (100℃) in 1500W models. The die-cast aluminum base ensures even heat distribution, eliminating cold spots critical for consistent performance in electric kettles (boiling), soy milk makers (grinding/heating), and blenders (hot blending).
• ​​Multi-Appliance Adaptability​​: Customizable dimensions (length: 150-600mm; width: 50-150mm) and slot-compatible design fit mainstream devices—electric kettles (bottom slots), coffee machines (brew chamber heating plates), electric pots (base heating elements), bottle warmers (encircling rings), and blenders (motor compartment heating). Direct installation without modification.
• ​​Corrosion & Scale Resistance​​: Die-cast aluminum housing resists oxidation and steam corrosion; the smooth anodized or ceramic-coated surface minimizes limescale adhesion (reduces cleaning frequency by 40% vs. uncoated aluminum). Nickel-chromium alloy core withstands mineral deposits, extending lifespan in high-moisture environments (e.g., daily use in humid kitchens).
• ​​Safe & Reliable Operation​​: Insulated aluminum housing prevents electric leakage; built-in overheat protection (auto-shutoff at >350℃) safeguards against dry burning or overheating. Optional temperature sensor interfaces support ±5℃ precise control (e.g., 40-60℃ constant temperature for bottle warmers, 90-105℃ extraction for coffee machines).
• ​​Energy Efficient Design​​: Thermal efficiency ≥92%, reducing power consumption compared to traditional heating elements. For example, boiling 1L water in an electric kettle takes 2-4 minutes with 1000W models, lowering energy waste.
• ​​Lightweight & Durable​​: Aluminum alloy density (2.7g/cm³) makes the element 30%-40% lighter than stainless steel alternatives, ideal for weight-sensitive devices like portable coffee machines or electric kettles. Optimized thermal expansion matching (aluminum and nickel-chromium have similar coefficients) reduces fatigue, ensuring stable performance under high-frequency use (e.g., 2 hours daily operation).
• ​​Cost-Effective Solution​​: Die-casting technology lowers production costs while maintaining performance, making it a competitive choice for both OEM manufacturers and aftermarket replacements.
