If your kenmore oven fails to heat, you likely face a faulty heating element. You can replace heating element issues yourself. Many oven owners encounter this problem, especially with older household appliance heating elements. You do not need to rely on heating element manufacturers or Jinzhong Electric Heating for a solution. With basic tools, you can fix your kenmore oven and restore normal operation.
Always inspect the Heating Element when your oven is not heating up, as this part often wears out first.
Why Your Kenmore Oven Is Not Heating Up
Common Reasons an Oven Stops Heating
When your Kenmore oven is not heating up, you face several possible causes. Most heating issues stem from electrical or mechanical failures. You may encounter a faulty heating element, a malfunctioning temperature sensor, or damaged wiring. Mechanical problems such as a misaligned oven door or a worn door gasket can also prevent proper heating.
Here is a breakdown of the most common causes based on appliance repair statistics:
| Cause | Percentage of Heating Issues | Description and Symptoms |
|---|---|---|
| Oven Bake Element | 86% | Leading cause of heating failure; damage due to wear, debris buildup, electrical issues; symptoms include no heat, uneven heating, and no glowing element. |
| Oven Broil Element | 13% | Secondary cause; coil filaments weaken or break; symptoms include broil function failure, slow preheat, and no heat. |
You should also consider electrical failures such as control board issues or damaged wiring. Mechanical failures like a dirty burner or a misadjusted oven door can contribute to heating problems. Regular inspection and cleaning help prevent these issues.
Signs the Heating Element Needs Replacement
You can spot signs of a failing heating element by observing both visual and functional symptoms. Look for cracks, blisters, or discoloration on the element. If the element does not glow bright orange during operation, it likely needs replacement. Physical damage such as burns, scorch marks, or breaks also indicate a problem.
Functional signs include uneven cooking, longer cooking times, and food not cooking properly. You may notice unexpected increases in electricity bills if the element draws more power due to malfunction. If your oven is not heating up or you experience cold spots, the heating element may be the culprit.
Tip: Regularly inspect the heating element for visible damage and monitor cooking performance to catch early signs of failure.
How to Confirm the Heating Element Is the Problem
You can confirm a faulty heating element using a multimeter. Follow these steps:
- Unplug the oven and allow it to cool completely.
- Remove the heating element by unscrewing the panel and gently pulling out the element to expose its terminals.
- Disconnect the wires from the terminals using needle-nose pliers.
- Set the multimeter to the lowest ohm setting.
- Calibrate the multimeter by touching the probes together.
- Place the element on a non-conductive surface.
- Touch the probes to the two terminals.
- Read the resistance value:
- 0 to 50 ohms means the element is working.
- Above 50 ohms or infinite reading means the element is broken.
If the element passes the continuity test but your Kenmore oven is still not heating up, you should check other components such as the temperature sensor or control board. You may need to call a professional if troubleshooting does not resolve the issue.
Safety Steps Before You Replace Heating Element
Tools and Replacement Parts for Kenmore Oven
Before you start any repair, gather the right tools and replacement parts. You need a multi screwdriver, a 5/8″ wrench, a 5/16″ nut driver, and a 3/4″ wrench. These tools help you remove and secure the heating element. For most Kenmore ovens, OEM heating elements such as WB44T10010, WB44T10011, or WCI 316075103 fit well. These elements sit at the bottom of your electric oven and provide the heat needed for baking. Always disconnect the appliance from all utilities before you begin. This step prevents electrical hazards and keeps you safe while you fix your oven.
| Category | Details |
|---|---|
| Replacement Parts | OEM heating elements compatible with Kenmore ovens, e.g., WB44T10010, WB44T10011, WCI 316075103 |
| Essential Tools | Multi screwdriver, 5/8″ wrench, 5/16″ nut driver, 3/4″ wrench |
| Safety Precautions | Disconnect power before installation |
Tip: Keep WD-40 handy if you find any stuck screws during the process.
How to Disconnect Power to the Oven
You must disconnect power to your Kenmore oven before starting any repair. This step protects you from electric shock and prevents accidental injury. Follow these steps:
- Unplug the oven from the wall outlet. If you cannot reach the plug, shut off the circuit breaker that supplies power to the oven.
- For gas ovens, turn off the gas supply as well.
- Wait until the oven and heating element cool completely before you touch any internal parts.
These actions ensure your safety and prevent electrical hazards during the repair process.
Safety Tips for DIY Oven Repairs
Safety should always come first when you repair your oven. Follow these important tips to protect yourself and your home:
- Disconnect electrical power before you start any repair to avoid electric shock.
- Wear personal protective equipment such as safety goggles, insulated gloves, and rubber-soled shoes.
- Allow the heating element to cool completely before handling it to prevent burns.
- Keep your workspace well-lit and organized to avoid accidents.
- Use the correct tools for each task to prevent injury and damage to your oven.
- Always reconnect ground wires to prevent electrical shocks.
- Do not attempt to fix or replace parts unless recommended by the manufacturer.
- If you smell gas, do not operate electrical switches or phones. Leave the area and call your gas supplier or fire department immediately.
Note: Never use your oven to heat a room. This practice can lead to carbon monoxide poisoning and fire hazards.
By following these safety steps, you can complete your Kenmore oven repair confidently and reduce the risk of injury or damage.
Step-by-Step Guide to Replace Heating Element in Kenmore Oven
Accessing the Oven Heating Element
Removing Oven Racks and Bottom Panel
You need to create a clear workspace before you begin the heating element replacement. Start by turning off the power to your Kenmore oven. Unplug the appliance or switch off the circuit breaker. Move the oven away from the wall if necessary. Open the oven door fully. Remove all oven racks to expose the lower bake element and provide room for your hands and tools. If your model includes a bottom panel, unscrew and lift it out. This step gives you direct access to the heating element.
Tip: Removing the oven door can make the process easier. Lift the hinges after opening the door fully and set the door aside.
Locating the Bake Element in Your Kenmore Oven
You will find the lower bake element at the bottom of the oven cavity. Look for a metal coil attached to the rear wall. The bake element usually sits behind a mounting bracket and is secured with screws. Take note of its orientation and position. This observation helps you during installation of the new heating element.
Removing the Old Heating Element
Unscrewing and Disconnecting Wires
Begin by wearing safety glasses and gloves. Unscrew the mounting screws or clips holding the lower bake element in place. Keep these screws safe for reinstallation. Gently pull the heating element toward you about three inches. Avoid pulling on the wires directly. Use needle-nose pliers or your fingers to disconnect the metal spade connectors from the element terminals. Photograph or note the wire connections before you disconnect them. This step ensures you reconnect the wires correctly during heating element replacement.
Safely Handling the Old Element
Support the wires near the terminals as you loosen or tighten screws. This precaution prevents bending or damaging the wires. Carefully slide the old heating element out from its brackets or clips. Avoid letting the wires slip behind the oven wall. If you encounter stuck screws, apply a small amount of penetrating oil and allow it to sit. Do not use flammable lubricants unless you clean them off thoroughly. Remove the old element and set it aside for disposal.
Note: If you feel unsure at any point, seek professional help to avoid damaging your Kenmore oven.
Installing the New Oven Heating Element
Connecting Wires to the New Element
Attach the wire connectors to the terminals of the new lower bake element. Make sure each connector fits snugly. Do not overtighten the screws, as this can damage the terminals. Support the wires as you connect them to prevent bending. Double-check that the wires match the orientation you noted earlier.
Securing the New Element in Place
Align the new heating element with the mounting holes on the rear wall of the oven. Push the element ends through the holes at the back. Reinstall the mounting screws or clips to secure the element. Replace the bottom panel if your oven has one. Slide the oven racks back into position. If you removed the oven door, hook the hinges onto the mounting pins and push the hinge locks back. Restore power by plugging in the oven or switching on the circuit breaker. Slide the appliance back into place, ensuring the anti-tip bracket is engaged.
Callout: Always check that the new heating element sits firmly and does not wobble. A secure fit ensures proper heating and safe operation.
You have now completed the replace heating element process. Your Kenmore oven is ready for testing and regular use.
Test New Oven Heating Element After Installation
Restoring Power to the Kenmore Oven
After you finish installing the new heating element, you need to restore power to your Kenmore oven. Follow these steps to ensure a safe and effective process:
- Confirm that you have reassembled the oven backing and secured all screws.
- Plug the oven back into the power outlet. If you disconnected the circuit breaker, switch it back on.
- Push the oven gently into its original position. Make sure the anti-tip bracket is engaged.
- Turn on the oven and select the bake function. Observe the element for signs of heating, such as glowing or warmth.
- For added accuracy, place an oven thermometer inside and monitor the temperature as the oven heats up.
Tip: Always double-check that you have reconnected all wires and replaced panels before restoring power. This step prevents electrical hazards and ensures proper operation.
Running a Test Bake Cycle
You should run a test bake cycle to verify that the new heating element works correctly. Use the following table to guide your checks and expected results:
| Step/Check | Description/Expected Result |
|---|---|
| Continuity Test | Use a multimeter to confirm the bake element is not open circuit. |
| Current Draw Measurement | During the bake cycle, the bake element should draw about 10 amps. |
| Temperature Sensor Resistance | Check the sensor resistance: ~1080 ohms at 70°F, ~2875 ohms at ~1000°F. |
| Element Cycling Observation | The bake element cycles on and off to maintain the set temperature. |
| Temperature Verification | Compare the oven thermometer reading to the set temperature on the oven display. |
| Connection Inspection | Inspect all connections for looseness or damage. |
| Control Board Function | Confirm the control board cycles the elements correctly and reaches the set temperature. |
Set your oven to a standard baking temperature, such as 350°F. Watch the lower element as it cycles on and off. Use a thermometer to compare the actual temperature with the oven’s display. If the oven reaches and maintains the set temperature, the installation succeeded.
What to Check During Testing
During the test new oven heating element process, you need to observe several key factors:
- Confirm the bake element glows and produces consistent heating.
- Use a multimeter to check continuity and verify the element is intact.
- Measure the current draw; expect around 10 amps for the bake element.
- Check the resistance of the temperature sensor at room temperature and during heating.
- Observe the cycling pattern of both bake and broil elements. The bake element should cycle to maintain temperature, while the broil element may cycle briefly during preheat.
- Compare the oven thermometer reading with the set temperature. The readings should match closely.
- Inspect all electrical connections for looseness or damage.
- If the oven does not reach the set temperature, consider a control board issue.
Note: If you notice any irregularities, such as the oven failing to heat or inaccurate temperature readings, you may need to inspect other components or seek professional assistance.
By following these steps, you ensure your Kenmore oven operates safely and efficiently after replacing the heating element.
Troubleshooting If Your Kenmore Oven Is Still Not Heating Up
Double-Check Heating Element Installation
If your oven is still not heating up after replacing the element, you should double-check your installation. Follow these steps to ensure everything is correct:
- Disconnect power to the oven before you inspect or test anything. Safety comes first.
- Examine the oven’s electrical connections and wiring harness. Look for visible damage or loose connections.
- Use a multimeter to test if the control board sends voltage to the heating element terminals.
- Inspect related components such as the thermal fuse and temperature sensor. Faults in these parts can interrupt power to the element.
- Replace any defective parts you find during your inspection.
- Access the control board by pulling the oven forward, unplugging it, and removing the screws that secure the back control panel. Remove the control board screws as well.
- If you find a faulty control board, replace it. Most control boards are plug-and-play and take about 20–25 minutes to install.
Tip: Always document wire positions before disconnecting anything. This step helps you reconnect everything correctly.
Other Oven Parts That May Cause Heating Issues
If your oven is still not heating properly, other components may be at fault. You should consider these common culprits:
- The oven temperature sensor can test normal at room temperature but may drift out of range at higher temperatures. This drift can cause heating problems.
- The control board or its relays may fail. If you notice only partial voltage reaching the bake element or no voltage to the upper broil element, the control board may be the issue.
- A faulty bake relay on the control board can cause slow heating and clicking noises from the upper control panel.
- The temperature sensor can send incorrect signals to the control board, leading to improper cycling of the heating element.
- Testing the oven sensor resistance with a multimeter and inspecting the control board for visible damage can help you diagnose these issues.
You may need to replace the sensor or control board to resolve heating problems that do not involve the element itself.
When to Call a Professional for Oven Repair
Sometimes, you need expert help. Call a professional for oven and range repair if you notice any of these signs:
- Food does not cook properly, even when you follow correct times and temperatures.
- You see uneven cooking or burning in some areas, which often points to heating element problems.
- The oven preheats slowly or does not reach the correct temperature, as verified by an oven thermometer.
- The oven turns off unexpectedly during use.
- Components such as the thermostat, heating elements, temperature sensor, control board, or convection motor malfunction.
| Symptom or Sign | Possible Cause(s) |
|---|---|
| Oven not heating or heating poorly | Faulty power cord, plug, socket, or power switch |
| Oven turns off unexpectedly | Malfunctioning thermostat |
| Slow cooking or burning food | Defective thermostat |
| Oven not starting if timer unset | Timer not set (user error) |
| Uneven cooking | Heating element failure |
| Control panel/programs not working | Control board failure |
| Temperature sensor failure | Sensor burned out due to prolonged high heat |
Note: If you have checked all components and your Kenmore oven is still not heating up, a professional can diagnose and repair complex electrical or control board issues.
Maintenance Tips to Prevent Oven Not Heating Up Again
Regular Cleaning and Inspection of Heating Element
You maintain optimal oven performance by cleaning and inspecting the heating element regularly. Grime and food debris can build up on the element, causing sensor and igniter malfunctions. You should always clean the oven interior and heating elements when they are cold. Spot cleaning spills as soon as they occur prevents stubborn buildup.
The following table shows how often you should clean and inspect the heating element based on usage:
| Usage Level | Recommended Cleaning Frequency |
|---|---|
| Frequent use (3-4x/week) | Every 3 months |
| Moderate use (1-2x/week) | Every 4 to 6 months |
| Light use (<1x/week) | Every 6 months to annually |
During cleaning, inspect the heating element for cracks, warping, or discoloration. Avoid harsh chemicals or abrasive materials to protect the element. You should also check oven settings to confirm you use the correct bake or broil mode. Reset the circuit breaker if you notice any power issues.
Tip: Schedule routine maintenance to ensure your Kenmore oven functions properly and to prevent unexpected heating failures.
Spotting Early Signs of Oven Element Failure
You can prevent uneven heating and costly repairs by spotting early warning signs of element failure. Watch for visible damage such as cracks, blisters, or burn marks on the bake element. If your oven cannot reach or maintain the set temperature, the heating element may be failing. Uneven cooking results and prolonged cooking times also indicate trouble.
In severe cases, you may notice sparking, smoking, or unusual noises during operation. If you observe any of these symptoms, replace the heating element promptly to maintain safe and efficient oven operation.
- Visible damage on the bake element (cracks, blisters, burn marks)
- Oven’s inability to reach or maintain the set temperature
- Uneven cooking results
- Prolonged cooking times
- Sparking, smoking, or unusual noises during operation
When to Replace Other Kenmore Oven Parts
You should consider replacing other oven parts if heating issues persist after installing a new element. A faulty temperature sensor can prevent the oven from heating. Use a multimeter to check the sensor for continuity. Inspect the electronic control board for error codes or visible damage. Loose wiring connections between the control board and heating elements can also cause problems.
Replacing the sensor or control board usually resolves heating issues. Always disconnect power before testing or replacing any parts.

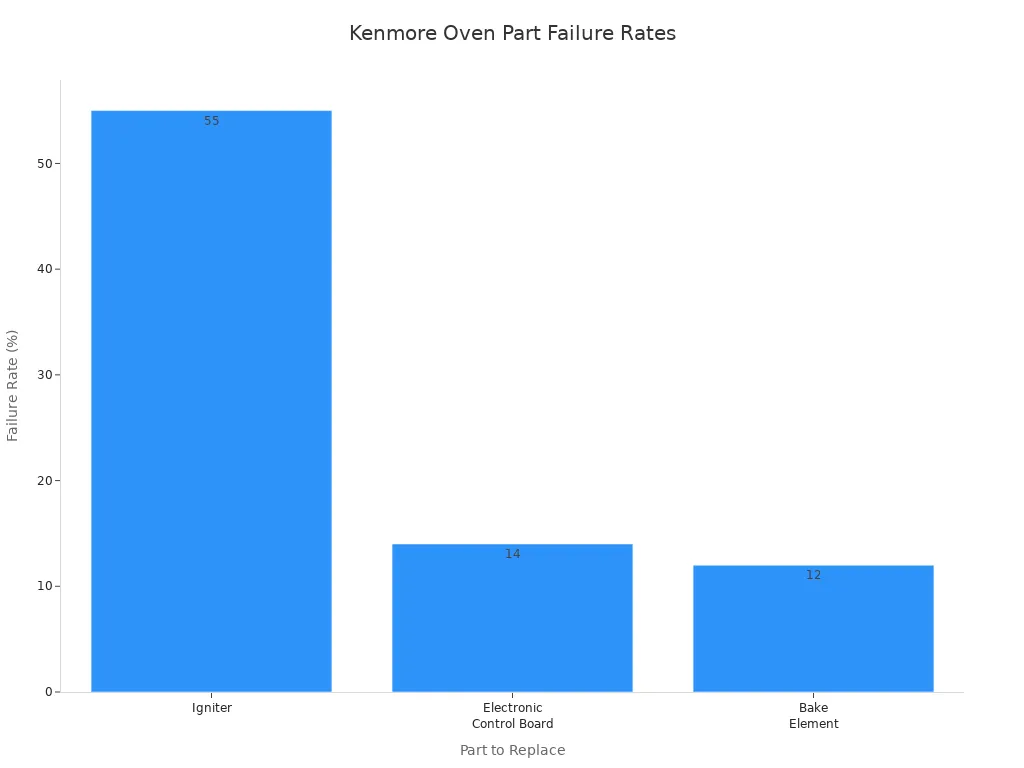

The following chart compares failure rates of common Kenmore oven parts:
| Part to Replace | Failure Rate / Frequency | Symptoms / Indicators | Replacement Advice |
|---|---|---|---|
| Igniter | 55% | Oven or burner not igniting, clicking without ignition, no visible spark, delayed ignition | Replace when igniter fails to ignite or shows malfunction signs |
| Electronic Control Board | 14% | No power or heating, oven won’t turn off, clicking or burning odor, communication failures | Replace after professional diagnostic confirms malfunction |
| Bake Element | 12% | Visible damage (cracks, blisters), oven won’t reach/maintain temperature, sparking/smoking | Replace if element is damaged or fails to heat properly |
Note: For convection ovens, faulty temperature sensors and control boards are common causes of no heat. Professional diagnostic testing helps you avoid unnecessary part replacements.
Cost and Time to Replace Heating Element in Kenmore Oven
Average Price of Heating Elements and Tools
You can expect to pay a reasonable price for a replacement heating element for your Kenmore oven. Most compatible elements cost about $30. This price remains consistent across major brands, including Whirlpool, Frigidaire, and Maytag. If you already own basic tools, you will not face much additional expense. However, if you need to purchase tools, plan for an extra $10 to $30. These tools will serve you for future oven repairs as well.
| Brand(s) Covered | Average Price (USD) |
|---|---|
| Whirlpool, Kenmore, Frigidaire, Maytag | Approximately $30 |
Essential Tools for DIY Replacement:
- Phillips and flathead screwdrivers
- Pliers
- Work gloves
- Multimeter
Purchasing tools is a one-time investment. You can use them for many household repairs, reducing your long-term costs.
How Long the DIY Oven Repair Takes
You can complete a heating element replacement in less than 30 minutes. The process involves a few straightforward steps:
- Disconnect all power sources to the oven.
- Remove oven racks and, if needed, the door for easier access.
- Unscrew and disconnect the faulty heating element.
- Install the new element, reconnecting all wires and securing it in place.
- Restore power and test the oven to confirm proper heating.
Most people find this repair manageable, even with limited experience. You save time by avoiding scheduling and waiting for a technician.
Comparing DIY vs. Professional Oven Repair
When you choose to repair your oven yourself, you save both money and time. DIY repairs for a Kenmore oven heating element typically cost between $22 and $63 for parts. You spend less than 30 minutes on the task. In contrast, professional repair services charge $150 to $450 for the same job. Labor rates range from $50 to $125 per hour, and you may wait days for an appointment.
| Repair Type | DIY Time Estimate | DIY Cost Range (Parts) | Professional Cost Range | Tools Required | Notes on Risks and Benefits |
|---|---|---|---|---|---|
| Oven Bake Element | ~15 minutes | $22 to $63 | ~$240 | Phillips screwdriver | DIY saves $180 to $220; quick and simple; risk of buying wrong parts or botching repair. |
DIY repair offers significant savings and quick results for simple oven issues. However, you face risks such as safety hazards, incorrect installation, or voiding warranties. Professional repair costs more but provides expertise, safety, and warranty protection.
You can often fix your Kenmore oven by choosing to replace heating element parts yourself. With the right tools and safety steps, you restore reliable heating and enjoy consistent cooking results. If your oven still fails to heat, underlying issues like a faulty control board or thermostat may be the cause. These problems occur more often than you might expect.
When basic repairs do not solve the problem, contact a professional for accurate diagnosis and repair.
FAQ
How do I know if my Kenmore oven heating element is bad?
You can check for visible damage, such as cracks or blisters. If the element does not glow during use or your oven fails to reach the set temperature, you likely need a replacement.
Can I reset my Kenmore oven if it stops heating?
Yes. You can reset my kenmore oven by unplugging it for several minutes or switching off the circuit breaker. After restoring power, test the oven. If heating issues continue, inspect the element or control board.
What tools do I need to replace the heating element?
You need a Phillips screwdriver, flathead screwdriver, pliers, and work gloves. A multimeter helps you test the element. Always disconnect power before starting any repair.
How long does it take to replace a Kenmore oven heating element?
Most people complete the replacement in 20 to 30 minutes. The process involves removing racks, disconnecting the old element, installing the new one, and testing the oven.
Is it safe to replace the heating element myself?
You can safely replace the element if you follow safety steps. Always disconnect power, wear gloves, and use proper tools. If you feel unsure, contact a professional.
What should I do if my oven still does not heat after replacing the element?
Double-check your installation. Inspect wiring, the temperature sensor, and the control board. If you cannot find the problem, consider calling a professional for further diagnosis.
How often should I inspect or clean the oven heating element?
Inspect and clean the heating element every three to six months, depending on how often you use your oven. Regular maintenance helps prevent future heating problems.
Tip: Schedule routine checks to catch early signs of wear or damage.
