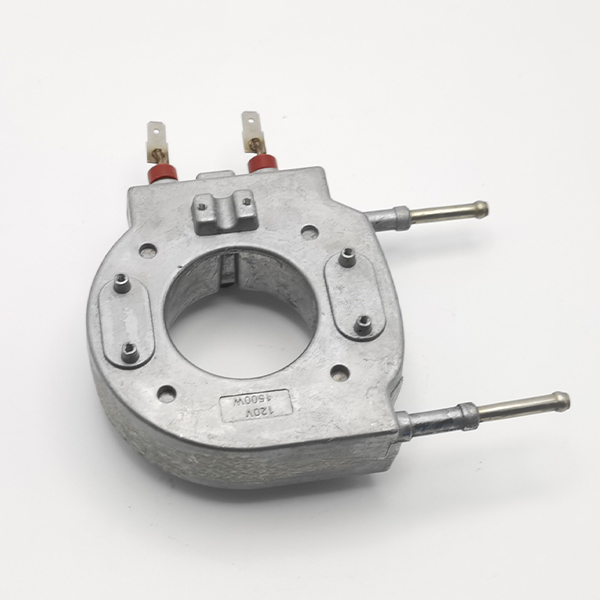

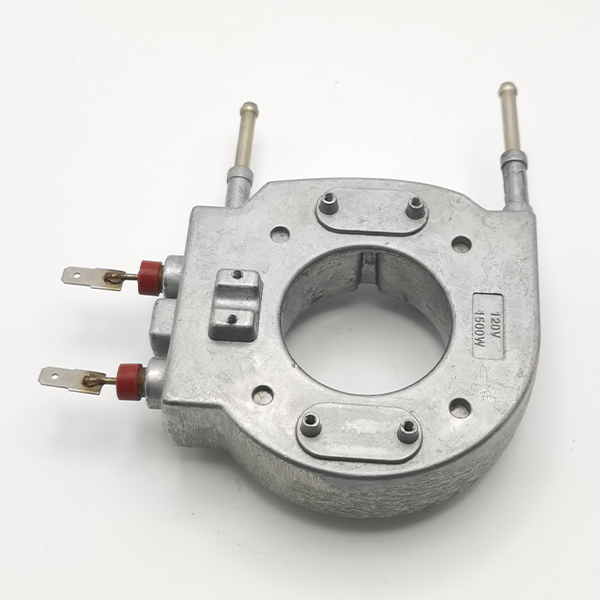

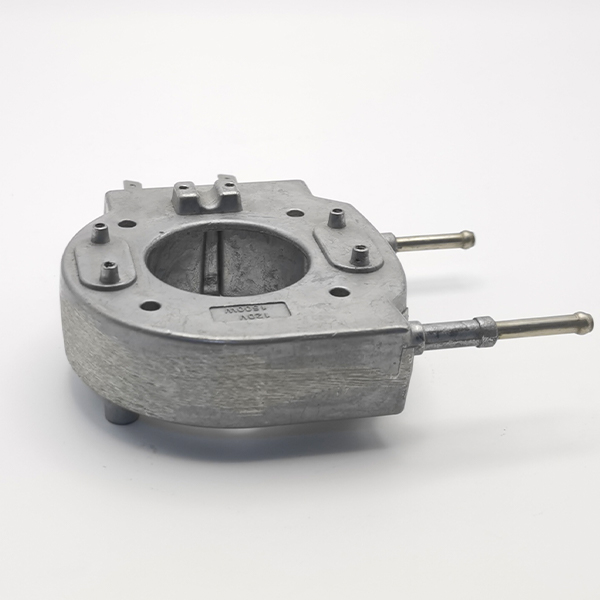

The water heating element adopts die-cast aluminum alloy substrate and thick film resistor technology, integrated with PID temperature control module, achieves 3 seconds fast heating, energy efficiency ≥ 96%, working temperature range 50℃-150℃, supports power (800W-3000W) customization, has IPX7 waterproof and anti-scale corrosion performance, adapts to high-frequency continuous water circulation scenes, and has a lifespan of more than 30,000 hours, meeting the needs of high-stability fluid heating.
Minimum order quantity: 1000
Delivery time: 15-25 days
Factory location: Zhongshan, Guangdong, China
Coffee machine/tea machine hot runner system, electric water heater, medical sterilization equipment, laboratory constant temperature water bath, industrial water circulation heater, commercial beverage machine (such as Nespresso/Dolce Gusto), hotel commercial electric water heating equipment, new energy vehicle battery liquid cooling heating system.
| Parameter | Specification Range |
|---|---|
| Power Range | 500W-3000W |
| Operating Voltage | 220V (single-phase, household); 380V (three-phase, commercial); 480V (optional, export) |
| Resistance Value | 3Ω-50Ω (single unit or multi-unit combination, matched to power/voltage) |
| Operating Temperature | Surface: 80℃-200℃ (normal); Water medium: 60℃-100℃ (target heating range) |
| Material | Heating element: Nickel-chromium alloy (Cr20Ni80, Φ0.5mm-Φ1.5mm); Housing: 304/316 stainless steel (food-grade, corrosion-resistant) |
| Dimensions | Length: 100mm-600mm; Width: 50mm-200mm; Thickness: 20mm-50mm (compatible with mainstream water thermoblock slots) |
| Service Life | 5000h-12000h (normal use, no scaling/dry burning) |
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
