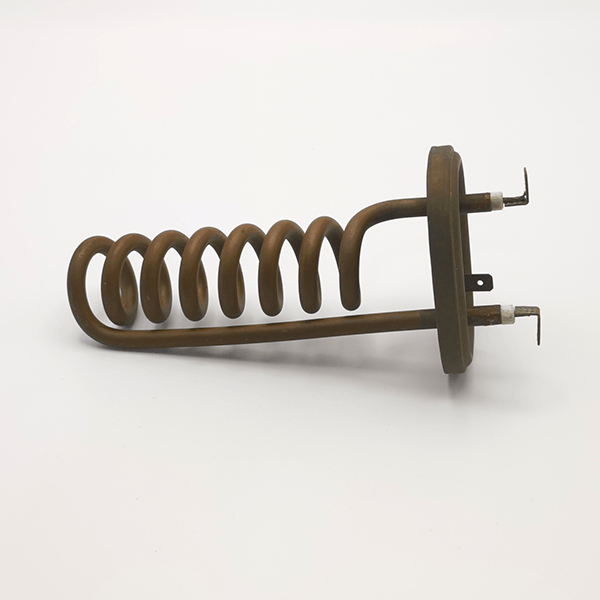

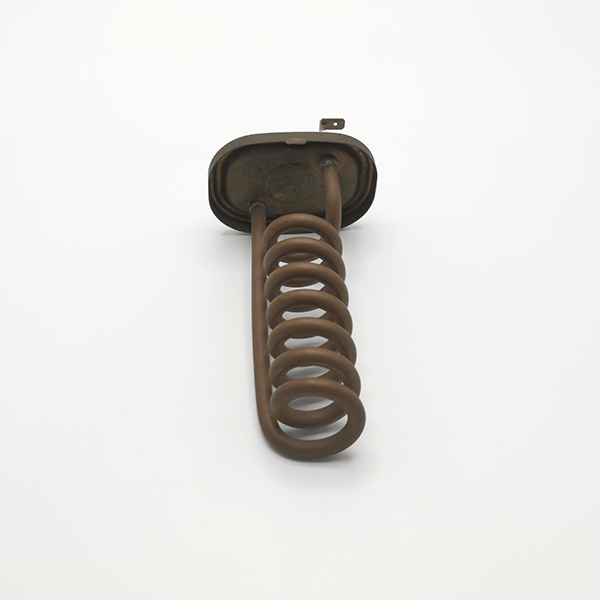

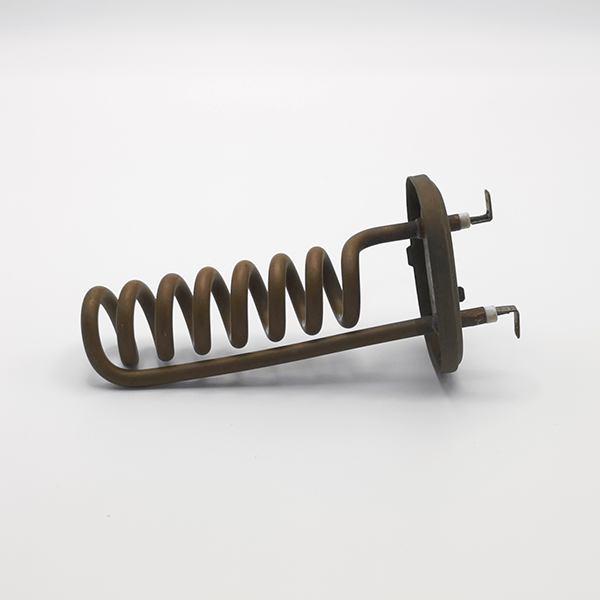

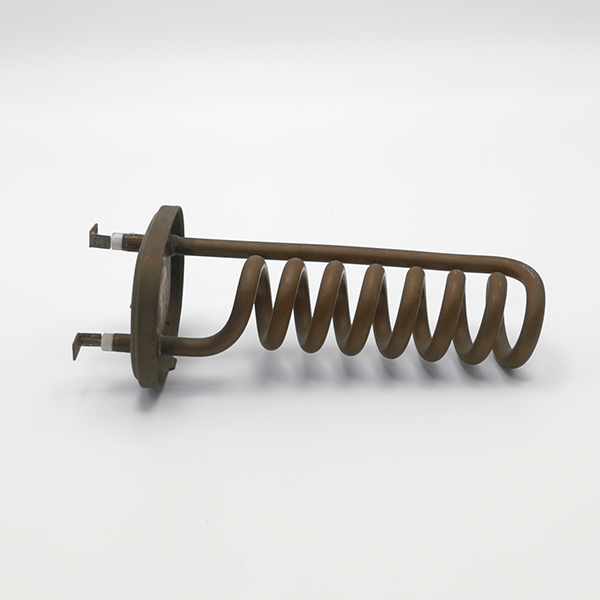

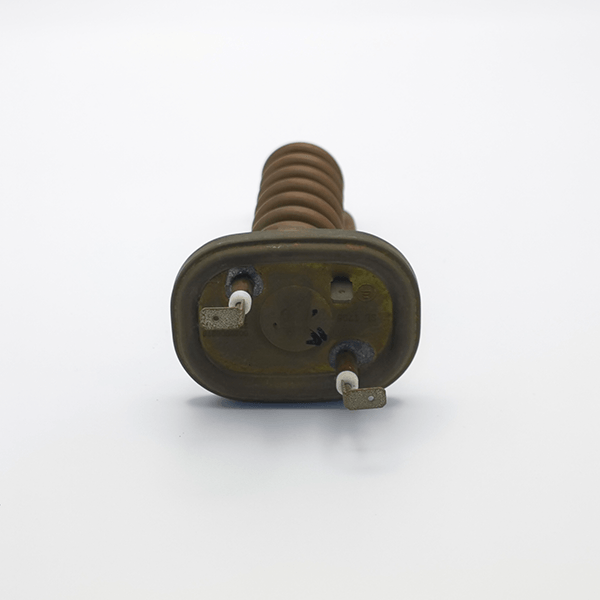

The tubular plug-in water heating element is designed for water storage tanks. It adopts a stainless steel (304/316L) tube body and a nickel-chromium alloy resistance wire combination process. It has a built-in magnesium rod for corrosion protection, an integrated PID temperature control module and an NTC temperature sensor, which can achieve rapid heating (average 3-5 minutes), energy efficiency ≥96%, an operating temperature range of 50℃–80℃, and supports power (1500W–5000W) customization. The surface has double-layer insulation protection, meets the IPX4 splash-proof standard, has anti-dry burning, anti-scaling coating and anti-leakage protection, is suitable for high-frequency water storage heating scenarios, has a lifespan of more than 50,000 hours, and complies with North American UL and EU CE certification.
MOQ：1000PCS
Lead time：25days
Factory location: Zhongshan, Guangdong, China
Household water storage electric water heaters, commercial solar auxiliary heating systems, hotel/hospital central hot water boilers, industrial storage tank constant temperature control, hot spring/swimming pool circulation heating modules, laboratory constant temperature water tanks, agricultural greenhouse water tank heating, heat pump system auxiliary heat exchange unit, ship fresh water heater.
Power range: 1500W~5000W (customizable, suitable for household storage electric water heaters and commercial solar auxiliary heating scenarios)
Working voltage: 24V~480V AC/DC (wide voltage design, compatible with home appliances and industrial equipment)
Resistance value: 0.5Ω~20Ω (matched by voltage and power, supports customization of stainless steel tube body)
Working temperature: 50°C~80°C (stainless steel 316L is resistant to chloride ion corrosion and suitable for warm water circulation system)
Material: stainless steel 304/316L tube body, nickel-chromium alloy resistance wire, magnesium rod anti-corrosion layer (customizable double-layer insulation structure)
Dimensions: length 500mm~3m, diameter 10mm~50mm (supports threaded interface and special-shaped tube body processing)
Service life: 50,000~80,000 hours (anti-oxidation coating + magnesium rod sacrificial anode protection, suitable for high-frequency water use scenarios)
High-efficiency thermal conductivity: stainless steel tube body + nickel-chromium alloy resistance wire, thermal efficiency ≥96%, 3-5 minutes fast heating to meet the needs of storage electric water heaters.
Precise temperature control: integrated NTC sensor and PID algorithm, ±1°C error, meeting the high-precision scenario of laboratory constant temperature water tank.
Multiple protection: IPX4 splashproof + magnesium rod anti-corrosion, suitable for the humid environment of hotel/hospital hot water system, anti-dry burning design.
Long-lasting and durable: 316L stainless steel resists chlorine corrosion, magnesium rod extends life by 50%, reducing swimming pool/hot spring maintenance costs.
Flexible adaptation: supports threaded interface and power customization to meet non-standard requirements for agricultural greenhouse water tank/ship fresh water heating.
Energy-saving and reliable: Energy efficiency ≥96%, double-layer insulation reduces energy consumption, and complies with North American UL/EU CE certification standards.
Fast delivery: Standardized production line mass production, 25 days to complete orders, adapt to commercial equipment bulk procurement needs.
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
