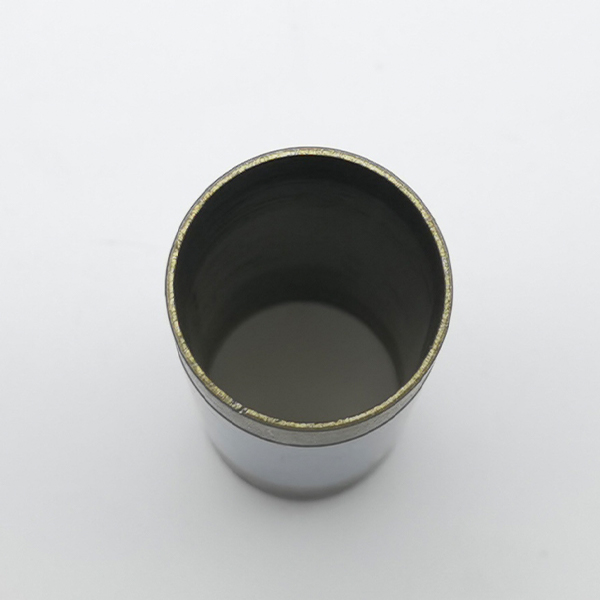

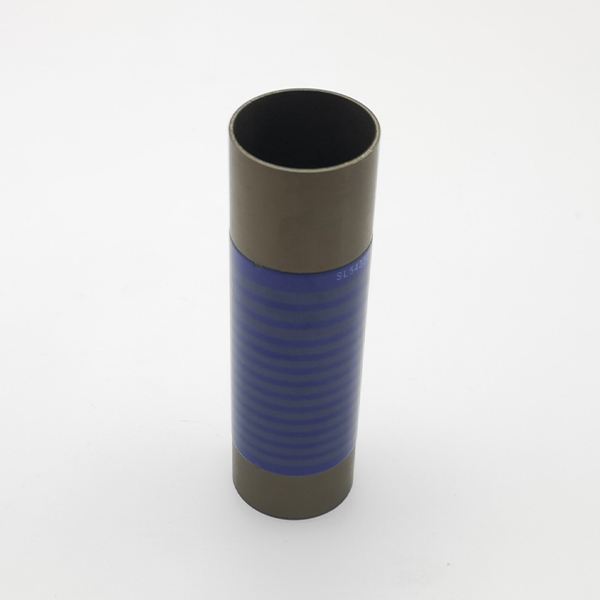

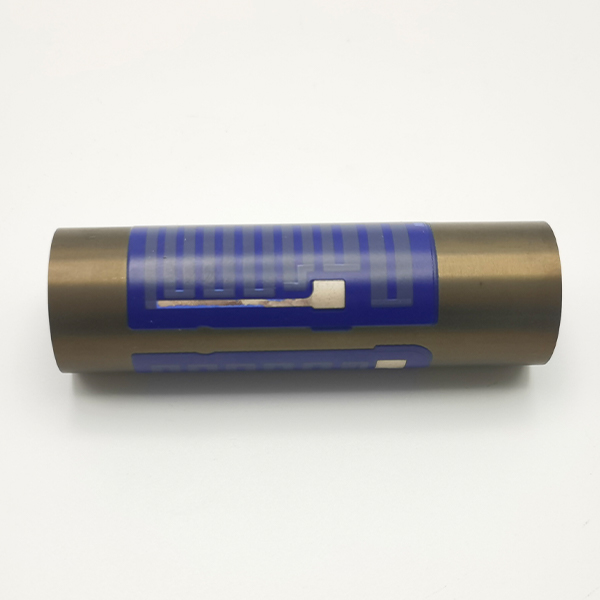

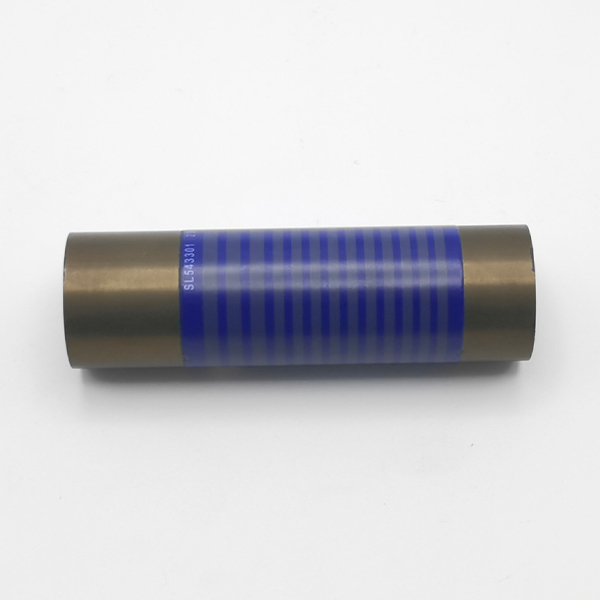

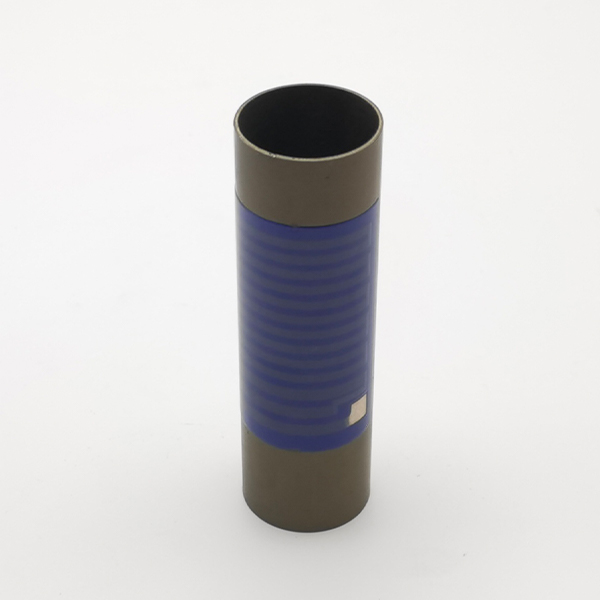

Thick film heating tube adopts ceramic substrate and thick film resistor slurry printing process. The tubular structure design supports directional centralized heating, integrated PID temperature control module, 3-5 seconds fast heating, energy efficiency ≥96%, working temperature range 80℃-500℃, IPX6 waterproof and corrosion resistance, support power (500W-5000W) and length customization, dry burning design life of more than 50,000 hours, suitable for high temperature, high frequency industrial and commercial scenarios.
Minimum order quantity: 1000
Delivery time: 15-25 days
Factory location: Zhongshan, Guangdong, China
Commercial pizza ovens, industrial tunnel furnaces, food processing tunnel drying lines, medical sterilization equipment, laboratory high temperature tube furnaces, ceramic sintering equipment, chemical reactor heating systems, baking equipment hot air tubes.
Power range: 500W~5000W (customizable, suitable for high-frequency requirements of industrial tunnel furnaces/commercial ovens)
Working voltage: 24V~600V AC/DC (wide voltage design, compatible with industrial and commercial equipment)
Resistance value: 0.1Ω~50Ω (matched by voltage and power, supports customization of thick film heating tubes)
Working temperature: 80°C~500°C (ceramic substrate is resistant to high temperature oxidation, suitable for dry burning scenarios)
Material: ceramic substrate, thick film resistor slurry, PID temperature control module (customizable tubular structure)
Dimensions: length 50cm~2m, diameter 1cm~5cm, thickness 0.5mm~5mm (supports customization of length and tube diameter)
Service life: 50,000~80,000 hours (anti-oxidation coating + thick film process, suitable for continuous high temperature operation)
Extremely fast thermal conductivity: ceramic substrate + thick film process, 3-5 seconds fast heating, suitable for high-frequency centralized heating needs of industrial tunnel furnaces.
Precise temperature control: integrated PID module, ±1°C error, meeting the constant temperature control requirements of laboratory high-temperature tube furnaces.
Industrial protection: IPX6 waterproof grade + anti-corrosion coating, suitable for the humid environment of food processing tunnel drying line.
Energy saving and high efficiency: Energy efficiency ≥ 96%, thick film heating tube thermal conductivity increased by 30%, reducing the energy consumption of industrial equipment.
Flexible adaptation: Support tubular length and power adjustment to meet the non-standard requirements of ceramic sintering/chemical reactors.
Extremely long life: 50,000 hours of life, thick film structure anti-oxidation extends the working stability of the heating tube.
Safe and reliable: Isolated circuit design, CE certified, adapted to industrial equipment leakage prevention standards.
Fast delivery: Standardized production line mass production, 15 days to complete the order, adapted to the bulk purchase needs of commercial equipment.
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
