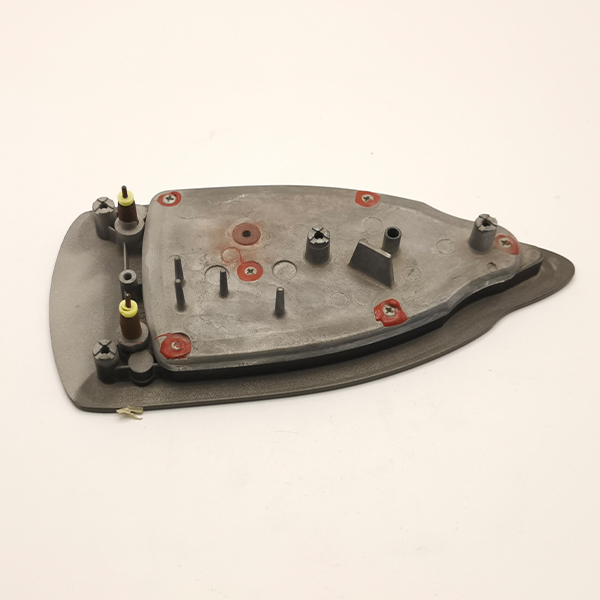

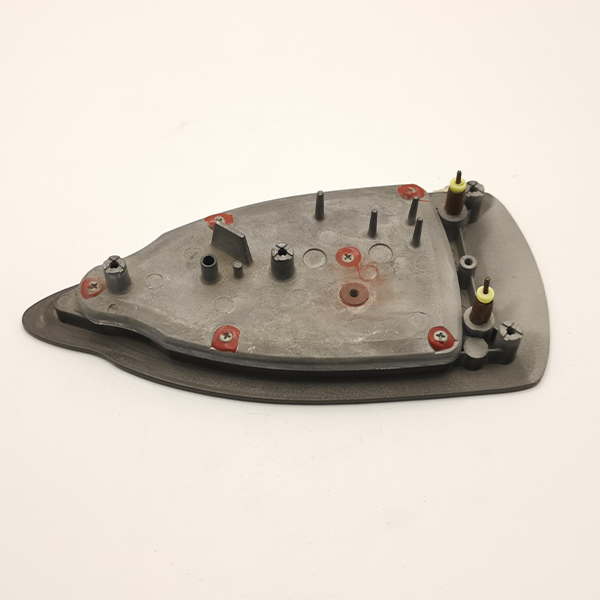

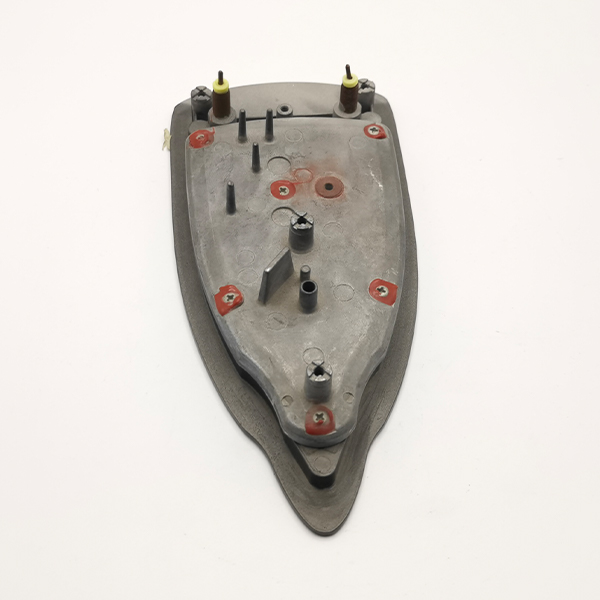

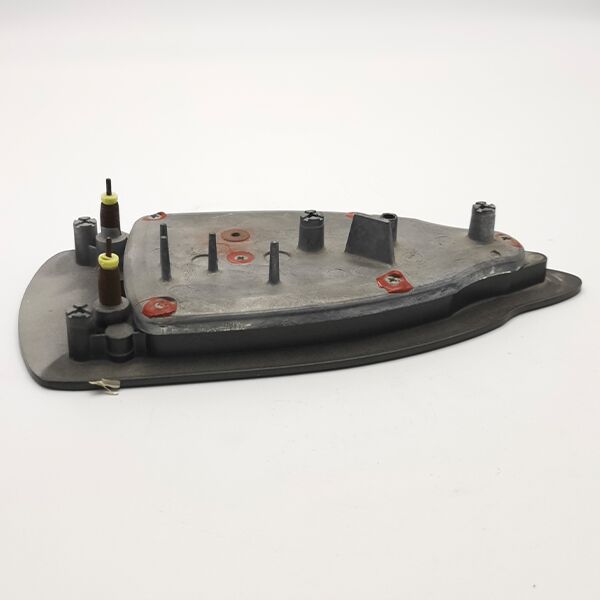

The heating plate for steam irons uses a die-cast aluminum alloy substrate and thick film resistor technology, integrated with a PID temperature control module and an NTC temperature sensor, achieving 3-second heating, energy efficiency ≥ 96%, an operating temperature range of 80℃-250℃, and is suitable for high-frequency steam injection and high-temperature ironing needs. It has IPX7 waterproof, anti-scale corrosion and anti-dry burning protection performance, supports 500W-2000W power customization, and the surface anodizing treatment improves high-temperature oxidation resistance, uniform heat conduction and a lifespan of more than 30,000 hours. It complies with the EU CE certification and meets the precise temperature control and high stability requirements of steam irons.
Minimum order quantity: 1000
Delivery time: 15-25 days
Factory location: Zhongshan, Guangdong, China
Household steam irons (such as Philips/Panasonic/Dyson), commercial industrial steam irons (heavy industrial fabric pressing), hotel commercial electric ironing equipment, laboratory high-temperature ironing tools, medical protective clothing sterilization irons, garment factory batch ironing systems, steam hanging machine core heating modules (such as Bosch/Midea), iron repair and replacement heating plates, intelligent temperature control ironing equipment (Internet of Things/APP control), electric steam box/ironing machine heating components.
| Parameter | Specification Range |
|---|---|
| Power Range | 800W-3000W (covers household to commercial steam irons and presses) |
| Operating Voltage | 220V (single-phase, household standard); 380V (three-phase, commercial optional) |
| Resistance Value | 15Ω-60Ω (matched to power/voltage; single-unit or multi-unit configuration) |
| Operating Temperature | Surface: 150℃-220℃ (normal steam generation); Max. withstand: 250℃ (short-term overload protection) |
| Material | Heating element: Nickel-chromium alloy (Cr20Ni80, Φ0.6mm-Φ1.8mm, high resistivity & thermal conductivity); Housing: 304/316 stainless steel (corrosion-resistant, thickness 1.0mm-2.5mm) |
| Dimensions | Length: 100mm-400mm; Width: 40mm-120mm; Thickness: 15mm-50mm (slim, contoured design for steam iron/press heating slots) |
| Service Life | 6000h-12000h (normal use, no dry burning/limescale buildup under typical steam conditions) |
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
