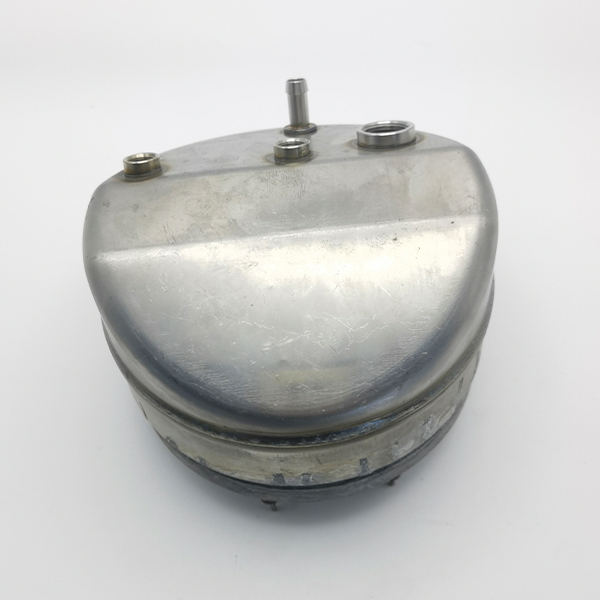

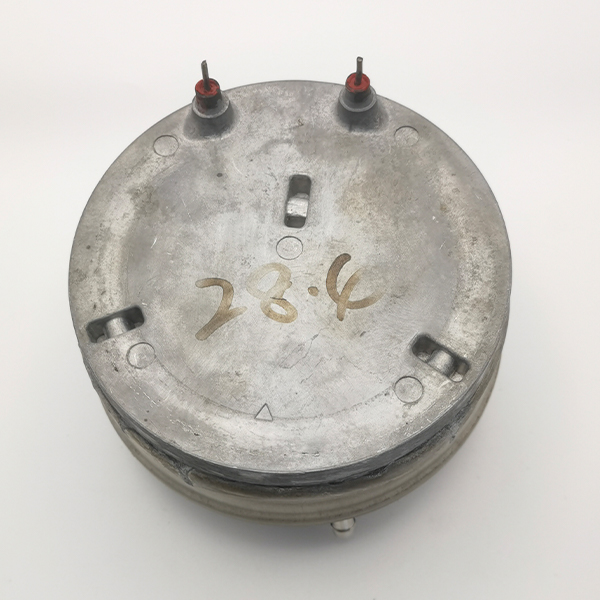

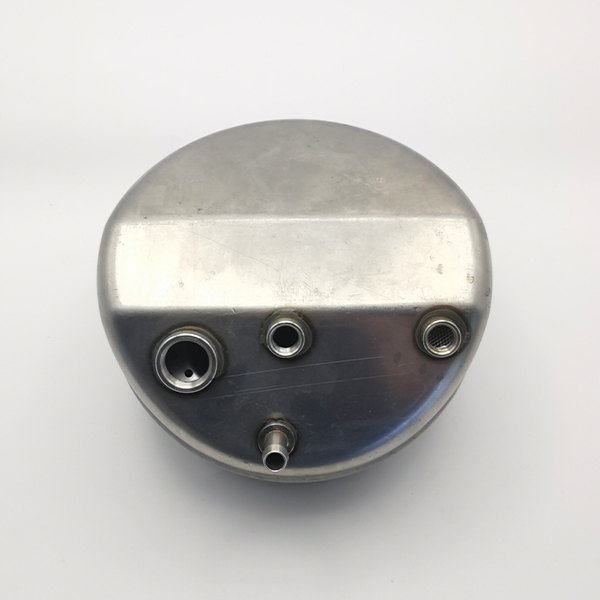

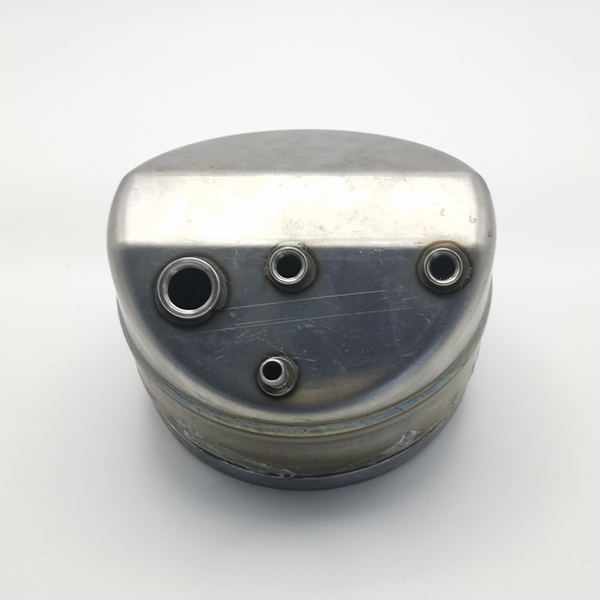

This product is a stainless steel electric steam boiler with integrated high-efficiency heating elements (such as nickel-chromium alloy heating tubes). It is designed for household appliances such as coffee machines, hanging irons, sauna equipment, etc., and can quickly generate stable steam. It adopts 304 food-grade stainless steel body, which is highly corrosion-resistant and suitable for high temperature and high pressure environments; the PID intelligent temperature control system achieves 3-second fast heating and ±1°C precise temperature control to meet the needs of steam explosion appliances. The spiral heating tube optimizes the heat conduction efficiency, and the anti-scaling coating reduces the maintenance frequency. The fully enclosed structure eliminates the hidden danger of leakage, and the modular design is suitable for compact models and supports continuous operation. It complies with CE and RoHS certifications, is safe and reliable, and helps improve the energy efficiency and service life of steam equipment.
MOQ：1000PCS
Lead time：15-25days
Factory location: Zhongshan, Guangdong, China
Our Steam Boiler with Heating Element is a core component of electric boiler heaters, designed to efficiently convert electrical energy into high-quality steam for diverse applications. It serves as the primary heat source in household appliances (e.g., steam irons for garment pressing, espresso machines for coffee brewing, electric steamers for food preparation, and humidifiers for air moisture control) and commercial/industrial systems (industrial steam generators, commercial instantaneous steam systems). This integrated boiler-heating element ensures rapid, stable steam generation to meet needs ranging from daily household tasks to large-scale industrial processes.
| Parameter | Specification Range | Customization Options |
|---|---|---|
| Power Rating | 500W–4000W (household); 1000W–8000W (commercial/industrial). | Custom wattage (e.g., 300W–10,000W). |
| Operating Voltage | 110V/220V (standard household); 380V (3-phase industrial); 12V/24V (low-voltage). | Custom voltage (e.g., 24V–600V). |
| Material | Primary: 304 stainless steel (food-grade, corrosion-resistant for water contact). Optional: 316L SS (high-purity/acidic environments). | High-nickel alloys (e.g., Incoloy 800) for extreme temps. |
| Boiler Dimensions | Length: 200mm–1500mm; Diameter: 15mm–40mm (fits standard boiler chambers). | Tailored length/diameter to match specific enclosures. |
| Heating Element Specs | Length: 150mm–800mm; Diameter: 8mm–20mm; Quantity: 2–8 tubes (embedded design). | Adjustable tube count, spacing, or material (e.g., twin-tube for efficiency). |
| Temperature Resistance | Continuous: 750°C–850°C; Peak: 950°C–1100°C (stable under rapid heating cycles). | Ceramic insulation for >1200°C high-temp applications. |
| Pressure Resistance | Rated ≤20 bar (household); ≤30 bar (commercial/industrial). | Reinforced casing for ≥40 bar in specialized systems. |
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
