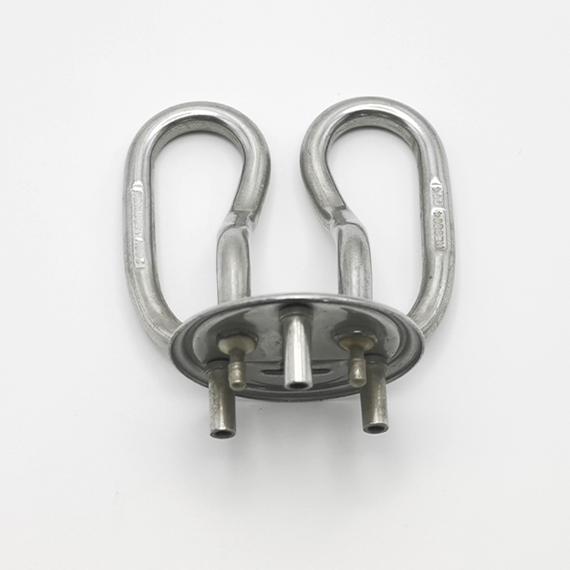

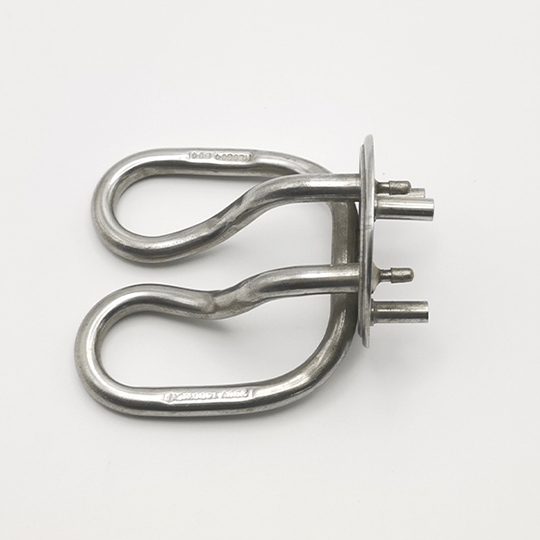

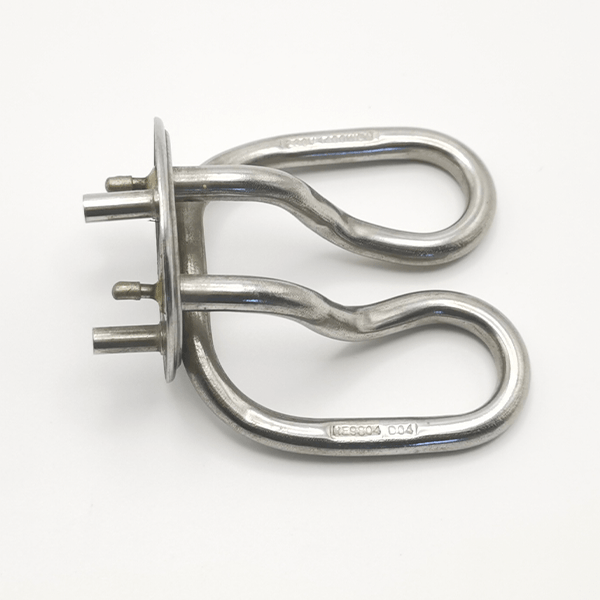

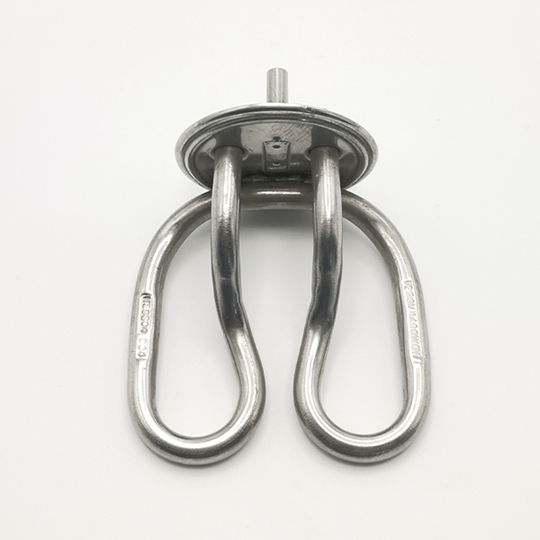

Stainless Steel Kettle Heating Element——Full-scenario corrosion-resistant smart kettle heating solution
The stainless steel heating element designed for electric kettles, coffee pots and commercial drinking water equipment adopts 316L food-grade stainless steel + nano-ceramic composite insulation structure, suitable for 1.5kW-30kW power range, temperature resistance up to 1000℃ (short time), and pressure resistance level 15bar.
MOQ：1000PCS
Lead time：25days
Factory location: Zhongshan, Guangdong, China
Designed for stainless steel kettles, high-performance electric heating element combines corrosion resistance, quick heating, and energy efficiency. Designed with modern coatings and high-quality materials, this heating element guarantees maximum thermal performance and long-lasting durability for domestic, business, and industrial use.
Premium Materials
Operating at temperatures up to 1200°C with great oxidation resistance, heating wire can be either nichrome (NiCr) or iron-chromium-aluminum (FeCrAl) alloy.
Insulation:
Housing: rust, corrosion, and chemical exposure resistant 304/316L stainless steel sheath.
Effective Heating Performance
Power range: 800W–3000W (thermostat adjustable).
Thermal Efficiency: ≥95% energy conversion rate, reducing boiling time by 20% vs. standard elements.
Heating Speed: Boils 1.5L water in 4–6 minutes (e.g., 1800W model).
Heating speed: An 1800W model boils 1.5 liters of water in 4 to 6 minutes.
Smart Safety & Control
Dry-burn prevention: built-in water-level sensor eliminates power should water be absent.
Adjustable automatic shutdown at 95℃–100℃.
IPX4 Waterproof: Defense against moisture and splashes.
Options for customization
For worldwide use, AC 110V–240V/DC 12V–24V
Installation: Spiral, U-bend, or flange designs (Φ8–25mm × L400–2000mm).
Nano-ceramic or PTFE anti-scaling coatings for low maintenance.
| Parameter | Standard Model | Commercial-Grade Model |
|---|---|---|
| Material | 304 Stainless Steel + NiCr Wire | 316L Stainless Steel + Ti-Alloy Wire |
| Power | 1500W (Household) | 3000W (Commercial Kettles) |
| Max Temperature | 100℃ (Continuous) | 120℃ (Short-term) |
| Insulation | MgO ≥500MΩ | High-purity MgO ≥1000MΩ |
| Lifespan | ≥8,000 hours | ≥15,000 hours |
Household Kettles
Fast boiling for one to one .5 liter of water in minutes (e.g., 1500W model for 500ml in three minutes).
Commercial Kettles
For restaurants, hotels, or offices (e.g., dual 2000W heating elements), high-capacity units.
Industrial Application
Food processing, beverage manufacturing, and laboratory uses.
Benefits above standard heating components
Corrosion resistance: 316L stainless steel resists acidic or chlorinated water, hence doubling lifetime by 50%.
Anti-scaling design: Nano-ceramic coatings cut mineral buildup by 70%, hence lowering maintenance frequency.
Optimized heat distribution reduces power use by 15% as opposed to . elementary ones.
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
