PTC Ceramic Heater——Intelligent temperature control and high-efficiency ceramic heating solution
Semiconductor ceramic heating elements designed for home appliances, industrial equipment and new energy vehicles, using rare earth doped barium titanate (BaTiO?)-based PTC ceramics + aluminum nitride (AlN) insulating substrate, suitable for 500W-30kW power range, temperature resistance up to 300℃ (short time), heating efficiency ≥95%.
MOQ：1000PCS
Lead time：25days
Factory location: Zhongshan, Guangdong, China
Household appliances: fan heaters, air conditioner auxiliary heating modules, electric heaters, instant water heaters.
Power range:
Household: 200W–2000W (electric heater, clothes dryer, air fryer)
Industrial: 2000W–15kW (industrial oven, car air conditioning heating system, medical device disinfection)
Working voltage: 12V–480V AC/DC (global power grid compatible, error ≤±5%).
Resistance value: 10Ω–1000Ω (accurately matched by voltage and power, error ≤±3%).
Working temperature:
Conventional model: continuous and stable operation 80°C–250°C (self-limiting temperature characteristics, automatic power reduction to prevent overheating).
High temperature model: short-term tolerance of 350°C (customized heat dissipation structure required).
Material:
PTC chip: barium titanate-based ceramic (Curie temperature 60°C–300°C adjustable, positive temperature coefficient characteristics).

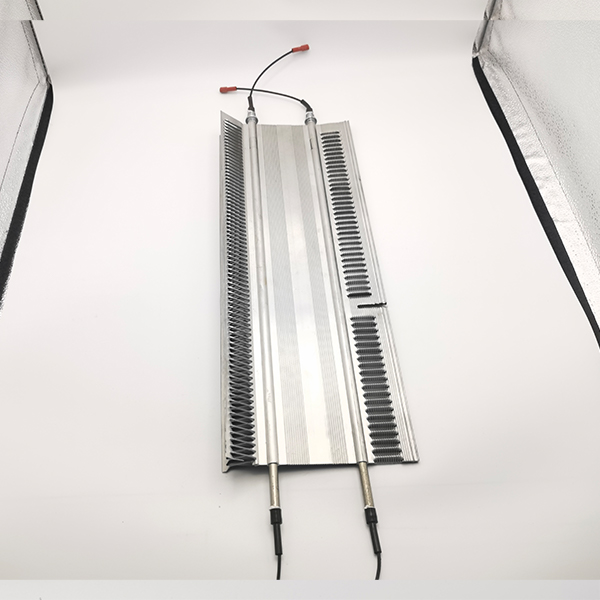

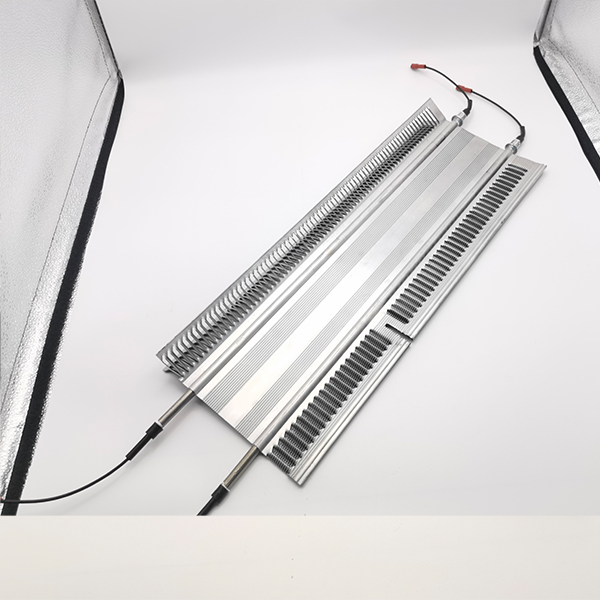

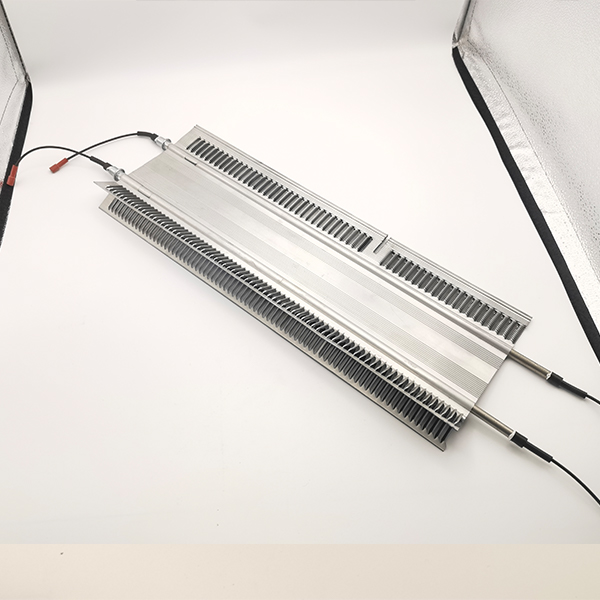

Heat dissipation structure: aluminum heat dissipation fins (thermal conductivity ≥ 200W/m·K, improve thermal efficiency).

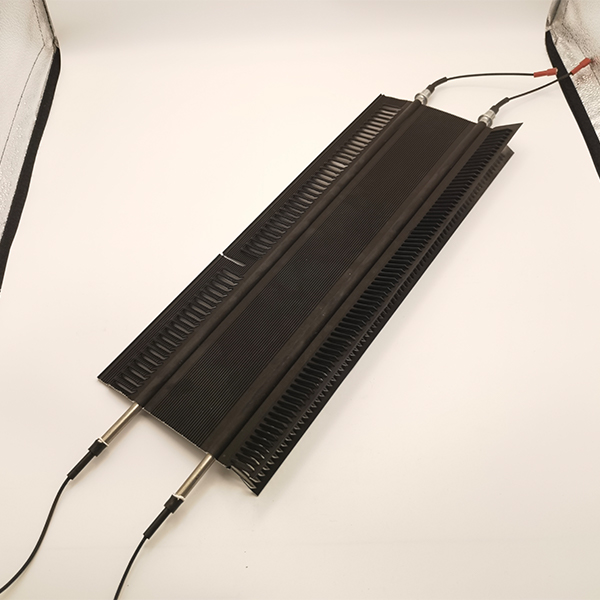

Surface treatment: anodized layer (corrosion resistant) or ceramic coating (high temperature resistant to 500°C).
Dimensions:
Chip size: Φ10mm–Φ100mm (supports special-shaped customization).
Heat sink length: 50mm–1200mm, fin spacing 5mm–30mm.
Service life: 20,000–80,000 hours (based on operating temperature and heat dissipation conditions).
Customizable services: support power, voltage, Curie temperature adjustment, optional explosion-proof certification, IP protection level (such as IP68), integrated NTC sensor, etc.
Self-limiting temperature safety feature:
PTC ceramic Curie point effect, the resistance rises sharply when the temperature exceeds the set value, and the power is automatically reduced to a safe range, no external thermostat is required, and it prevents overheating and burning.
High efficiency and energy saving:
Thermal efficiency is ≥95%, electrical energy is directly converted into thermal energy, there is no open flame, and the energy consumption is 30% lower than that of traditional resistance wire heaters.
Fast response and silent operation:
The heating speed is ≤30 seconds (to 200°C), there is no mechanical vibration noise, and it is suitable for silent home appliances (such as air purifiers, medical equipment).
Long life and reliability:
There is no risk of oxide wire burning, the life is 2-3 times longer than that of resistance wire heaters, and it is resistant to frequent start and stop (>10,000 cycle tests).
Environmental adaptability:
Moisture-proof, dust-proof, and corrosion-resistant design (optional IP68/IP69K protection level), suitable for humid or harsh industrial environments.
Lightweight and compactness:
The aluminum heat sink has a low density (2.7g/cm³), and the volume is 50% smaller than that of traditional heaters, which is suitable for space-constrained scenarios.
Intelligent compatibility:
Supports PWM power regulation and IoT access (APP remote temperature control), and is suitable for smart home/Industry 4.0 systems.
Global Compliance:
CE, UL, CCC, RoHS certified
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
