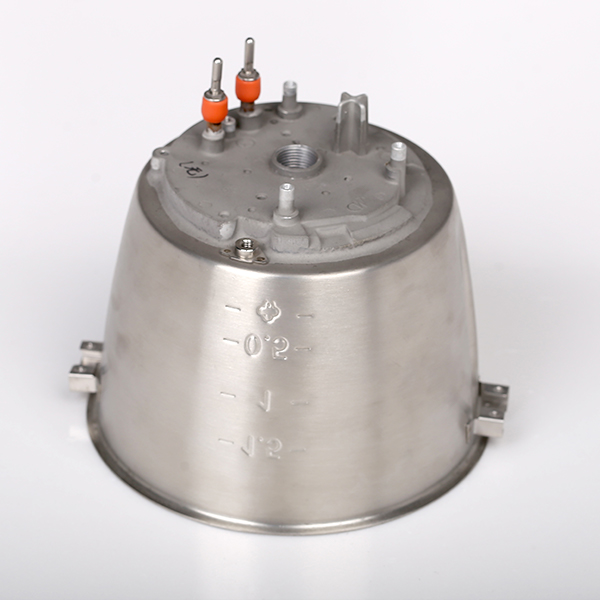

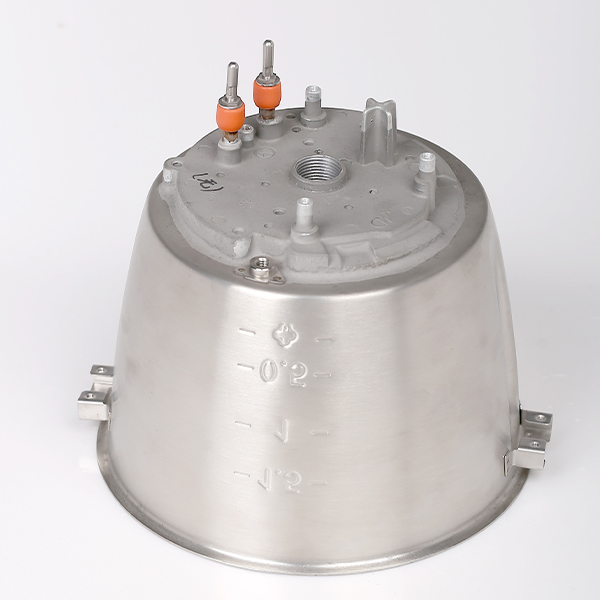

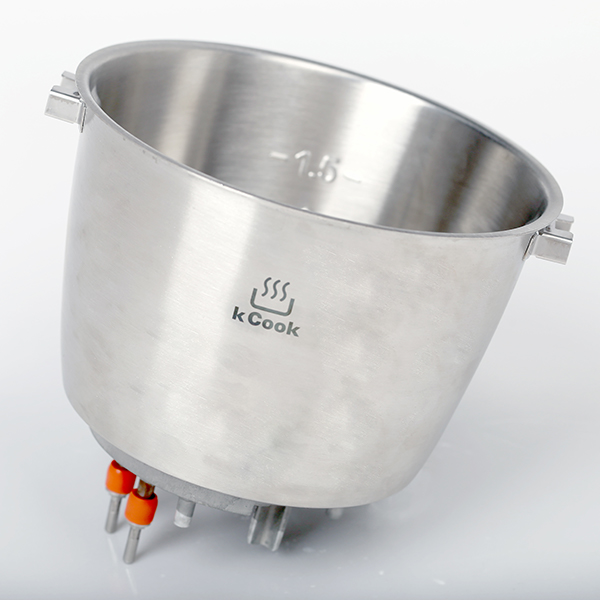

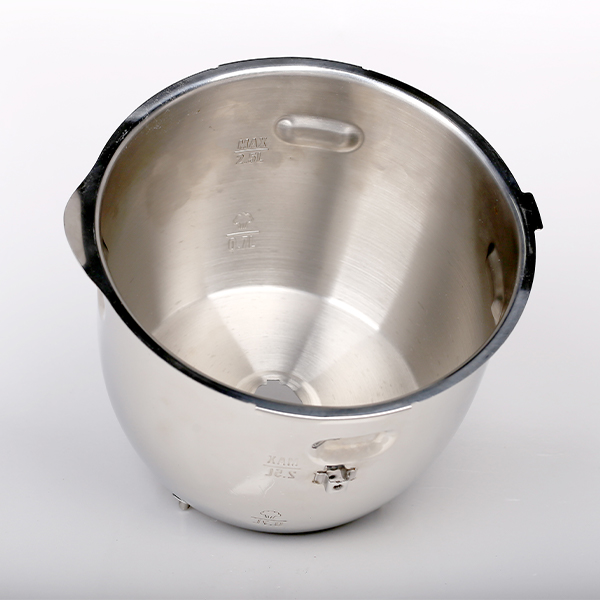

The instant pot heating element uses food-grade 304/316L stainless steel substrate and thick film resistor technology, integrated PID temperature control module and anti-dry burning protection system, achieving 3 seconds of fast heating, energy efficiency ≥96%, working temperature range 80℃-350℃, supporting high pressure (100kPa-150kPa) and multi-stage power adjustment (500W-3500W). The surface nano-ceramic coating enhances corrosion resistance, adapts to high-frequency high-pressure stewing scenes, has IPX7 waterproof and anti-scaling performance, life span exceeds 30,000 hours, complies with EU CE certification, and meets the high stability requirements of home and commercial use.
Minimum order quantity: 1000
Delivery time: 15-25 days
Factory location: Zhongshan, Guangdong, China
Electric pressure cooker (including firewood rice mode), wall breaker heating module, commercial electric stew pot (hotel/restaurant), laboratory high-pressure sterilization auxiliary heating, industrial high-temperature sterilization equipment, smart electric pressure cooker (IoT temperature control), slow cooker, embedded electric pressure cooker, health pot (high-pressure stewing model)
1. Power Rating: 800-2500W (customizable: 800-1500W for 3-5L small instant pots; 1500-2500W for 5-8L large models).
2. Operating Voltage: 110V/220-240V AC (global voltage compatibility for international appliance markets).
3. Dimensions: Length: 150-400mm; Width: 80-200mm; Thickness: 0.5-1.5mm (304/316 stainless steel, food-grade compliant for direct food contact).
4. Surface Load: 6-12W/cm² (optimized for rapid, uniform heating: 6-8W/cm² for small pots; 8-12W/cm² for high-capacity models).
5. Max. Surface Temp.: ≤350°C (normal operation ≤300°C; dry-burn cutoff activated at >300°C to prevent overheating).
6. Dimensional Tolerance: ±0.15-0.25mm (precision machining for secure fit with instant pot base grooves/clips).
Customization: Shape (spiral/coiled/flat plate), lead wire (silicone/PTFE/tinned terminals), or anti-corrosion coatings (e.g., PTFE layer for acidic food environments).
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
