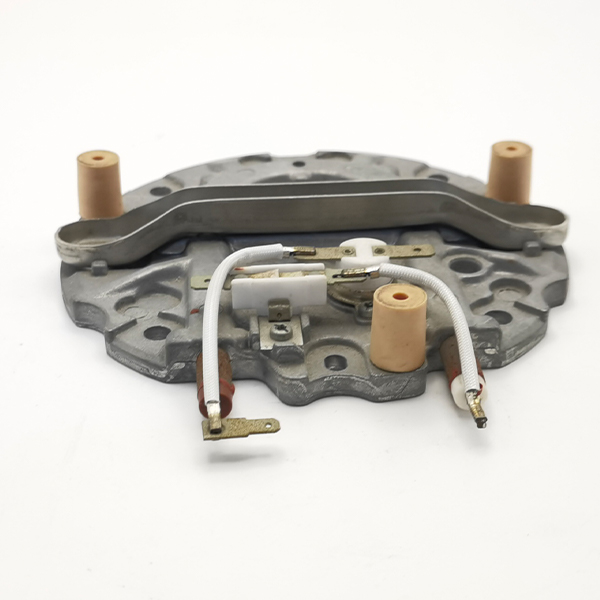

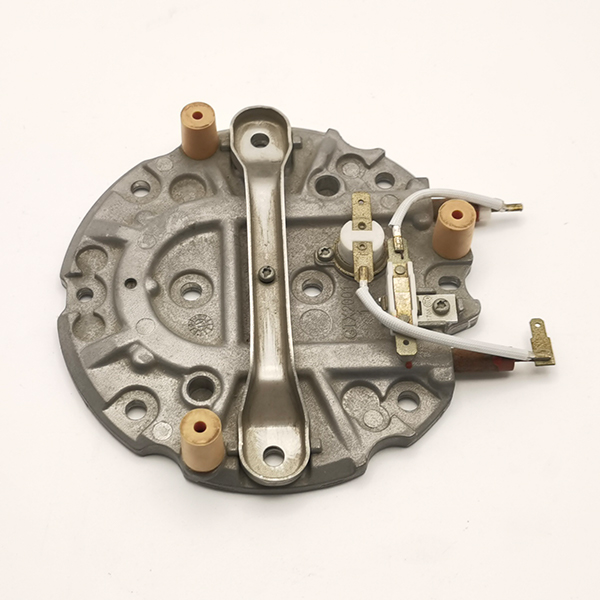

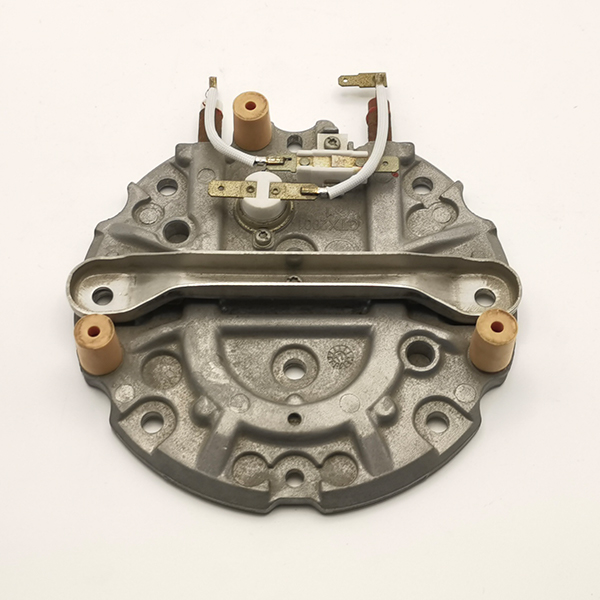

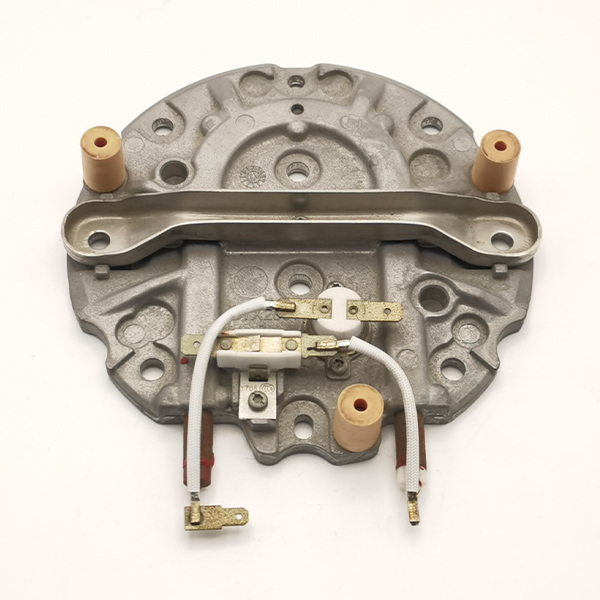

The iron-specific heating element adopts die-cast aluminum alloy substrate and thick film resistor technology, integrates PID temperature control module and NTC temperature sensor, achieves 3 seconds of fast heating, energy efficiency ≥96%, working temperature range 80℃-250℃, supports power (500W-2000W) customization, has IPX7 waterproof, anti-scale corrosion and anti-dry burning protection performance, adapts to high-frequency continuous heating scenarios, has a lifespan of more than 30,000 hours, complies with EU CE certification, and meets the precise temperature control and high stability requirements of ironing equipment.
Minimum order quantity: 1000
Delivery time: 15-25 days
Factory location: Zhongshan, Guangdong, China
Household electric irons (such as Philips/Panasonic), steam hanging irons (Bosch/Midea), commercial industrial irons (heavy industrial fabric pressing), hotel commercial electric ironing equipment, laboratory high-temperature ironing tools, medical protective clothing sterilization irons, garment factory batch ironing systems, iron repair and replacement heating cores (bottom plate/heating plate).
| Parameter | Specification Range |
|---|---|
| Power Range | 800W-3000W (suitable for household steam irons to commercial steam presses) |
| Operating Voltage | 220V (single-phase, household standard); 380V (three-phase, commercial optional) |
| Resistance Value | 15Ω-60Ω (single-unit or multi-unit combination, matched to power and voltage) |
| Operating Temperature | Surface: 150℃-220℃ (normal); Maximum withstand: 250℃ (short-term overload protection) |
| Material | Heating element: Nickel-chromium alloy (Cr20Ni80, Φ0.6mm-Φ2.0mm); Housing: Aluminum alloy/stainless steel (high-temperature resistance, thickness 1.0mm-2.5mm) |
| Dimensions | Length: 100mm-400mm; Diameter/Thickness: 20mm-60mm (compatible with mainstream steam iron/press heating slots) |
| Service Life | 5000h-10000h (normal use, no dry burning/limescale buildup) |
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
