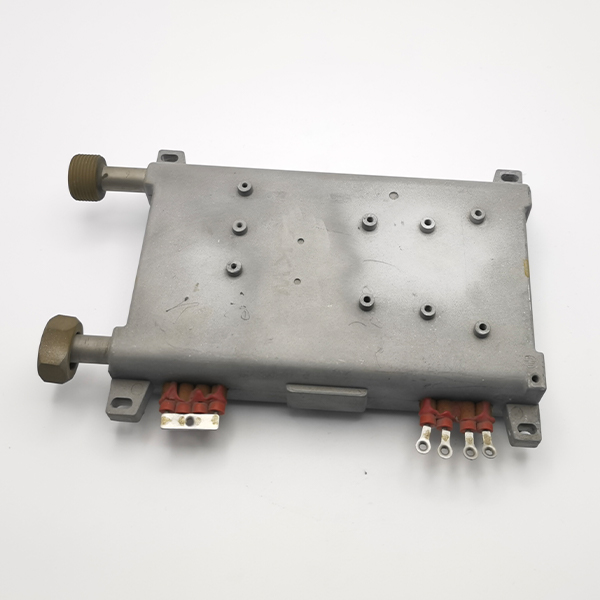

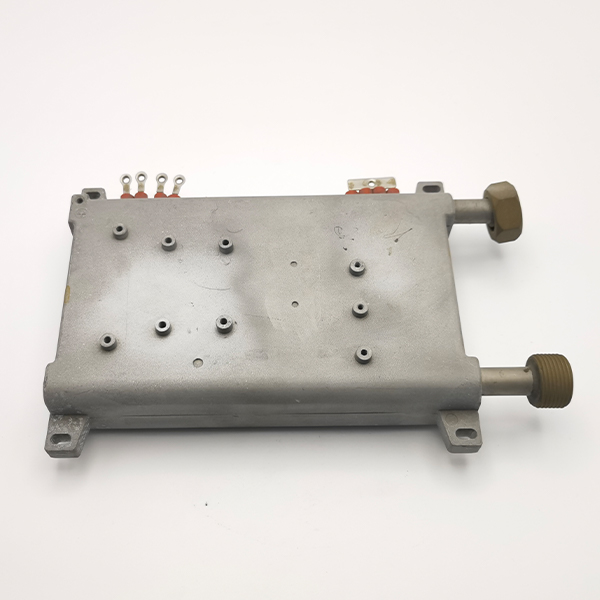

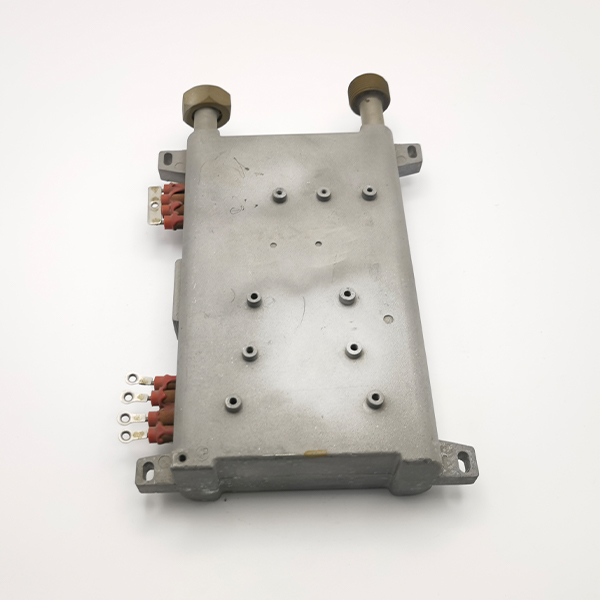

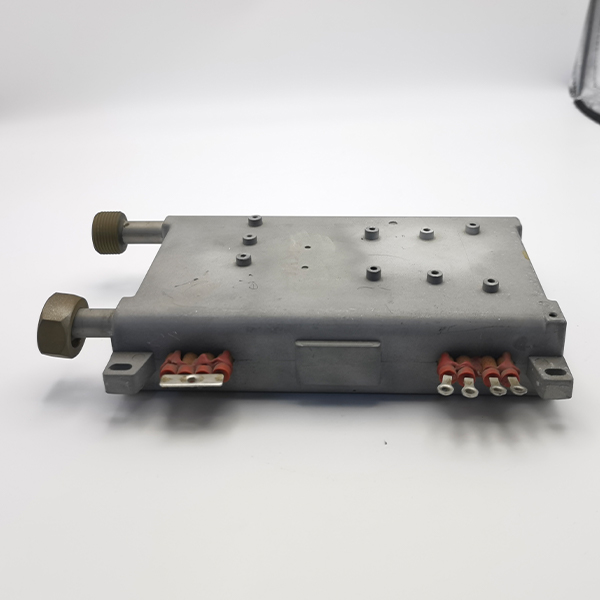

The dedicated heating element for heat exchanger adopts die-cast aluminum alloy substrate and thick film resistor technology, integrated with PID temperature control module, achieving 3-5 seconds fast heating, energy efficiency ≥96%, working temperature range of 50℃-500℃, supporting power (1000W-8000W) customization, with corrosion resistance, high temperature oxidation resistance and anti-scaling performance, adapting to high-frequency thermal cycle scenarios, life span of more than 50,000 hours, meeting industrial-grade high stability and low energy consumption requirements.
Minimum order quantity: 1000
Delivery time: 15-25 days
Factory location: Zhongshan, Guangdong, China
Industrial heat exchangers (oil/water/gas), air conditioning refrigeration cycle systems, waste heat recovery devices, ground source heat pumps, swimming pool/hot spring heating equipment, new energy vehicle battery cooling systems, commercial steam generators, central heating pipeline heating, medical sterilization equipment heat source modules, chemical fluid constant temperature control systems.
| Parameter | Specification Range |
|---|---|
| Power Range | 1000W-8000W (customizable for high-power commercial applications) |
| Operating Voltage | 220V (single-phase, household); 380V (three-phase, commercial/industrial) |
| Resistance Value | 4Ω-15Ω (single-unit or multi-unit combination, matched to power/voltage) |
| Operating Temperature | Surface: 150℃-300℃ (normal); Max. withstand: 350℃ (short-term overload protection) |
| Material | Heating element: Nickel-chromium alloy (Cr20Ni80, Φ0.8mm-Φ2.5mm); Housing: 304/316 stainless steel (corrosion-resistant, thickness 1.0mm-2.5mm) |
| Dimensions | Length: 100mm-600mm; Diameter/Thickness: 20mm-100mm (compatible with heat exchanger slots in water heaters, range hoods, etc.) |
| Service Life | 8000h-15000h (normal use, no scaling/corrosion/dry burning) |
High-Efficiency Heat Exchange:Nickel chromium alloy core with high thermal conductivity allows for fast heat transmission, therefore lowering energy loss by 15% to 20% compared to conventional components.
Power range (1000W–8000W) fits industrial heat exchange systems, commercial range hoods, and household water heaters. MultiScene Adaptability
Resistant to Corrosion and Scale: Perfect for wet or severe environments, 304/316 stainless steel housing resists water, steam, oil mist, and mineral deposits.
Wide temperature range: 150°C to 300°C surface temperature accommodates industrial processes and high-efficiency heating (e.g., immediate hot water).
Sealed construction keeps water from entering, therefore guaranteeing safe functioning in humid or underwater situations (e.g., range hood condensation).
Long Lifespan: Optimized heat dissipation lowers element fatigue; 8000h+ lifetime under high-frequency application (e.g., 24/7 commercial applications).
Custom Fit: Configurable dimensions and power to suit nonstandard heat exchanger slots (e.g., inherited or imported appliances).
