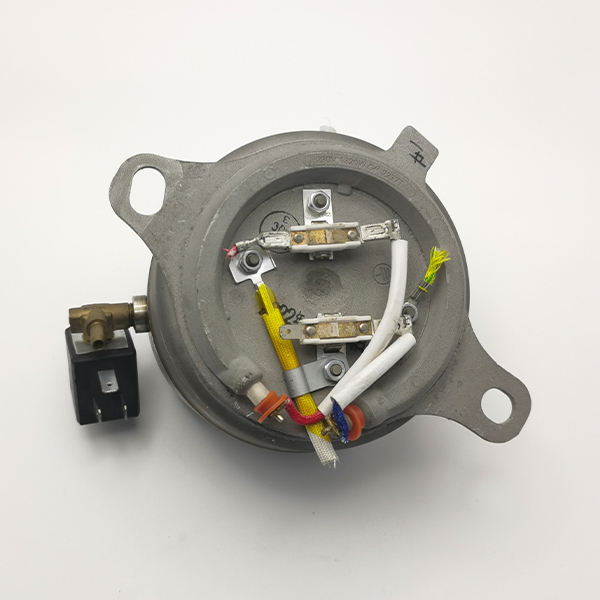

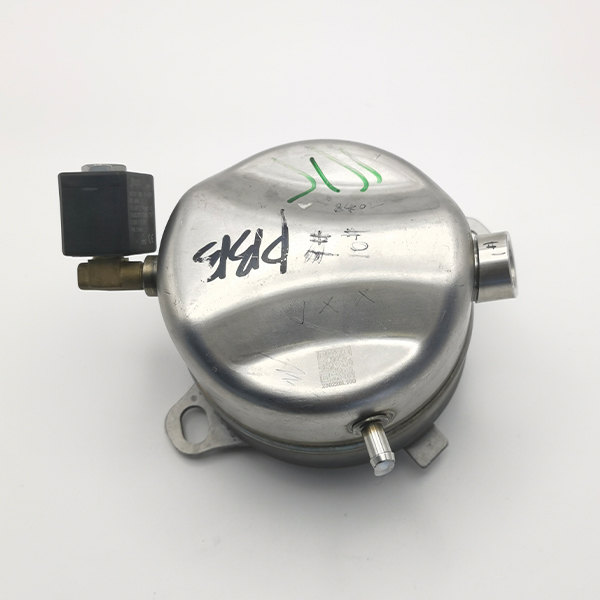

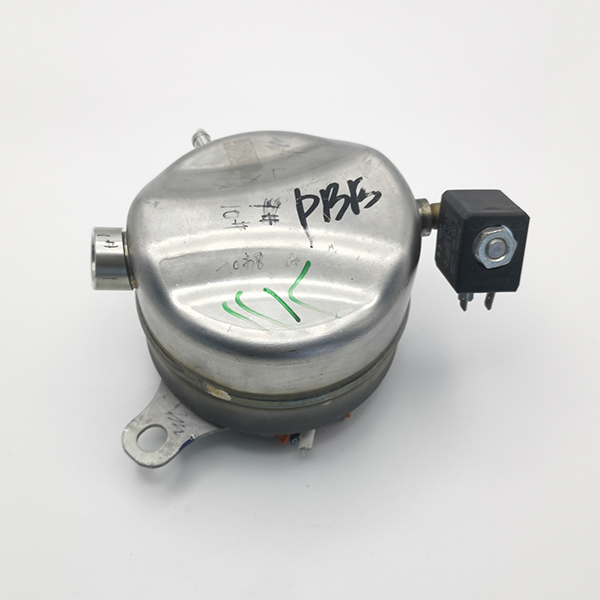

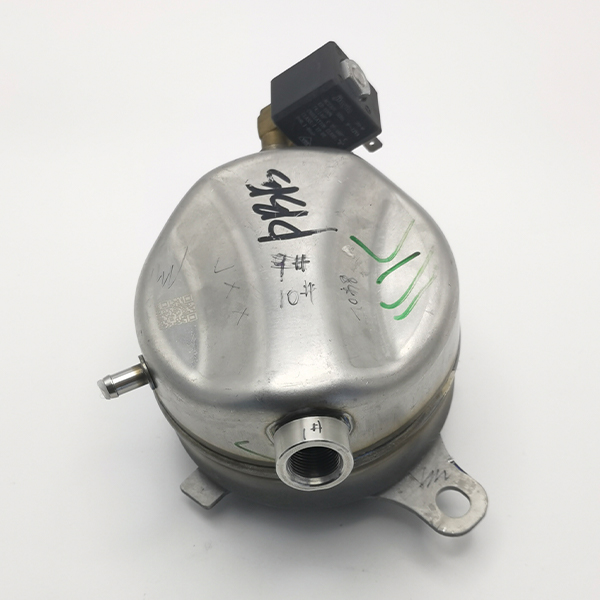

This is an electric stainless steel steam generator for garment steamers. Designed for efficient generation of high-temperature steam, this material is appropriate for domestic and business garment steamers. Constructed of 304 food-grade stainless steel, it is simple to clean and corrosion-resistant. To reach 3-second heating and ±1°C accurate temperature control, it has a PID temperature control system. It can rapidly generate constant steam and readily level out creases on garments. The completely enclosed design eliminates the possibility of electric leakage; the integrated anti-scaling device reduces scale deposition and prolongs service life. The modular design accommodates various models, encourages energy-saving mode to lower energy consumption, and meets CE and RoHS accreditation.
MOQ：1000PCS
Lead time：15-25days
Factory location: Zhongshan, Guangdong, China
Our hanging irons steam generator heating elements are specialized components for electric boiler heaters, serving as the core heat source in hanging iron steam generators (portable or stationary garment steamers). They efficiently convert electrical energy into high-temperature steam to remove wrinkles from clothing, ideal for household use (e.g., home steamers) and small-scale commercial scenarios (e.g., boutique garment care). These elements also integrate with auxiliary devices like compact steamers, humidifiers, or mini boilers, ensuring precise, rapid steam generation for fabric care.
| Parameter | Specification Range | Customization Options |
|---|---|---|
| Power Rating | 500W–2000W (household hanging irons); 1000W–3000W (commercial/industrial). | Custom wattage (e.g., 300W–4000W). |
| Operating Voltage | 220V (standard household); 110V/380V (commercial/industrial). | Custom voltage (e.g., 12V–480V). |
| Material | Primary: 304 stainless steel (food-grade, corrosion-resistant for water contact). Optional: 316L SS (for acidic environments). | High-nickel alloys (e.g., Incoloy 800) for extreme temps. |
| Dimensions | Length: 150mm–1000mm; Diameter: 10mm–25mm (fits compact generator chambers). | Tailored length/diameter to match specific iron designs. |
| Temperature Resistance | Continuous: 750°C–850°C; Peak: 950°C–1050°C (stable under rapid heating cycles). | Ceramic insulation for >1100°C high-temp applications. |
| Pressure Resistance | Rated ≤10 bar (household); ≤15 bar (commercial/industrial). | Reinforced casing for ≥20 bar in heavy-duty systems. |
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
These are lists of frequently asked questions by our customers. We correspond each question to a brief answer, covering aspects such as products, quality, and services. If you have other inquiries, please leave a message for consultation. Thank you.
Get a custom quote in less than two days.
