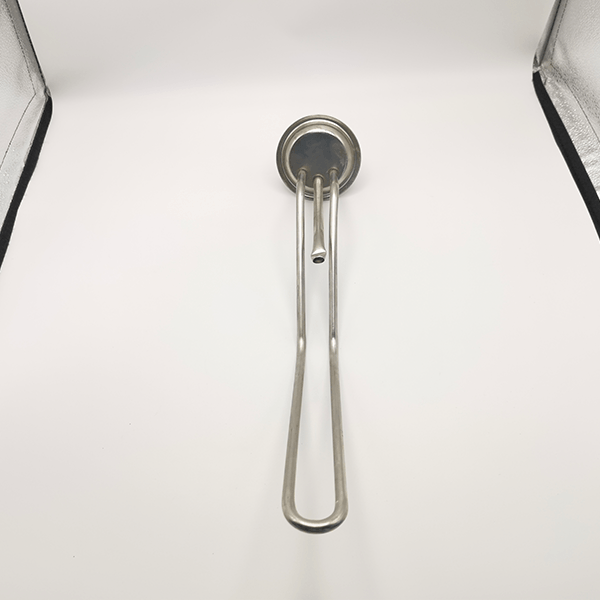

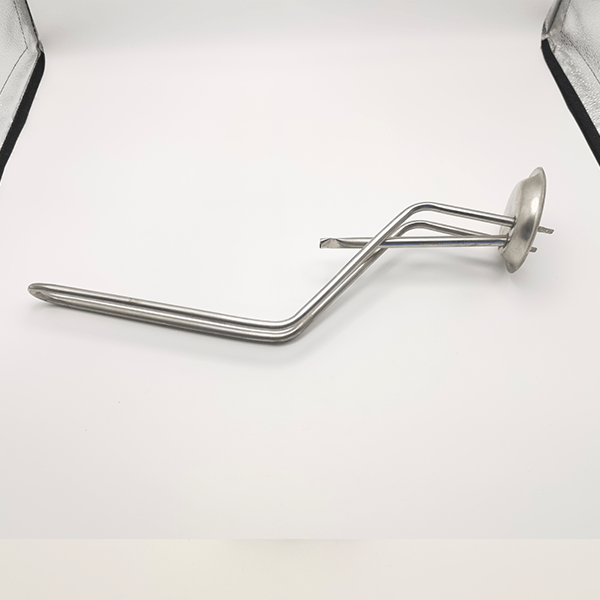

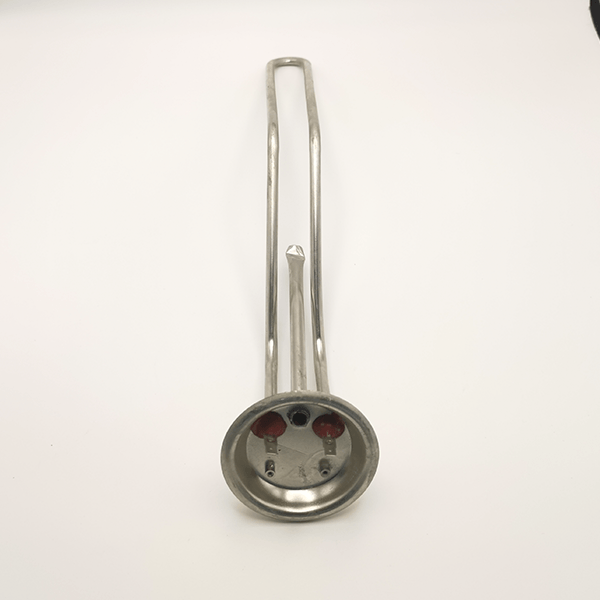

Electric Water Heater Heating Tube ——Full-scenario intelligent anti-scaling electric water heater core heating solution
The immersion heating element designed for water storage and instant electric water heaters adopts MCH molybdenum-copper alloy heating element + nano-ceramic composite insulation structure, suitable for 3kW-50kW power range, temperature resistance up to 850℃ (instantaneous), and pressure resistance level 10bar.
MOQ：1000PCS
Lead time：25days
Factory location: Zhongshan, Guangdong, China
Household appliances: water storage electric water heaters, instant water dispensers, coffee machines, wall breakers, air fryers.
Industrial heaters: industrial boiler circulation systems, chemical liquid constant temperature reactors, electroplating tank heating modules, food sterilization equipment, heat pump auxiliary heat exchange units, ship fresh water heaters.
Designed for both residential and business water heaters, the Electric Water Heater Heating Tube is a high-efficiency electric heating component. With a surface nano-ceramic coating, food-grade stainless steel 304/316L or nichrome (NiCr) materials are used to efficiently avoid scaling and to attain more than 95% thermal efficiency. Single tube, adaptable to power levels ranging from 1kW to 15kW, it runs stably at 80℃–100℃ with atmospheric and low-pressure settings (0.1MPa–0.5Pa) support. Great for hot tubs, storage-type instant-heating electric water heaters, and hot tubs, its main benefits include leak protection, long-term anti-scaling (lifespan ≥8,000 hours), and rapid thermal response, satisfying varied requirements in residential and business settings.
| Parameter | Specifications | Customization Options |
|---|---|---|
| Power Range | 1kW–15kW (single tube) | Multi-tube parallel support for 30kW+ systems |
| Rated Voltage | AC 110V–240V±10% (50/60Hz) | DC 12V–48V customizable |
| Operating Temp | Continuous 80℃–100℃, short-term up to 120℃ | Surface nickel plating/PTFE coating for enhanced durability |
| Working Pressure | 0.1MPa–0.5MPa (pressure test up to 1MPa) | Reinforced tube wall for high-pressure applications |
| Lifespan | ≥8,000 hours (standard conditions) | 316L stainless steel model: ≥12,000 hours |
| Dimensions | Φ5–30mm × L50–2000mm | Customizable U-shaped, spiral, or bent designs |
| Insulation Resistance | ≥100MΩ@25℃ (cold state) | Adjustable magnesium oxide filling density |
| Core Material | Stainless steel 304/316L, nichrome | Titanium alloy/Hastelloy optional |
High-efficiency Anti-scaling: Nano-ceramic coating reduces scale buildup; thermal efficiency degradation <5% annually.
Long Lifespan: ≥8,000 hours (standard), 316L stainless steel version ≥12,000 hours.
Safety Reliable: Leakage protection response <0.1 seconds; insulation resistance ≥100MΩ.
Rapid Heating: Heat response time ≤10 seconds; 30% faster temperature rise in instant-heating systems.
Flexible Customization: Adaptable power, size, and coatings for storage-type/instant-heating water heaters.
Energy Saving: Spiral design saves 15% energy by increasing heat exchange efficiency. conventional heaters.
Wide Voltage Compatibility: 110V–240V global electrical environment support.
Lightweight design: An aluminum-based material cuts weight by 25%, hence lessening installation load.
