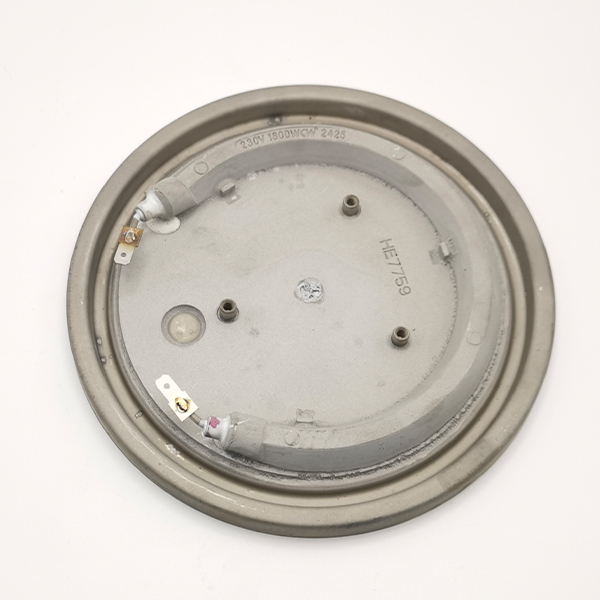

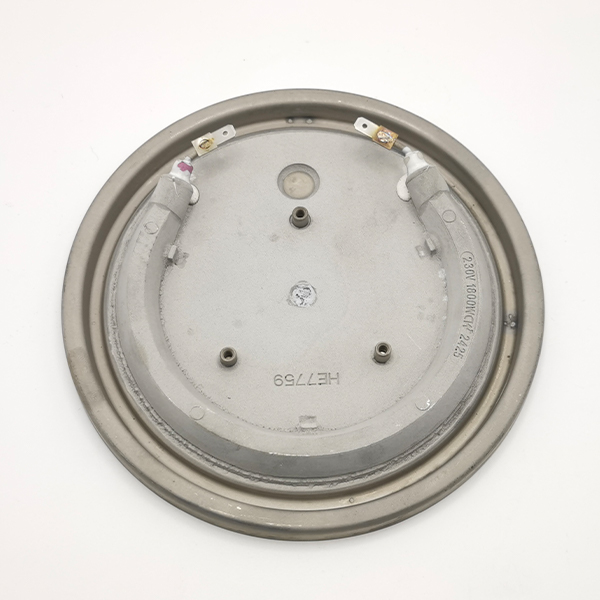

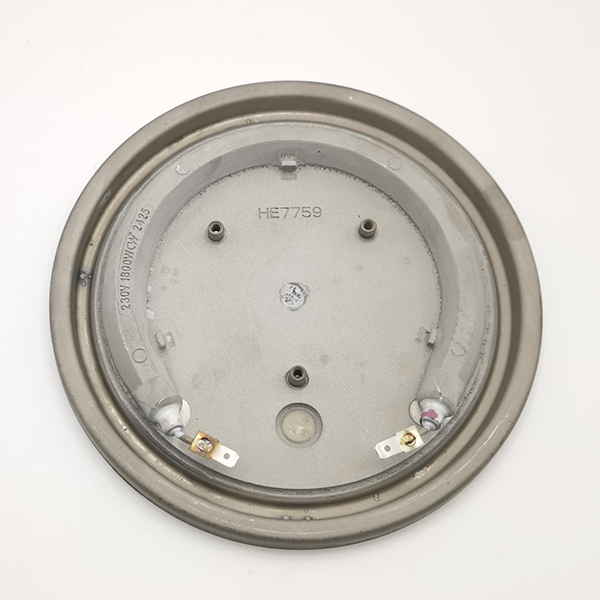

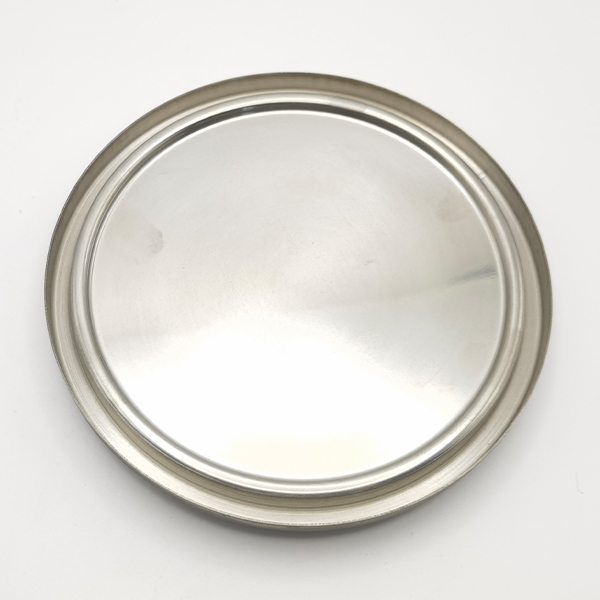

Electric Kettle Heating Plate——Intelligent temperature control and fast heating solution
The high-efficiency heating element designed for home/commercial scenarios adopts nano-ceramic coating + food-grade 316L stainless steel substrate, suitable for 800W-3000W power range, temperature resistance up to 350℃ (short time), heat distribution uniformity ΔT≤2.5℃; integrated PID dynamic temperature control algorithm (±0.3℃ accuracy), supports anti-dry burning protection (＞10 seconds automatic power off) and pulse steam self-cleaning technology (scale removal rate＞95%), passed CE/LFGB/RoHS certification, energy efficiency ≥96%, life span＞150,000 cycles. It is suitable for household fast water boiling, commercial multi-kettle parallel connection and laboratory constant temperature water bath scenarios, and supports stable operation in extreme environments (-20℃~500℃).
MOQ：1000PCS
Lead time：25days
Factory location: Zhongshan, Guangdong, China
Home appliances: household electric kettles, instant hot water dispensers, health kettles, portable travel kettles.
Industrial equipment: commercial water boilers, hotel/hospital constant temperature kettles, laboratory high temperature cleaning equipment.
Power range:
Conventional models: 800W–2200W (suitable for ordinary electric kettles and health kettles).
High-power models: 2200W–3000W (commercial-grade fast-boiling kettles).
Customizable: Supports on-demand power adjustment (voltage and load requirements must be provided).
Working voltage:
Standard voltage: 110V/220V single-phase AC (global power grid compatible, error ≤±5%).
Resistance value:
Conventional models: 5Ω–15Ω (matched by power and voltage, error ≤±3%).
Working temperature:
Continuous stability: 200°C–300°C (surface temperature, high-temperature resistant coating protection).
Short-term peak: 350°C (need to customize ceramic fiber insulation layer).
Material:
Food-grade stainless steel 304 (corrosion-resistant, easy to clean) or aluminum alloy (lightweight, thermal conductivity ≥ 200W/m·K) are base materials.
Surface treatment: Teflon (PTFE, anti-adhesion) or ceramic coating (high temperature resistant to 500°C).
Dimensions:
Diameter/side length: Φ80mm–Φ200mm (round/square design).
Thickness: 3mm–8mm (suitable for embedded pot bottom design).
Service life:
Conventional models: 10,000–15,000 hours (based on daily usage frequency).
High-power models: 15,000–20,000 hours (enhanced heat dissipation and coating protection).
Efficient heating:
The thermal conductivity of the aluminum alloy substrate is as high as 200W/m·K, and the temperature rises to 100°C within 3 minutes, and the energy consumption is 15% lower than that of traditional iron-chromium-aluminum heaters.
Precise temperature control:
Supports PID algorithm temperature control (±1°C accuracy), and is suitable for the constant temperature mode of smart health pots (such as making tea and milk powder).
Safe and durable:
The stainless steel surface is anodized, resistant to salt spray corrosion (tested ≥500 hours), and the life is extended by 30%.
Quick response:
No thermal inertia design, cooling to a safe temperature within 30 seconds after power failure, and adapting to high-frequency start-stop scenarios (such as continuous boiling water).
If you can provide accurate demand parameter information, we can give you a quote within 24 hours at the earliest.
