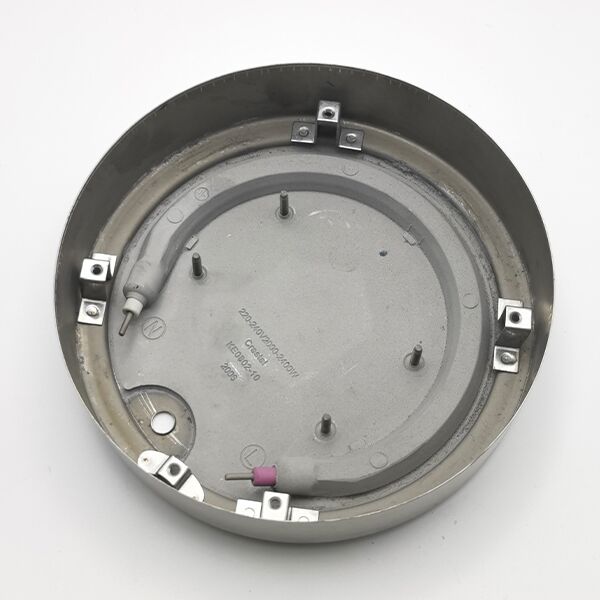

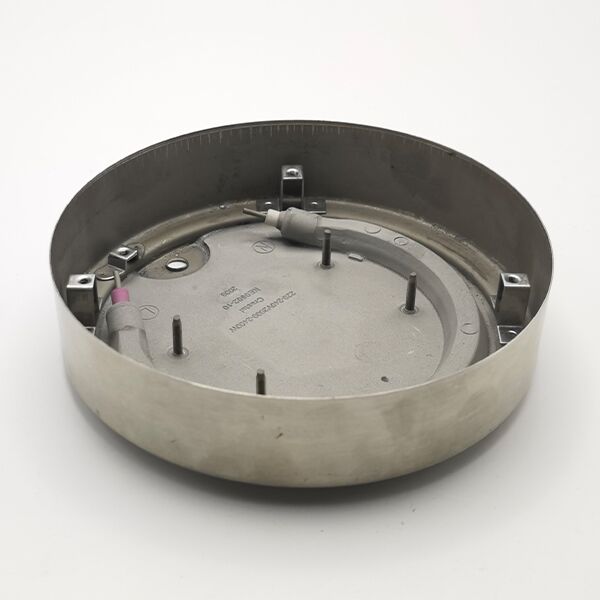

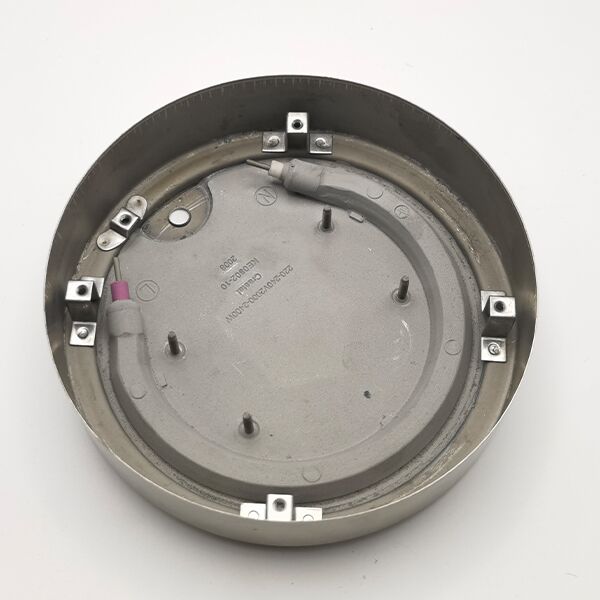

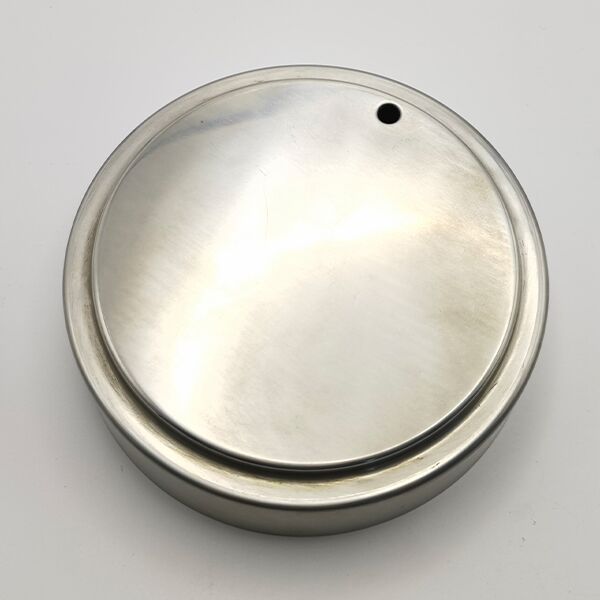

aluminium heating plate

製品用途

Home appliances: electric kettle, coffee machine, health pot, electric pressure cooker, air fryer.
Industrial equipment: commercial oven hot air module, laboratory constant temperature reactor, food processing drying equipment, heater heating module.

Product parameters

Material and structure:

Pure aluminum substrate: purity ≥ 99.5%, thermal conductivity 237 W/(m·K), surface can be nickel-plated or anodized (corrosion resistant).

Composite structure: aluminum plate + ceramic fiber insulation layer (reduce heat loss and improve energy efficiency).

Coating options: Teflon (PTFE) coating (anti-stick, high temperature resistant, suitable for frying and baking equipment).

Power range:

Household model: 500W–1500W (suitable for electric kettles, air fryers, small coffee machines, etc.).

Commercial model: 1500W–5000W (industrial ovens, baking equipment).

Working voltage:

Standard voltage: 110V/220V AC (error ±5%), suitable for household and commercial power supplies.

Low voltage adaptation: 12V–48V DC (customized portable devices).

Operating temperature:
Continuous stability: 200°C–400°C (the melting point of aluminum is 660°C, and the actual safe use temperature is ≤450°C).
Short-term peak: 500°C (needs to cooperate with heat dissipation design, such as air cooling or water cooling).

Dimensions:
Shape: flat, curved, customized with special shapes (suitable for pot bottom, oven cavity, etc.).
Thickness: 1mm–5mm (ultra-thin design adapts to compact space).

Lifespan and reliability:
Regular models: 3,000–8,000 hours (need to avoid long-term dry burning, it is recommended to configure temperature control protection).
