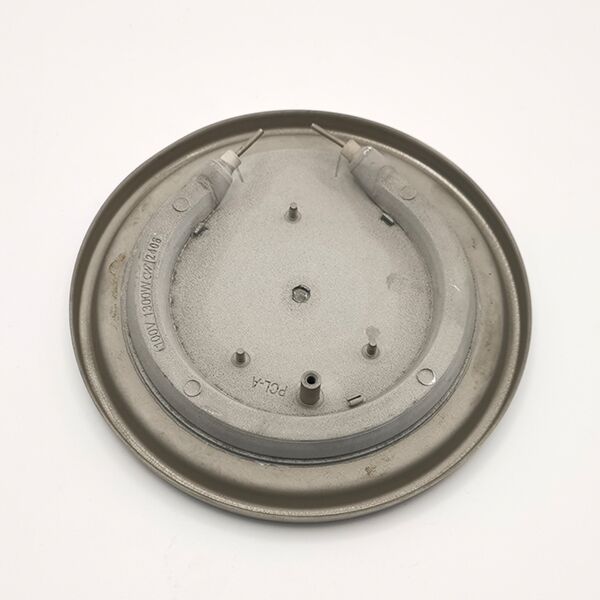

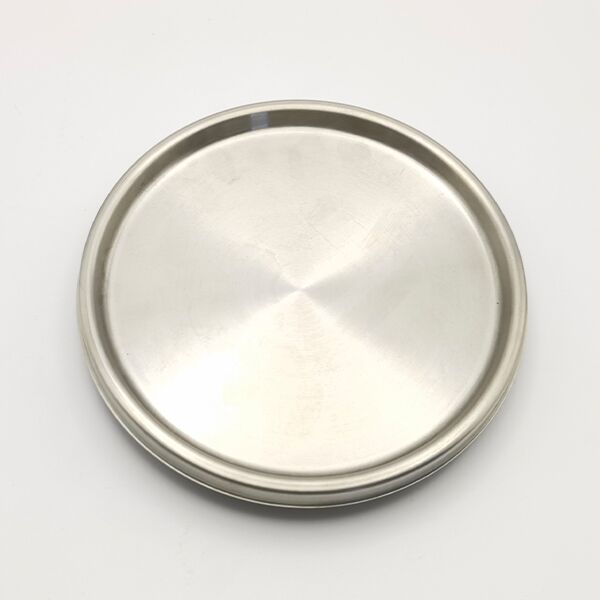

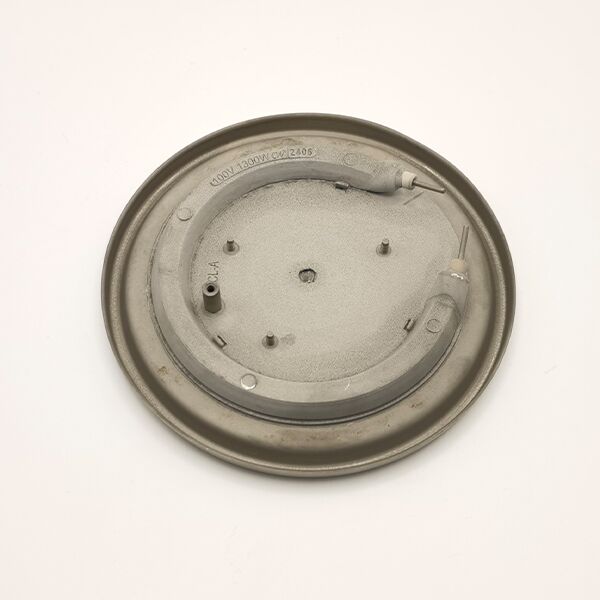

Egg Boiler Heating Plate——Precise temperature control and intelligent egg boiling solution
Embedded/desktop heating panel designed for families, restaurants and food processing plants, using food-grade 316L stainless steel + microcrystalline ceramic coating, suitable for 500W-3000W power range, temperature resistance up to 300℃ (short time), surface scratch resistance level ≥4H.
MOQ：1000PCS
Délai de livraison：25 jours
Emplacement de l'usine : Zhongshan, Guangdong, Chine
Home appliances: egg cookers, yogurt machines, electric kettles, baby food heaters.
Industrial equipment: food processing constant temperature systems, laboratory constant temperature incubators, commercial yogurt fermentation equipment.
Gamme de puissance :
Household model: 500W–1500W (suitable for electric kettles, small egg cookers).
Commercial model: 1500W–3000W (commercial steaming equipment, chain catering).
Customizable: Supports power adjustment on demand (voltage and load requirements must be provided).
Tension de fonctionnement :
Tension standard : 110V/220V AC monophasé (compatible avec le réseau électrique mondial, erreur ≤±5%).
Commercial adaptation: 380V three-phase AC (overload protection module needs to be customized).
Valeur de résistance :
Household model: 5Ω–20Ω (matched by power and voltage, error ≤±3%).
Commercial model: 2Ω–10Ω (high power density design).
Température de travail :
Continuous stability: 150°C–250°C (surface temperature, high temperature resistant coating protection).
Short-time peak value: 300°C (custom ceramic fiber insulation layer required).
Material:
Base material: food-grade stainless steel 304 (corrosion-resistant, easy to clean) or aluminum alloy (lightweight, thermal conductivity ≥ 200W/m·K).
Surface treatment: Teflon (PTFE, anti-adhesion) or ceramic coating (high temperature resistant to 500°C).
Dimensions :
Diameter/side length: Φ80mm–Φ200mm (round/square design).
Thickness: 3mm–8mm (supports ultra-thin embedded installation).
Durée de vie :
Household model: 10,000–15,000 hours (based on daily frequency of use).
Commercial model: 20,000–30,000 hours (enhanced heat dissipation and coating protection).
Efficient heating:
The aluminum alloy substrate has high thermal conductivity, and the temperature rises to 150°C within 2 minutes, and the energy consumption is 20% lower than that of traditional iron-chromium-aluminum heaters.
Precise temperature control:
Supports PID algorithm temperature control (±1°C accuracy), suitable for smart egg cookers and constant temperature cooking equipment.
Safe and durable:
Anodized stainless steel surface, resistant to salt spray corrosion (test ≥500 hours), life extended by 30%.
Quick response:
No thermal inertia design, cools to a safe temperature within 30 seconds after power failure, and is suitable for high-frequency start-stop scenarios.
Flexible customization:
Supports power, voltage, and shape adjustment, optional explosion-proof certification (Ex d IIB T4), IP protection level (such as IP68)
Si vous nous fournissez des informations précises sur les paramètres de la demande, nous pourrons vous donner un devis dans les 24 heures au plus tôt.
