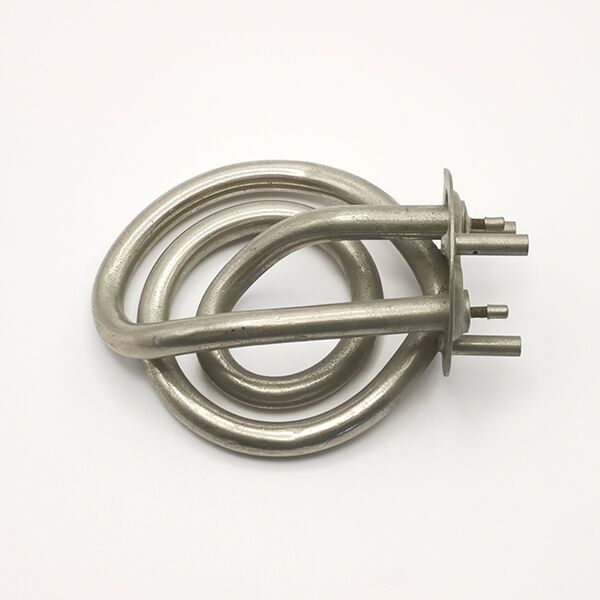

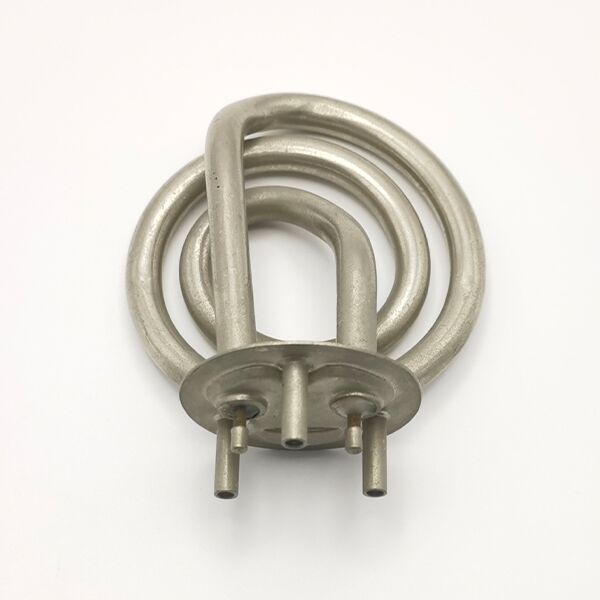

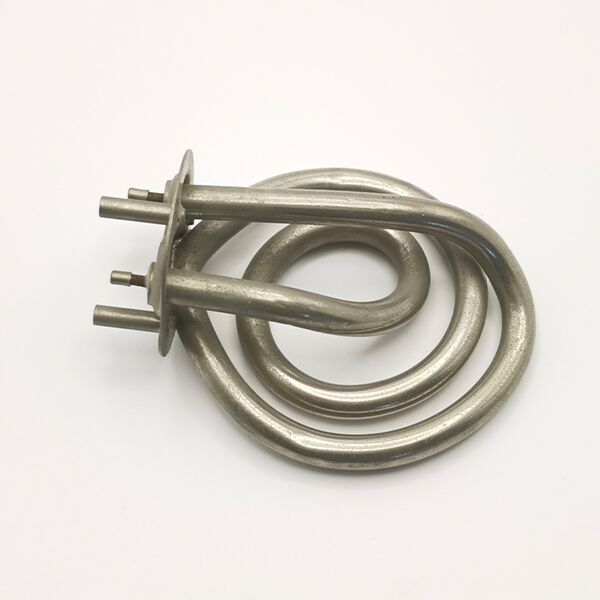

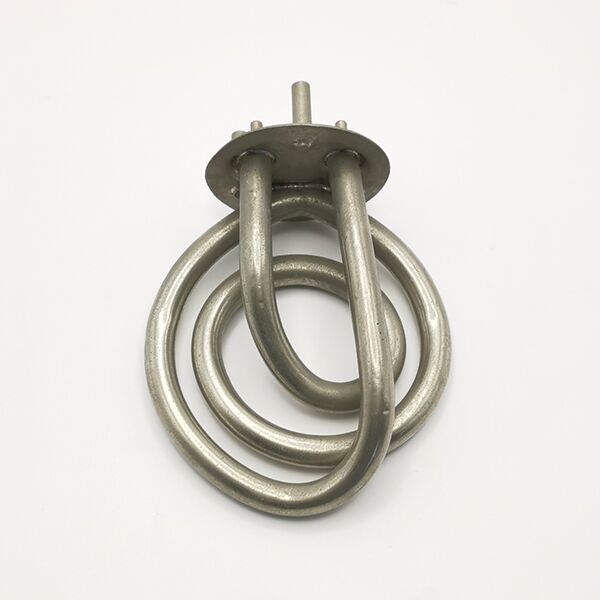

Soymilk Maker heating tube

Produktanwendungen

Home appliances: household soymilk maker, wall breaker, juicer, health pot.

Produktparameter und Spezifikationen

Power range: 1.5kW–3kW (customizable to 5kW, suitable for commercial continuous production of soy milk machines).

Working voltage: 220V/110V single-phase AC or 380V three-phase AC (global power grid compatible, error ≤±5%).

Resistance value: 5Ω–30Ω (accurately matched by voltage and power, error ≤±3%).

Working temperature: 120°C for continuous and stable operation (short-term tolerance of 150°C, food-grade stainless steel).

Material:

Heating element: food-grade stainless steel 316L (corrosion-resistant, anti-protein/fat deposition).

Insulating layer: high-purity magnesium oxide ceramic (hydrolysis-resistant, thermal shock-resistant, and anti-leakage).

Dimensions: length 100mm–300mm, diameter Φ8mm–15mm (supports U-shaped, spiral, or flat customization).
Service life: 20,000–50,000 hours (based on water quality and cleaning frequency, anti-scaling coating extends life).
Customizable service: supports power, voltage, length adjustment, anti-scaling coating, explosion-proof certificatio,n and other requirements.

zentrale Vorteile

Efficient anti-scaling: magnesium oxide ceramic insulation layer + food-grade stainless steel, anti-scaling/calcium deposition in soy milk, reducing cleaning frequency.
Fast heating: thermal efficiency ≥92%, heating 1.5of L water in 3–5 minutes, suitable for soy milk boiling and homogenization requirements.
Precise temperature control: ±2°C temperature control accuracy, supports segmented heating (such as preheating/boiling/insulation) to prevent sticking.
Corrosion-resistant design: 316L stainless steel is resistant to the acidic environment of soy milk (pH 4–6), extending life by more than 30%.
Safe and reliable: IP68 waterproof rating, overheating protection (≥120°C automatic power off), in line with food machinery safety standards.
Compact Adaptation: Ultra-thin design seamlessly embedded in the soy milk machine, suitable for home/commercial models.
Intelligent Compatibility: Supports PWM power adjustment, and is suitable for IoT soy milk machine remote control (APP temperature control).
Global Adaptation: Compatible with 110V/220V voltage, and adapted to European, American/Asian market standards.
