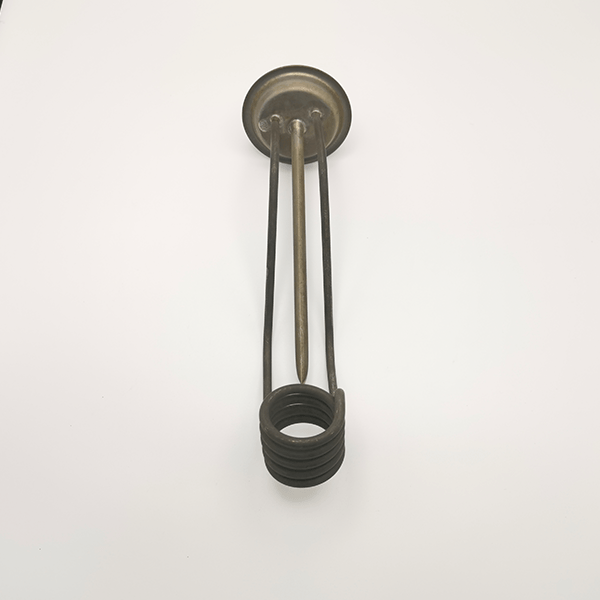

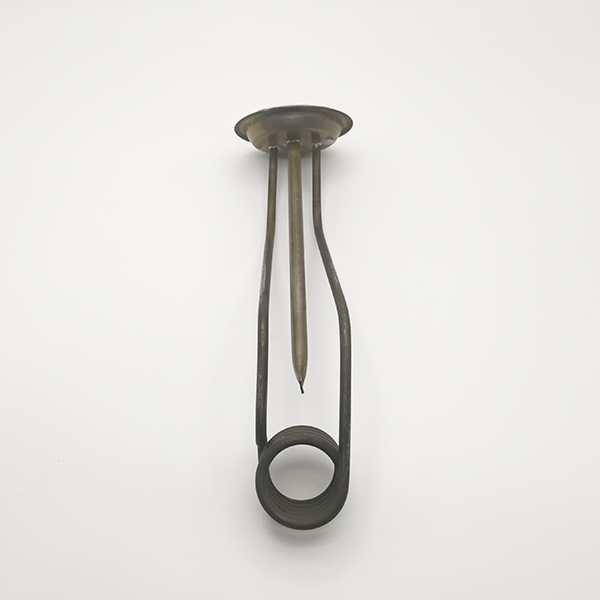

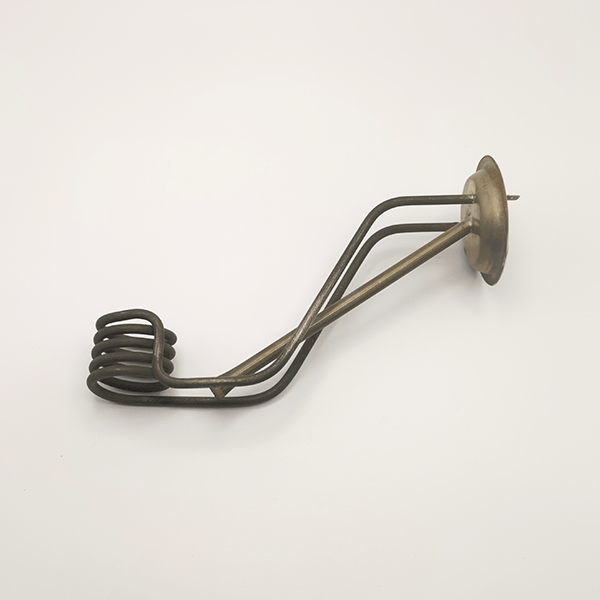

12- 380V Wasserheizungsrohr

Application scenarios

Industrial boiler circulation heating, water treatment system constant temperature control, chemical liquid constant temperature reactor, food processing high temperature sterilization equipment, electroplating tank heating module, textile printing and dyeing heat setting machine, papermaking steam generator, ship ballast water treatment, ground source heat pump auxiliary heat exchange, new energy battery thermal management (PTC heating), steel plant cooling water circulation system.

Parameters and value range

Power range: 12kW~30kW (customizable, suitable for industrial circulating water systems and commercial hot water boilers with medium and high frequency requirements)
Working voltage: 380V three-phase AC (industrial-grade design, compatible with global three-phase electricity standards)
Resistance value: 0.04Ω~0.25Ω (matching voltage and power, supporting customization of stainless steel armor heating wire)
Working temperature: 850°C (instantaneous temperature resistance, ceramic fiber insulation layer suitable for continuous high-temperature fluid heating)
Material: No Stainless steel 316L armored heating wire, ceramic fiber insulation layer (customizable high-pressure sealing structure)
Dimensions: length 500mm~3m, diameter 10mm~50mm (supports threaded interface and special-shaped pipe processing)
Service life: 50,000~80,000 hours (anti-oxidation coating + ceramic fiber thermal shock resistance, suitable for continuous high-pressure operation)

Product advantages and features

Industrial-grade pressure resistance: 10bar high-pressure stable operation, suitable for ship ballast water treatment/steel plant cooling water circulation system.
Three-phase high-efficiency heating: 380V three-phase power design, thermal efficiency ≥96%, 3 seconds to 850°C, suitable for electroplating tank/textile heat setting machine high-frequency requirements.
Explosion-proof safety: ceramic fiber insulation layer + IPX7 waterproof, suitable for chemical liquid heating and humid environment (such as electroplating workshop).
Flexible adaptation: support threaded interface and special-shaped processing, meet the non-standard customization needs of food sterilization/papermaking steam generator.
Long-term anti-corrosion: 316L stainless steel resists chloride ion corrosion, magnesium rod sacrificial anode protection, life is increased by 50%.
Energy-saving and reliable: Energy efficiency ≥ 96%, reducing the operating cost of industrial steam systems, and adapting to heat pump assisted heat exchange scenarios.
Fast delivery: Standardized production line mass production, order completion within 25 days, adapting to the needs of industrial equipment batch procurement.
